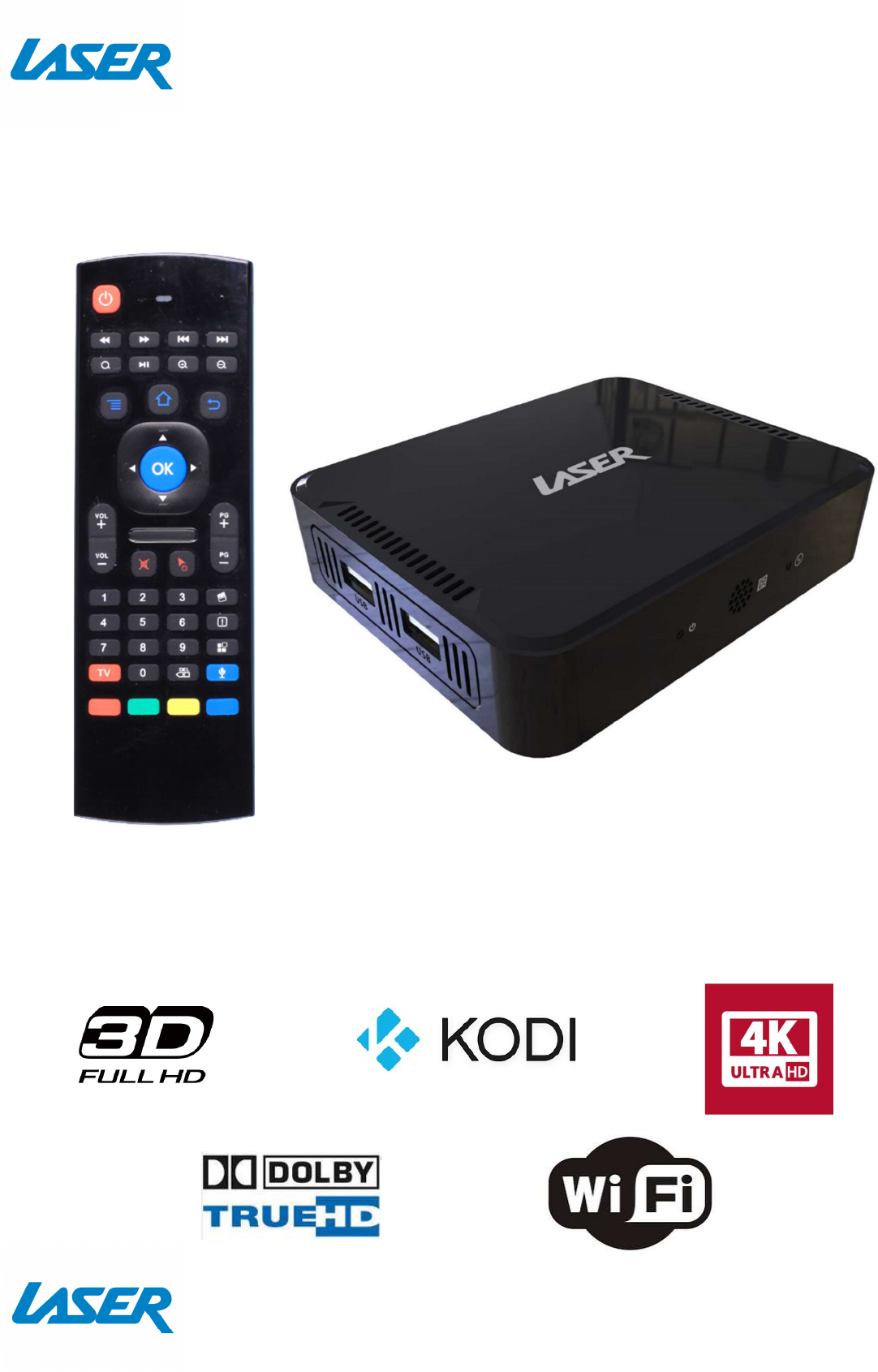

QUICK USER MANUAL MMC-P20plus 4K SMART MEDIA PLAYER 1
Index QUICK USER MANUAL MMC-P20plus The Remote control Wireless Screen Pointer Player outputs Connecting to TV Connecting to the Internet Cable connection to the internet using a Modem/Router Wi-Fi connection to the internet using a Modem/Router The home Screen The apps Centre Smart Apps Settings Feature overview Calibrating the mouse FAQ Specifications 3 4 5 6 6 7 7 10 11 12 13 14 15 16 16 IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS - Read all instructions carefully before use.
QUICK USER MANUAL THE REMOTE CONTROL 10 1 2 3 3 4 6 7 8 5 7 2 5 4 6 1 11 8 9 10 11 12 13 MMC-P20plus Power ON, Power OFF Rewind, Fast forward Previous, Next Search / Play Pause / Zoom In and Out Menu, Home, back page Navigate UP, DOWN, LEFT, RIGHT ENTER or CONFIRM (OK) Volume UP or DOWN Mute Air Mouse Calibration (See FAQ page) Numerical keys TV Navigation Type (Standard via remote buttons or control pointer using remote buttons) LED Indicator Channel UP or DOWN Stop / Start / Apps scre
QUICK USER MANUAL MMC-P20plus Note: Press and hold the ALT key to operate the dual function keys which are marked with BLUE markings. For example: To enter the “@” symbol hold the ALT button and press the down arrow button. WIRELESS SCREEN POINTER + Connect the USB dongle to operate the on screen pointer, a virtual mouse, which you can use to navigate by simply pointing your remote at your TV screen.
QUICK USER MANUAL MMC-P20plus THE PLAYER OUTPUTS SIDE PANEL USB Ports REAR PANEL On Off Button Power 3.
QUICK USER MANUAL CONNECTING TO TV BEST – via HDMI Cable MMC-P20plus GOOD – via RCA Cables CONNECTION TO INTERNET BEST – Direct Connection (to a Modem/Router) GOOD – Wi-Fi MODEM Note: Network cables not supplied WIRELESS MODEM Note: An Ethernet cable internet connection is recommended for streaming HD and FHD video.
QUICK USER MANUAL MMC-P20plus Cable connection to the internet using a Modem/Router - Connect the network cable to the Media Player and your Modem/Router. - In most cases your Modem/Router will automatically assign network settings to your media player and display the screen below. Then click OK.
QUICK USER MANUAL MMC-P20plus WIFI ICON (ALTERNATIVE) - From the home screen press "Wi-Fi". - A list of available Wi-Fi connections will be displayed. See the example screen below. Note: The Ethernet cable musts be unplugged. Note: If the wireless network is not encrypted, you can connect to it directly.
QUICK USER MANUAL MMC-P20plus Then the interface shows up as below picture. Choose Forget button to forget this WIFI information.
APP OVERVIEW QUICK USER MANUAL MMC-P20plus The Home screen Note. Some subscription based Apps may require a mouse or keyboard for setup and operation. You can connect a wired mouse and keyboard if this is more comfortable for you. Weather Use this handy app to monitor the weather and to check forecasts.
The Apps Centre QUICK USER MANUAL FileBrowser Browse your files Media Player Play Media through the device MMC-P20plus My APPs View app the installed apps + Add apps to the Apps Centre screen 11
Smart Apps QUICK USER MANUAL Play Store Access the Google Play Store. Purchase and Download apps, music, movies and more FaceBookFaceBook Let’s you catch up on your Facebook pages and posts. Please note: A mouse may be required for use with this app SBS on Demand let’s you catch up on the best of SBS TV Please note: A mouse may be required for use with this app Stan Stan is an Australian streaming company which offers subscription to selected movies and TV shows.
Settings QUICK USER MANUAL MMC-P20plus Note: To set up a new Wi-Fi or BLUETOOTH connection, please select the ADVANCE icon, followed by SETTINGS then WIFI. Reviewing a previous connection can be accessed directly via the WIFI icon.
QUICK USER MANUAL FEATURE OVERVIEW 8Core GPU & QUAD Core CPU Fast Processor & memory designed for video With a Quad core 2Ghz processor & 8GB storage/1GB flash of processor memory, movies will play smoothly & load faster Digital Surround Sound All sound formats from 2 channel stereo to 7.1 Dolby and DTS. Also Flac lossless HD audio is supported.
QUICK USER MANUAL MMC-P20plus Note: Although this android Media Player can support all the above features, you must have the correct hardware and compatible video files. For example, if you would like to playback a 3D movie you must have a 3D TV and a 3D movie file first, in order for this feature to work correctly. CALIBRATING THE AIR MOUSE If your screen air moue pointer does not line up accurately on your TV screen you may need to calibrate your air mouse.
SPECIFICATIONS Interface Power Supply Dimensions QUICK USER MANUAL MMC-P20plus Composite AV Out (Jack to RCA) HDMI USB x 2 LAN Micro SD Card 5V 11 x 9 x 2.5cm Warranty Against Defects Laser Corporation Pty Ltd (“Laser”) warrants your new product to be free from defects in materials and workmanship for 12 months, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
