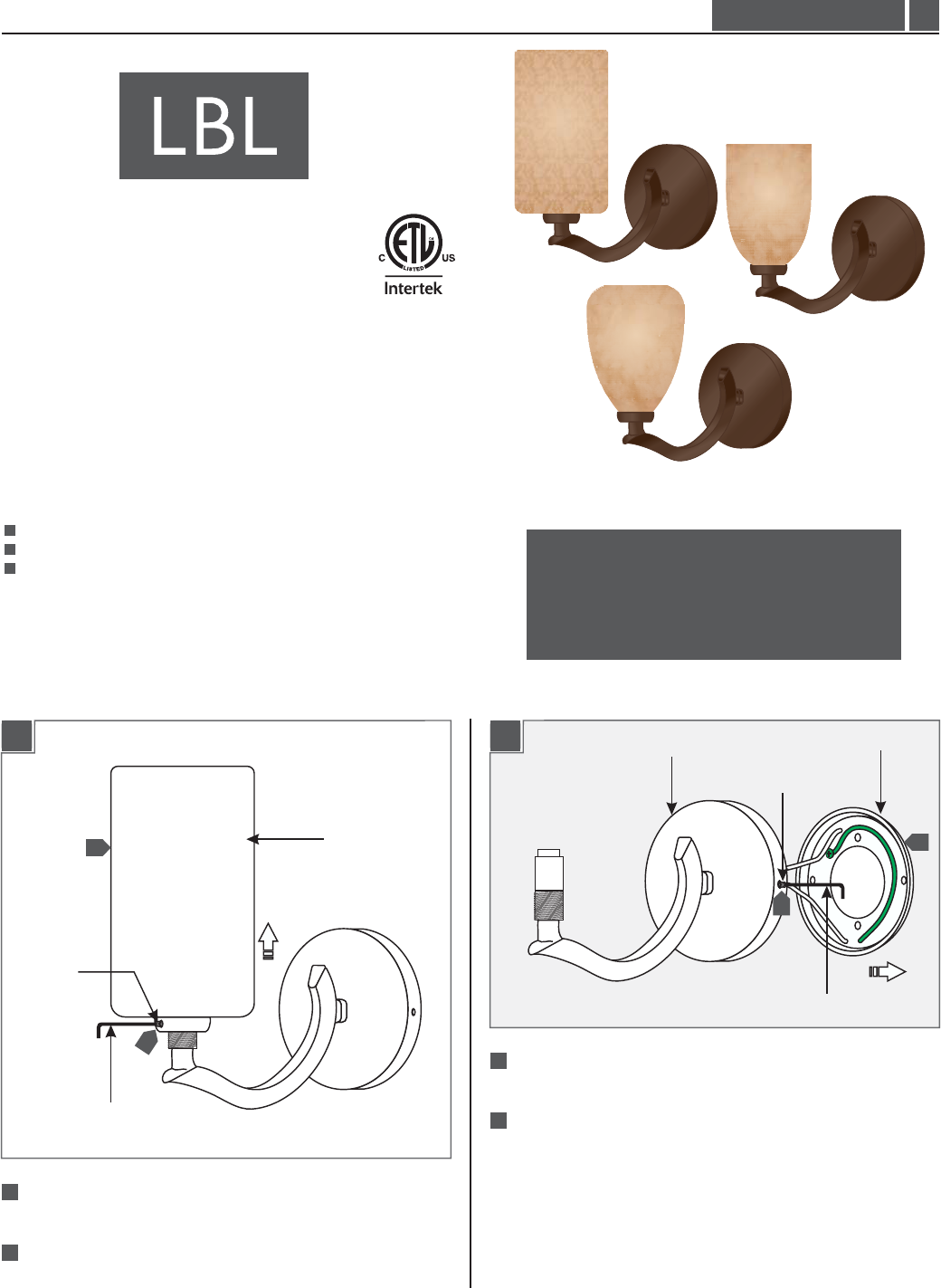

Installation Instructions for

1.4

Install the Fixture

Loosen the M3 set screw on side of the(Do Not Remove)

onyx shade with the 1.5MM Allen wrench provided.

Remove the onyx shade.

M3 SET

SCREW

1.5MM ALLEN WRENCH

ONYX SHADE

BACKPLATE

CANOPY

M3 SET SCREW

1.5MM ALLEN WRENCH

Loosen the two M3 set screws on side of(Do Not Remove)

the canopy with the 1.5MM Allen wrench.

Remove the backplate.

GP I :ENERAL RODUCT NFORMATION

This product can mount to either a 4" square electrical box with

round plaster ring or an octagon electrical box.

This product is suitable for indoor dry locations only.

This product can be dimmed with a standard incandescent dimmer.

This instruction shows a typical installation.

This instruction is for the following models:

Onyx Cylinder Wall (HW176ON_2G60)

Onyx Dome Wall (HW177ON_2G60)

OnyxTeardrop Wall (HW178ON_2G60)

Onyx Wall

HW17_ON_2G60

980ONYXW

1A 1B

CAUTION - RISK OF FIRE

This product must be installed in accordance with

the applicable installation code by a person familiar

with the construction and operation of the product

and the hazards involved.

Use minimum 90°c supply conductors.

Wall

Summary of content (4 pages)

PAGE 1
Installation Instructions for 980ONYXW Onyx Wall HW17_ON_2G60 1.4 Wall GENERAL PRODUCT INFORMATION: This product can mount to either a 4" square electrical box with round plaster ring or an octagon electrical box. This product is suitable for indoor dry locations only. This product can be dimmed with a standard incandescent dimmer. This instruction shows a typical installation.
PAGE 2
1C 1E CANOPY #8-32 SCREW M3 SET SCREW 5 6 7 BACKPLATE 11 6 ELECTRICAL BOX HOLE 1.5MM ALLEN WRENCH 5 Line up two backplate holes with the electrical box holes. 6 Mount the backplate to the electrical box with the two #8-32 screws provided. 7 Connect the green wire to a suitable ground in accordance with local electrical codes. 11 1D 8 9 8 Connect the white fixture wire to the neutral power line wire with a wire nut.
PAGE 3
Install the Lamp & Shade 2B 2A LAMP 1 SOCKET ONYX SHADE M3 SET SCREW 2 1.5MM ALLEN WRENCH NOTE: Use only your fingers and a soft cloth to install the lamp. 2 Use MAX 120 Volt, 60 Watt Type T4, G9 Base, Bi-Pin Halogen Lamp. 1 Push the lamp pins completely into the socket holes. 3 Replace the onyx shade onto the socket housing and tighten the M3 set screw on side of the onyx shade with the 1.5MM Allen wrench.
PAGE 4
SAVE THESE INSTRUCTIONS! 7400 Linder Ave, Skokie, IL 60077 800.323.3226 - 847.626.6300 www.lbllighting.com © 2014 LBL Lighting.All rights reserved.The "LBL Lighting" graphic is a registered trademark of LBL Lighting. LBL Lighting reserves the right to change specifications for product improvements without notification.
