Installation Guide

1
Installation Instructions for
Savino Wall
980SAVINOW
GP I :ENERAL RODUCT NFORMATION
These fixtures are intended to be installed utilizing
NEC compliant junction boxes.
This product is suitable for damp locations.
This product may be dimmed with a low voltage electronic dimmer.
This instruction shows a typical installation.
1.0
W 1068, WS1067S
CAUTION RISK OF FIRE-
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.

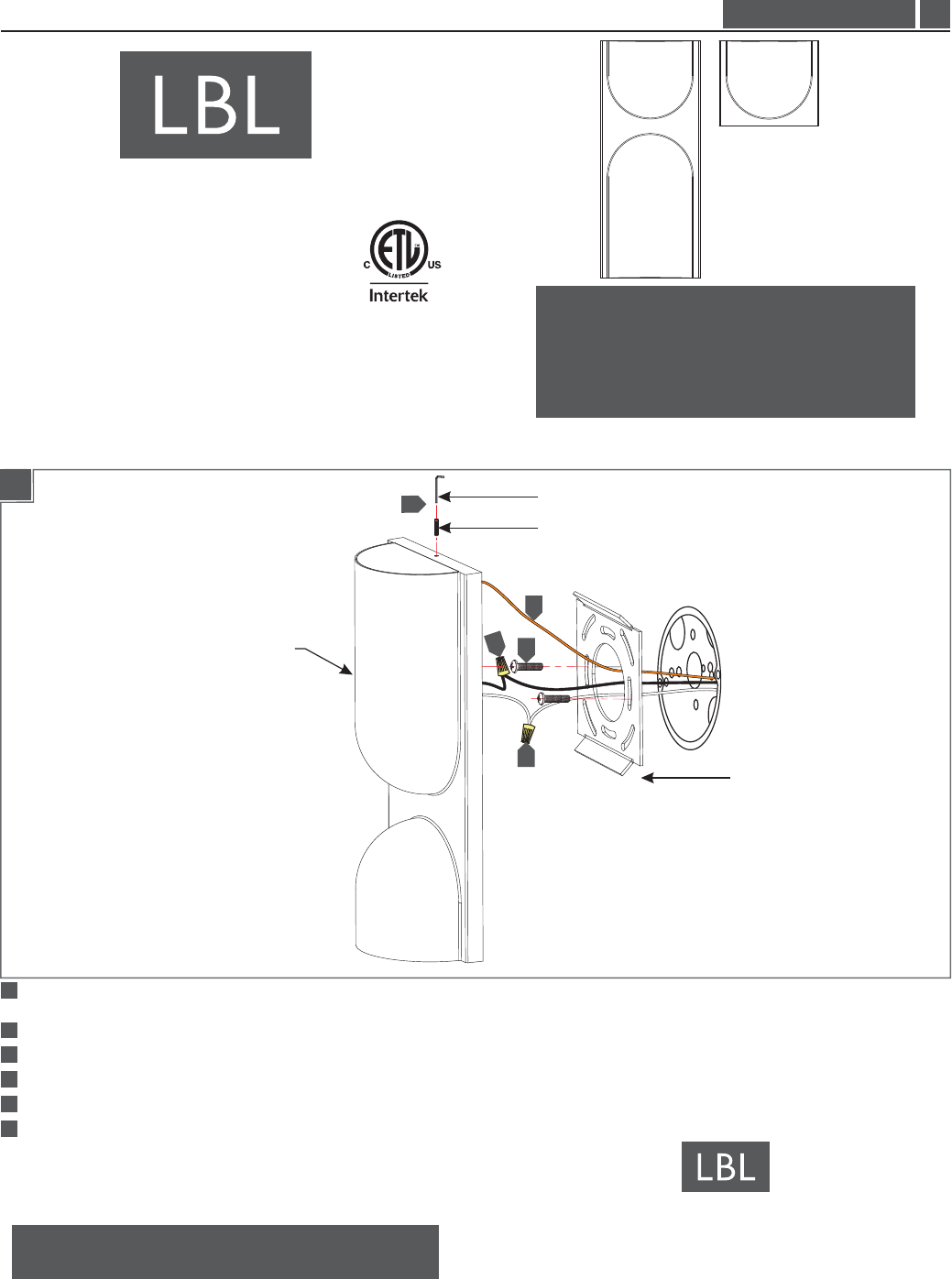

Wall
Remove the fixture screws located on the top and bottom of the fixture base using the provided Allen wrench, then remove the mounting
plate from the fixture base.
Install the mounting plate onto the electrical box with the two #8-32 screws provided.
Connect the fixture to suitable ground in accordance with local electrical codes.
Connect the white fixture wire to the neutral power line wire with a wire nut.
Connect the black fixture wire to the hot power line wire with a wire nut.
Properly place all wires and wire nut connections into the electrical box, mount the fixture back onto the mounting plate, and reinstall
fixture screws (reversal of step 1).
1
2
1A
Install the Fixture
3
4
5
6
SAVETHESE INSTRUCTIONS!
© 2018 Lighting.All rights reserved.The " Lighting" graphic is aLBL LBL
registered trademark of Lighting. Lighting reserves the right toLBL LBL
change specifications for product improvements without notification.
7400 Linder Ave, Skokie, 60077IL
800.323.3226 - 847.626.6300
www.lbllighting.com
A Generation Brands Company
4
5
1
MOUNTING PLATE
FIXTURE
FIXTURE SCREW
ALLEN WRENCH
2
3
