Installation Guide

863 Series Outlet Boxes

For Wood Floors

INSTALLATION INSTRUCTIONS

Installation Instruction No.: 1 006 111 – February 2007

Wiremold / Legrand electrical systems conform to and should be

properly grounded in compliance with requirements of the current

National Electrical Code or codes administered by local authorities.

All electrical products may present a possible shock or fire

hazard if improperly installed or used. Wiremold / Legrand electrical

products may bear the mark as UL Listed and/or Classified and should

be installed in conformance with current local and/or the National

Electrical Code.

IMPORTANT: Please read all instructions

before beginning.

Products Covered: 863DRGFICOM, 863DRGFICOMAL, 863DPCOM, & 863DPCOMAL

Applications: This unit is for wood floors with: sunbflooring with carpet and padding, or subflooring with hardwood or linoleum floor covering

Ground Wire

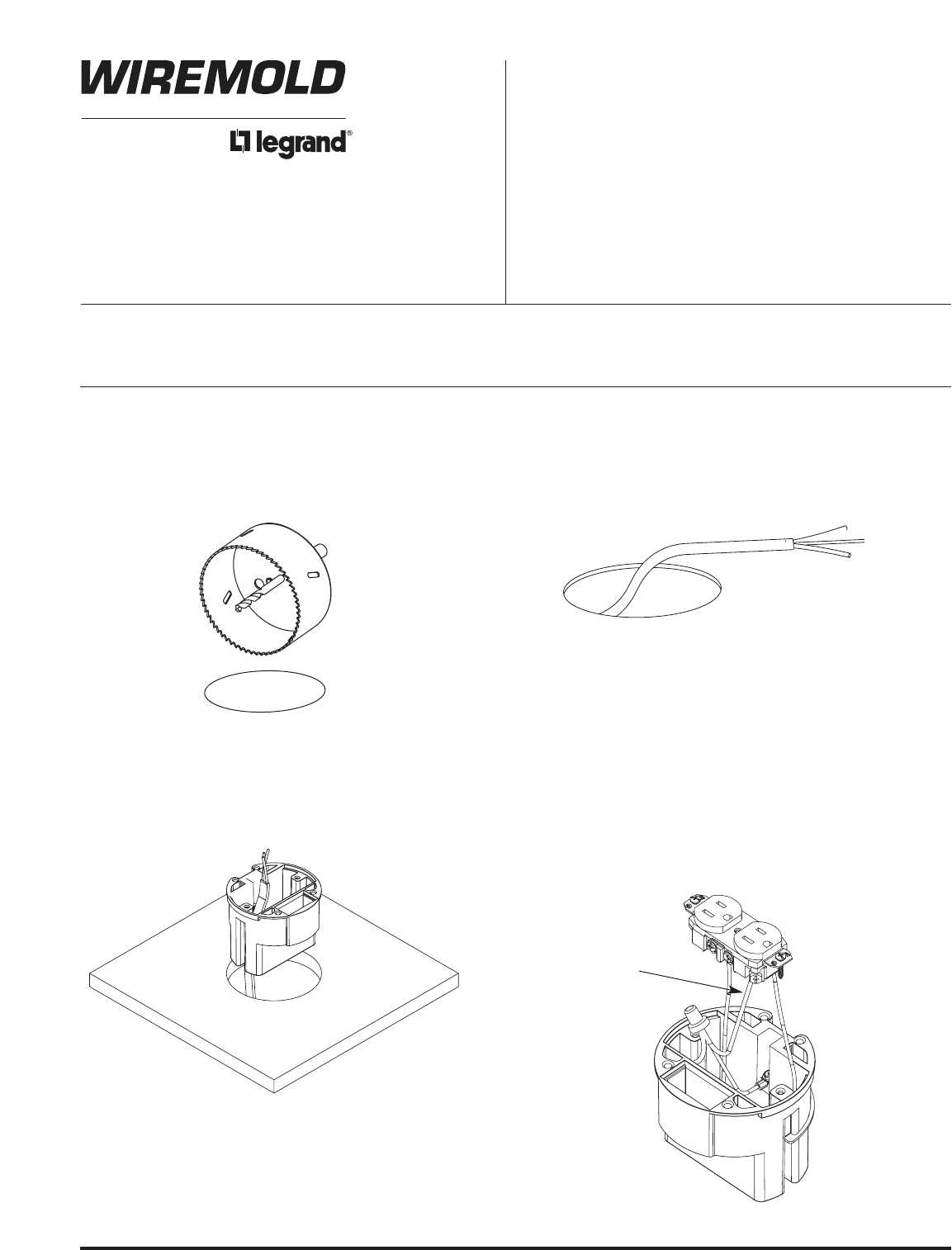

OUTLET BOX INSTALLATION:

1. Determine the floor box location. (Make sure the

placement does not interfere with obstructions below

such as floor joists, HVAC duct, light fixtures, etc.).

Drill a hole through the flooring with either a 4 3/8" or

4 1/2" [111mm - 114mm] hole saw.

2. Pull the nonmetallic sheathed cable approximately

12" [305mm] up and through the hole.

3. Pull the nonmetallic sheathed cable into the box using

the knockout or strain relief feature.

4. Remove any plaster ears from the receptacle before

wiring and attaching the receptacle to the box.

Note: The ground wire in the box, the sheathed cable,

and a pigtail from the receptacle all need to be

connected to properly ground this box and cover.

PAGE 1
Wiremold / Legrand electrical systems conform to and should be properly grounded in compliance with requirements of the current National Electrical Code or codes administered by local authorities. All electrical products may present a possible shock or fire hazard if improperly installed or used. Wiremold / Legrand electrical products may bear the mark as UL Listed and/or Classified and should be installed in conformance with current local and/or the National Electrical Code.
PAGE 2
863 SERIES FLOOR BOX APPLICATIONS: 5. Place the gasket support plate over the receptacle and attach it with supplied #6 round head screw (duplex style receptacle only). 6. Pull data cables through the box, and attach the cables to supplied connectors. Insert the connectors with cable into the supplied bezel. - Snap the bezel into the round box. (Note: Notches in the bezel have to face out – see figure 1). Notches Connectors 7.
