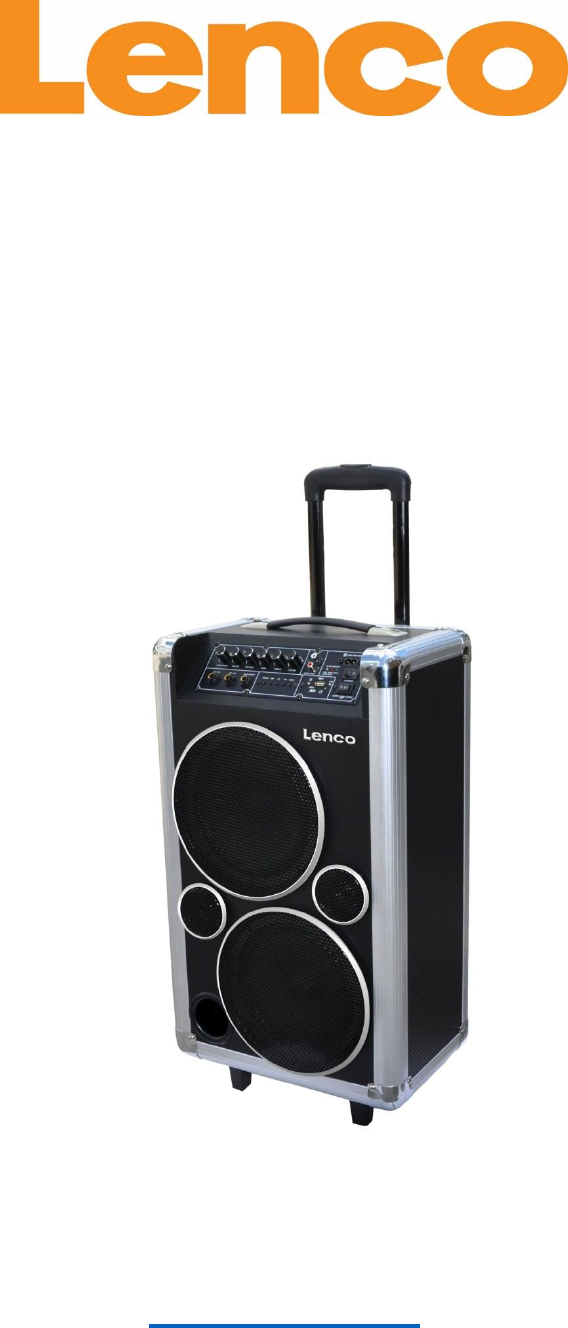

PA-95 Portable Sound System with Bluetooth® USER’S MANUAL www.lenco.
Warning 1. 1.WARNING: The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. 2. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR 3.
Thank you very much for buying this Mobile Battery Bluetooth Speaker! In order to make the speaker function best, please take time to read this instruction manual carefully before use. It will help you to know every function better. Please keep well this user’s manual for longtime reference. CAUTION To avoid failure and damage when using this device, please read this user’s manual and make sure that you fully understand the safety and operation instruction.
FEATURES 1. Portable Sound System with Bluetooth 2. Support different Power Supply modes: AC 230V/ External DC 12V/ DC 12V (battery) 3. Built-in rechargeable lead-acid battery for outdoor use 4. With 1*Guitar Input with Guitar volume control 5. With 2 jacks for wired microphone 6. With auto-detected USB & SD card reader function for MP3 decoding SPECIFICATIONS Power Consumption: 60W (Max.
Diagram 2: COMPUTER Flat panel TV DVD/CD BLUETOOTH Press the INPUT SWITCHING Button until the BLUETOOTH Indicator blinks. The BLUETOOTH function is ON. Turn on the BLUETOOTH in device and start searching for this BLUETOOTH speaker. You will find device name of LENCO PA-95. Select this to link to the speaker. The Indicator will stop blinking and light up in BLUE color when you are successfully linked. After the linking, you can start to play music from your device.
BATTERY PANEL This panel is to be opened ONLY when replacing a new battery by qualified service centers. To avoid any potential dangers and damages to the battery, please make sure that the new battery are of the same specification with the original battery. Please follow the below steps properly: 1. Remove the 6 outlying screws and take out the panel. 2. Take out the battery and press the clinching fasteners to unplug the lead wires. Please work carefully to avoid damages. 3.
SPEAKER OPERATION INSTRUCTIONS 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. Guitar Volume Mic Volume Mic Echo Bass Volume Control Treble Volume Control Master Volume Control Audio Input(Connect with Signal cable to play music from your device) Power Indicator and Low Voltage Indicator: It keeps on when the unit is powered on. When the unit is in low voltage, it begins to blink. Charging Indicator: When charging, the CHG indicator blinks in RED.
Operation Reference Power AC Power Source Power Indicator CHG Indicator Power Management Unit Operation Powered by AC and Battery Charged Will AC INPUT AC ON ON Refer YES REMARK go into standby and charging cease after no signal input for 15 minutes AC INPUT OFF OFF *OFF Not applicable Switch AC Power switch to OFF, and then AC ON to power on the system again.
Mode USB/SD Indicator At Pause, it is ON; At Play, it is Blink At Pause, it is ON; At Play, it is Blink ON OFF USB SD AUX IN Bluetooth AUX IN/BT Indicator OFF OFF ON Blink TROUBLESHOOTING Troubles Possible Reasons Trouble Shootings Power Indicator OFF and NO sound coming out 1. 2. AC Power Button is still OFF Battery run out of power 1. 2. Power Indicator ON But NO sound coming out 1. Wrongly connect the RCA or 3.5mm Audio input. Master Volume is in minimum. 1.
SERVICE AND SUPPORT For information: www.lenco.com Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly. Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires. This device is not suitable for professional use.
