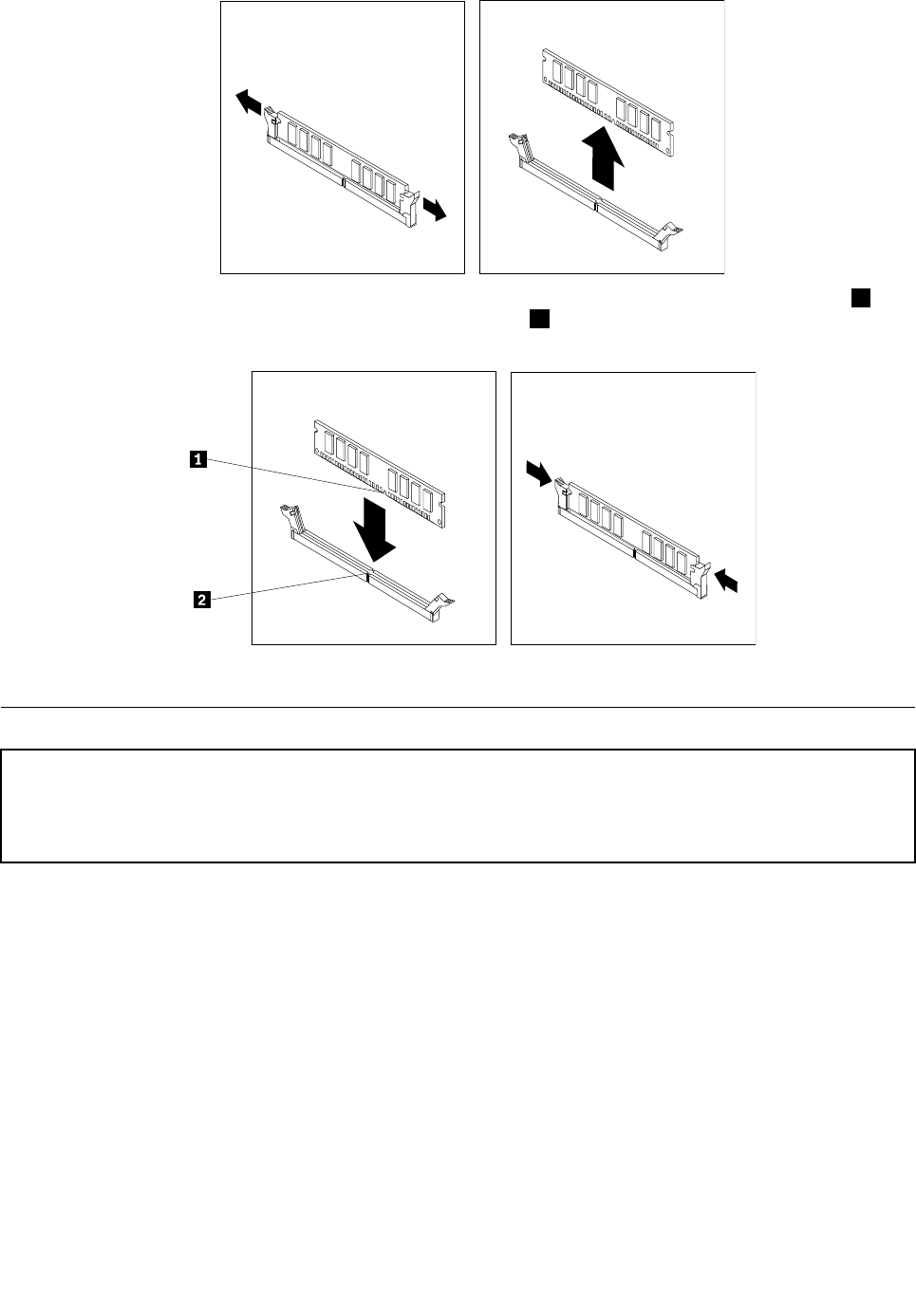

4.Positionthereplacementmemorymoduleoverthememoryconnector.Makesurethatthenotch1on

thememorymodulealignscorrectlywiththeconnectorkey2onthesystemboard.Pushthememory

modulestraightdownintothememoryconnectoruntiltheretainingclipsclose.

5.Goto"CompletingtheFRUreplacement"onpage113.

ReplacingtheCMOSbattery

Attention

Donotopenyourcomputerorattemptanyrepairbeforereadingandunderstandingthe"Importantsafetyinformation"

intheThinkCentreSafetyandWarrantyGuidethatcamewithyourcomputer.ToobtainacopyoftheThinkCentre

SafetyandWarrantyGuide,goto:http://www.lenovo.com/support

ThissectionprovidesinformationonhowtoremoveandreplacetheCMOSbattery.

ToremoveorreplacetheCMOSbattery,dothefollowing:

IftheCMOSbatteryfails,thedate,time,andcongurationinformation(includingpasswords)arelost.An

errormessageisdisplayedwhenyouturnonthecomputer.

Important

Referto"Safetynotices(multi-lingualtranslations)"onpage6forinformationaboutreplacinganddisposing

ofthebattery.

CAUTION:

Whenreplacingthelithiumbattery,useonlyPartNumber33F8354oranequivalenttypebattery

recommendedbythemanufacturer.

1.Removethecomputercover.See"Removingthecover"onpage94.

98ThinkCentreHardwareMaintenanceManual
