Notes:

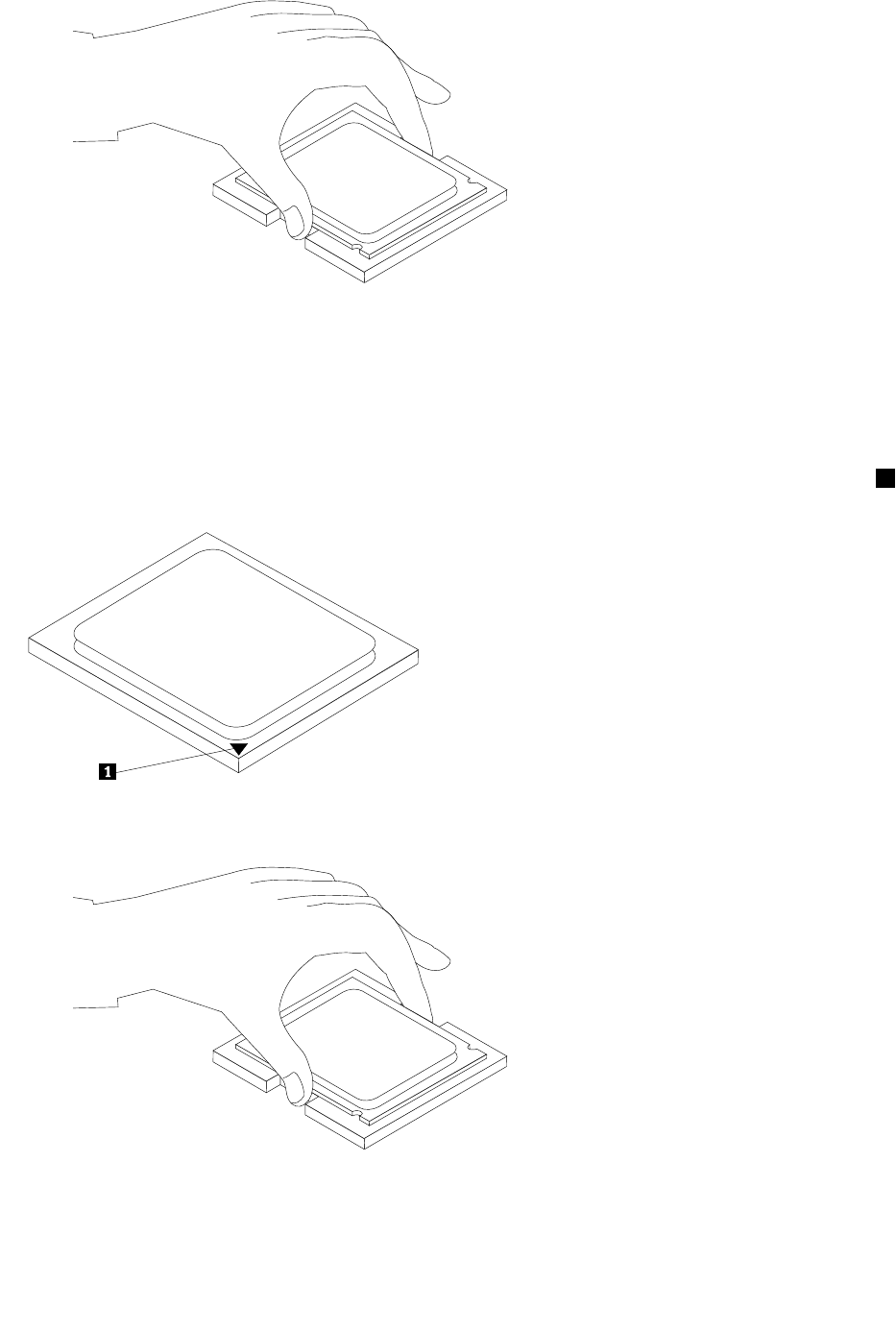

a.Yourmicroprocessorandsocketmightlookdifferentthantheoneillustrated.

b.Notetheorientationofthemicroprocessorinthesocket.Lookforthesmalltriangleononecornerof

themicroprocessor.Thisisimportantwhenreinstallingthemicroprocessoronthenewsystemboard.

c.Donotdropanythingontothemicroprocessorsocketwhileitisexposed.Thesocketpinsmustbe

keptascleanaspossible.

15.Holdingthemicroprocessorwithyourngers,positionthemicroprocessorsothatthesmalltriangle1on

onecornerisalignedwiththecorrespondingtriangleonthesocketonthenewsystemboard.

16.Makesurethatthesmallhandleisintheraisedposition.

17.Lowerthemicroprocessorstraightdownintothesystemboardsocketofthenewsystemboard.

18.Lowerthesmallhandletosecurethemicroprocessorinthesocket.

19.Positiontheheatsinkonthemicroprocessorsocketandthenpositiontheclampontheplasticretention

bracket.Pivotthehandletoclamptheheatsinktotheplasticretentionbracket.

76ThinkCentreHardwareMaintenanceManual
