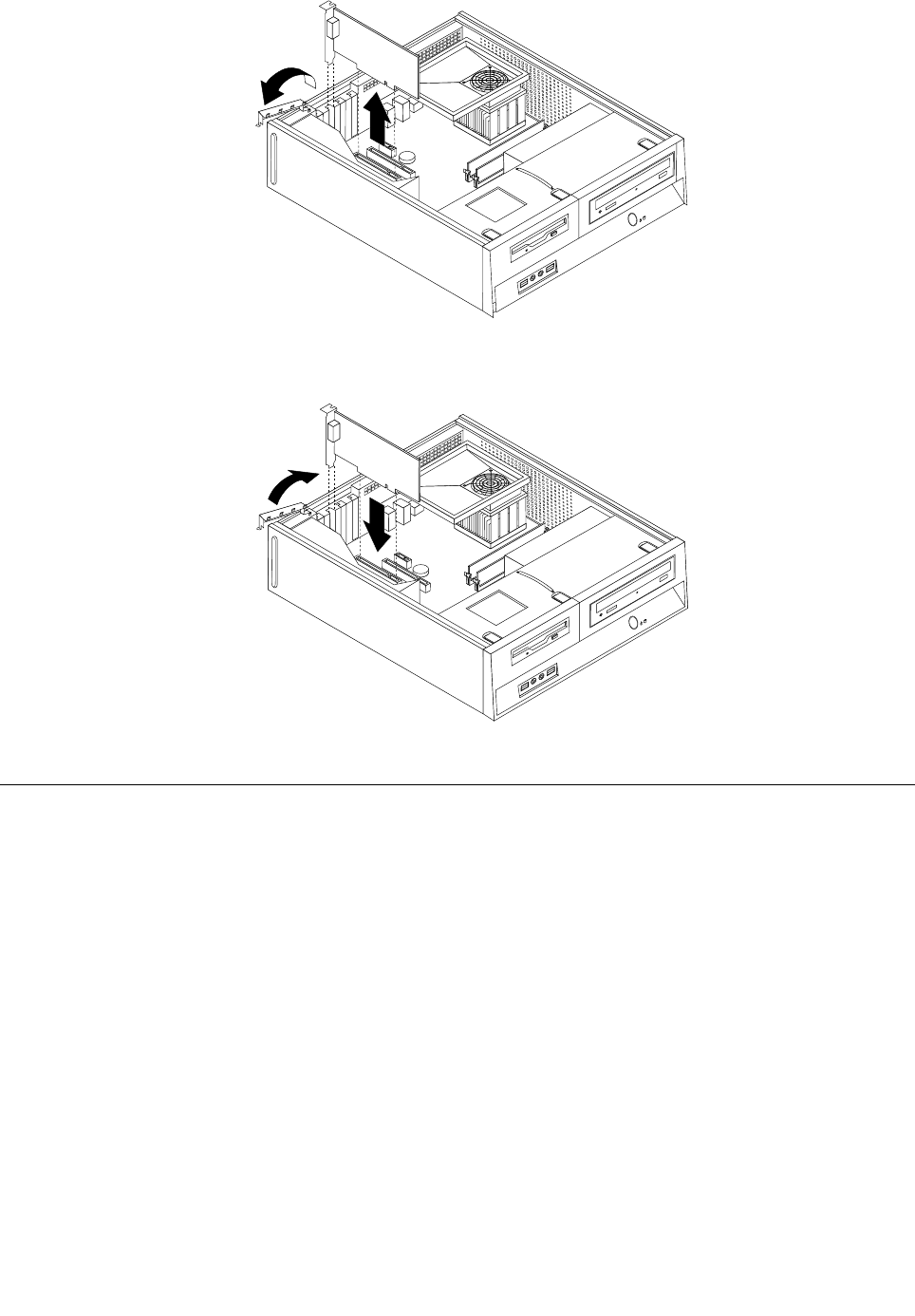

3.Removethenewadapterfromitsstatic-protectivepackage.

4.Installthenewadapterintotheappropriateconnectoronthesystemandclosetheadapterlatch.

5.Goto"CompletingtheFRUreplacement"onpage113.

CompletingtheFRUreplacement

AfterreplacingFRUs,youneedtoinstallanyremovedparts,replacethecover,andreconnectanycables,

includingtelephonelinesandpowercords.Also,dependingontheFRUthatisreplaced,youmightneedto

conrmtheupdatedinformationintheSetupUtilityprogram.

Note:Whenthepowercordisrstpluggedin,thecomputermightappeartoturnonforafewsecondsand

thenturnoff.Thisisanormalsequencetoenablethecomputertoinitialize.

1.Ensurethatallcomponentshavebeenreassembledcorrectlyandthatnotoolsorloosescrewsareleft

insideyourcomputer.

2.Repositionanycablesthatmightimpedethereplacementofthecomputercover.

Important:Correctlyrouteallpowersupplycablestoavoidinterferencewiththedrivebayassembly.

Keepcablesclearofthehingesandsidesofthecomputerchassis.

3.Positionthecomputercoveronthechassissothattherailguidesonthesidesofthecoverengagethe

railsandpushthecovertotheclosedpositionuntilitsnapsintoposition.

Chapter9ReplacingFRUs(Types7057,7062,7092,9342,9344,9354,9426,9486,9624,9707,9787,9804,9945)113
