3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)cables,

andanyothercablesthatareconnectedtothecomputer.

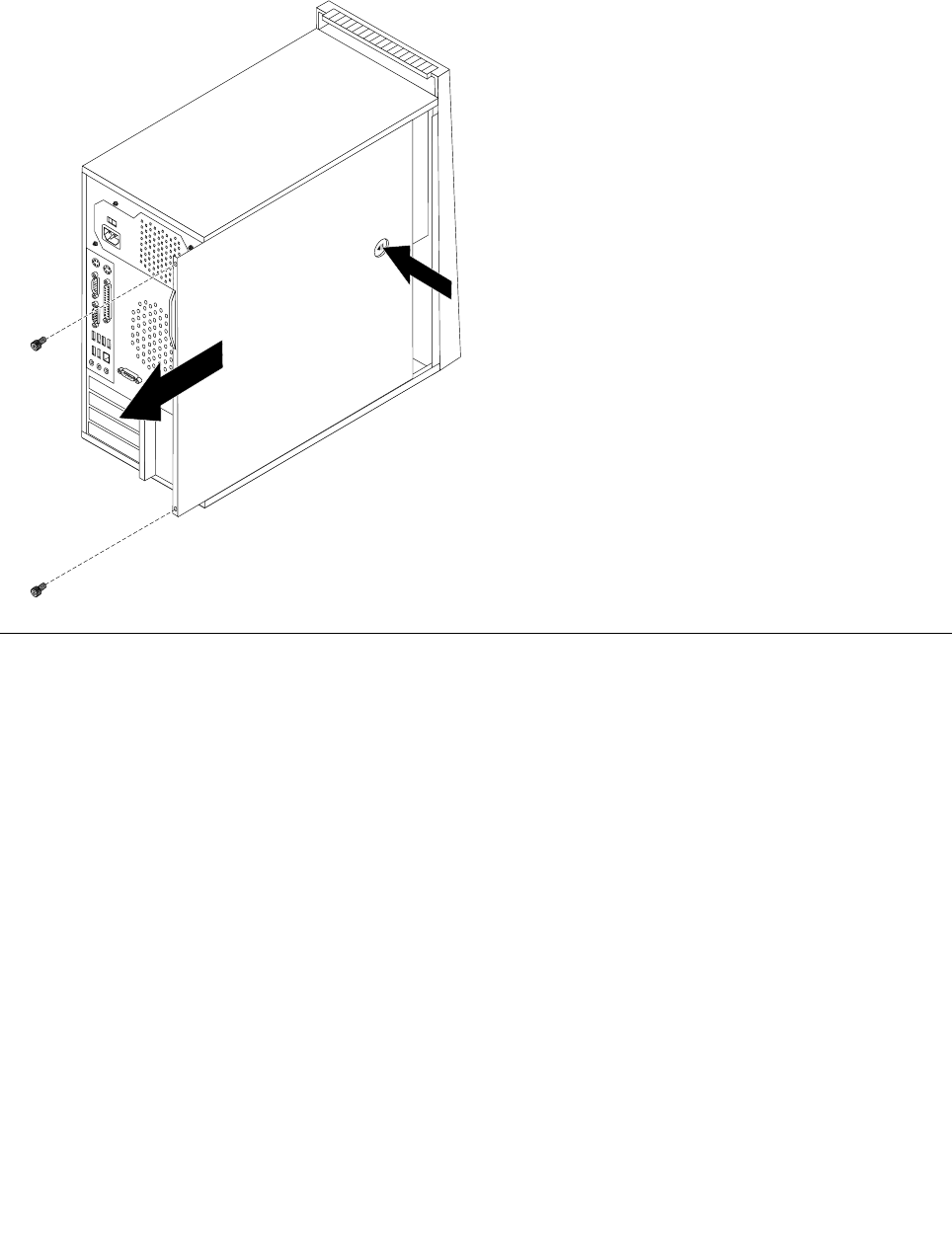

4.Iftherearethumbscrewssecuringthecover,removethem.

5.Pressthebuttonontheleft-sidecoverandslidethecovertothereartoremove.

Locations

Toremovethecomputercover,see"Removingthecover"onpage68.

ThefollowingillustrationwillhelpyoulocatethemajorFRUsinthecomputer.

Chapter8ReplacingFRUs(Types7061,7090,9353,9421,9485,9623,9625,9705,9786,9795,9935,9946,9953)69
