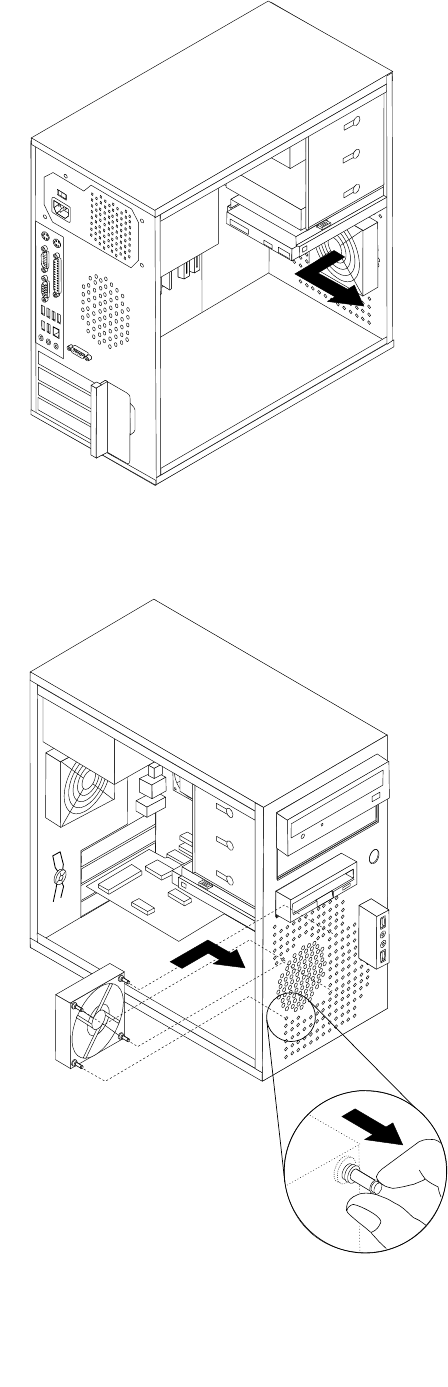

5.Installthenewfrontfanassemblybyaligningtherubbermountsofthefrontfanassemblywiththeholes

onthechassisandpushtherubbermountsthroughtheholes.

6.Pullonthetipsoftherubbermountsuntilthefanassemblyisinplace.

7.Routethefancabletothesystemboardandconnectthecabletothesystemboard.See"Locating

partsonthesystemboard"onpage71.

88ThinkCentreHardwareMaintenanceManual
