Replacing the microprocessor
Attention
Do not open your computer or attempt any repair before reading and understanding the
“Important safety information” in the ThinkCentre Safety and Warranty Guide that came with
your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to:
http://www.lenovo.com/support
This section provides instructions on how to replace the microprocessor.
CAUTION:
The heat sink and microprocessor might be very hot. Turn off the computer and
wait three to five minutes to let the computer cool before opening the computer
cover.
To replace the microprocessor:
1. Open the computer cover. See “Opening the computer cover” on page 84.
2. Remove any parts or cables that may prevent your access to the system board.
3. Locate the heat sink and remove it from the system board. See “Locating
components” on page 82 and “Replacing the heat sink” on page 91.
4. Place the heat sink on its side so that the thermal grease does not come in
contact with anything.
5. Lift the small handle 3 and open the retainer 1 to access the
microprocessor 2.

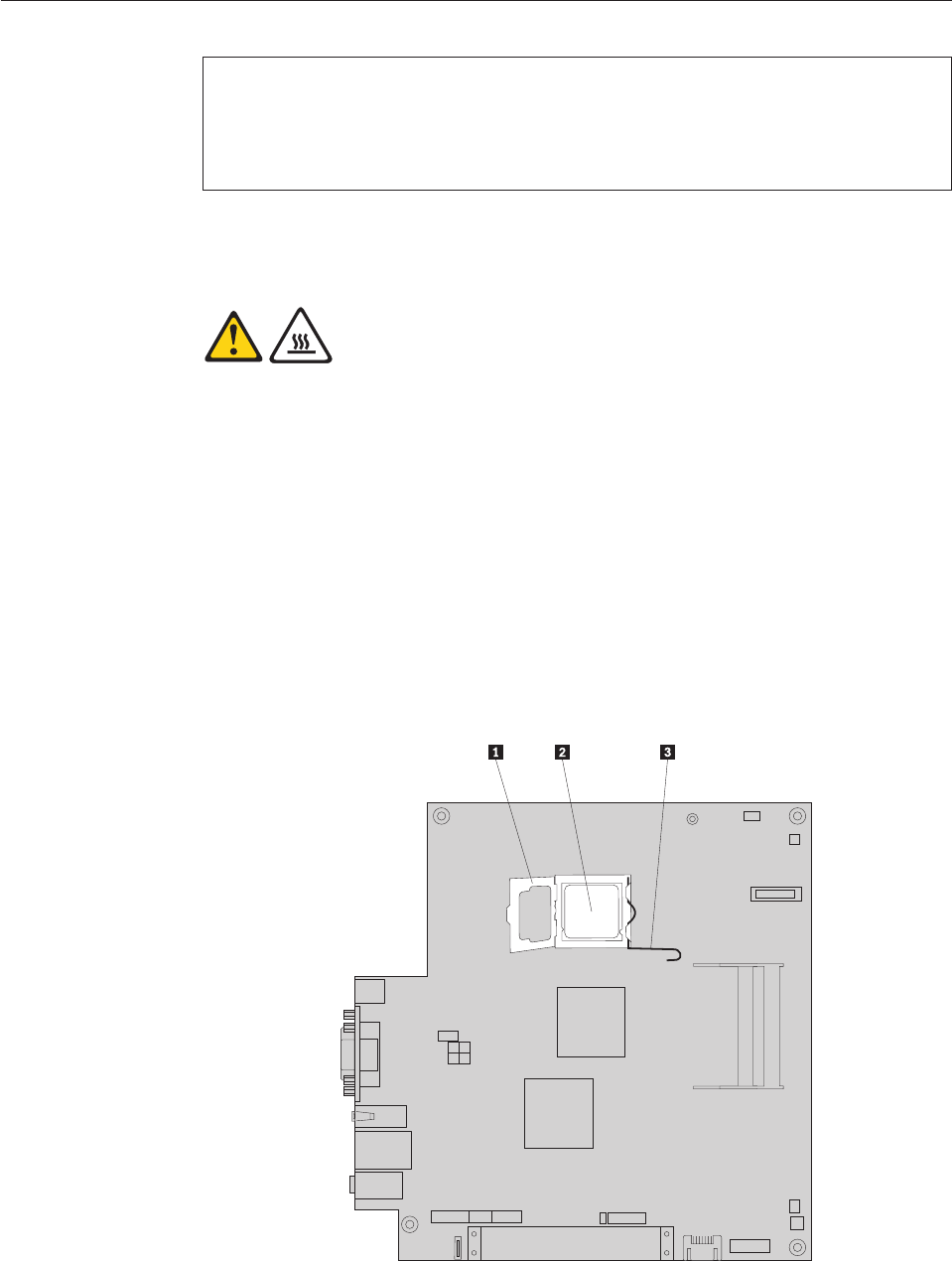

Figure 15. Accessing the microprocessor
