User guide

6 I/O terminals
6.2 Analog terminals
112
Lenze · 8400 BaseLine C · Reference manual · DMS 1.6 EN · 01/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.2.1 Parameterising analog input

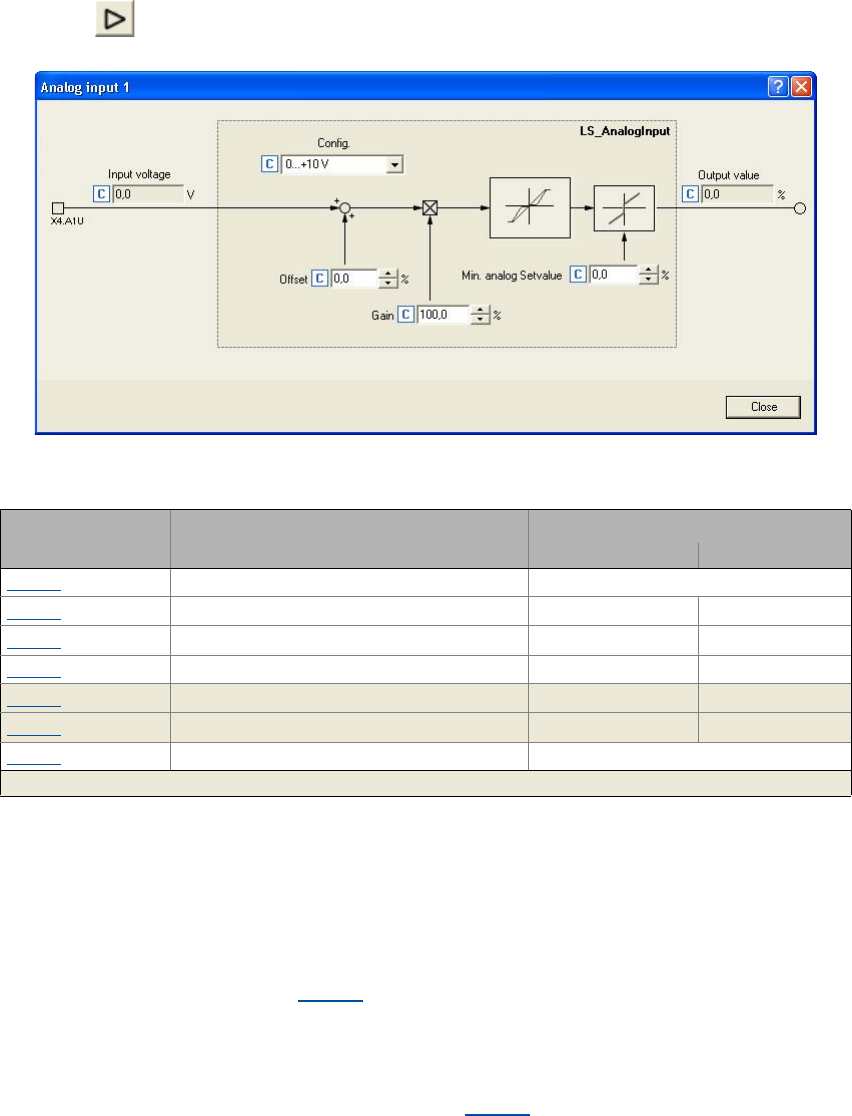

By clicking on the Terminal assignment tab, you reach the parameterising dialog for the analog
input:
Short overview of parameters for the analog input:
Using the analog input as current input
In the Lenze setting, a voltage signal in the range 0 ... +10 V is evaluated via the analog input termi-
nal A1U.
For evaluating a current signal:
1. Connect external 250-Ω load resistor.
2. Make the following setting in C034/1
:
• Selection "1: 0 ... +5 V" for 0 ... 20 mA current loop.
• Selection "2: +1 ... +5 V" for 4 ... 20 mA current loop
("life zero", with open-circuit monitoring).
3. With a configuration as 4 ... 20 mA current loop in C598/1
, set the desired error response in the
event of open circuit (Lenze setting: "Fault").
Parameter Info Lenze setting
Value Unit
C034/1 AIN1: Config. 0: 0 ... +10 V
C026/1
AIN1: Offset 0.0 %
C027/1
AIN1: Gain 100.0 %
C010/1
AIN1: Minimum analog setpoint 0.0 %
C028/1 AIN1: Input voltage - V
C033/1 AIN1: Output value (to application) - %
C598/1
Resp. to open circuit AIN1 1: Fault
Highlighted in grey = display parameter
