8 Diagnostics & error management
8.7 Error messages of the operating system
156
Lenze · 8400 BaseLine C · Reference manual · DMS 1.6 EN · 01/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.7 Error messages of the operating system
This chapter describes all error messages of the controller operating system and possible causes &
remedies.
Tip!
Each error message is also saved in the logbook in chronological order. Logbook
( 149)
8.7.1 Structure of the error number (bit coding)
If an error occurs in the controller, the internal fault memory saves a 32-bit value which contains the
following information:

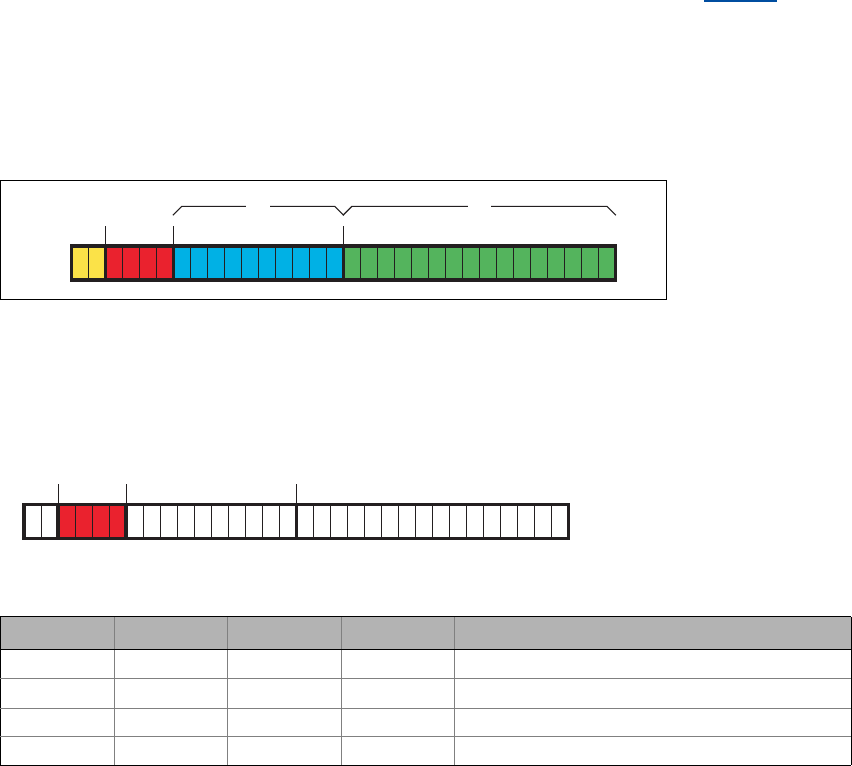

[8-1] Structure of the error number
For the sake of legibiltiy, the error number in the logbook is displayed with the following syntax:
[Error type].[Error subject area no.].[Error ID]
8.7.1.1 Error type
The error type gives information about the behaviour/response of the controller to the error. The er-
ror type for some device errors can also be parameterised.
Reserved
Error type
Error subject area
Error ID
210 3
Bit
162526
31
015
29
30
Bit 29 Bit 28 Bit 27 Bit 26 Meaning
0 0 0 0 0: No response
00011: Fault
00102: Trouble
01004: WarningLocked
Bit
162526
31
015
29
30
