Lenze · 8400 BaseLine C · Reference manual · DMS 1.6 EN · 01/2014 · TD05 319
11 Function library
11.5 LS_AnalogInput
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
11.5 LS_AnalogInput

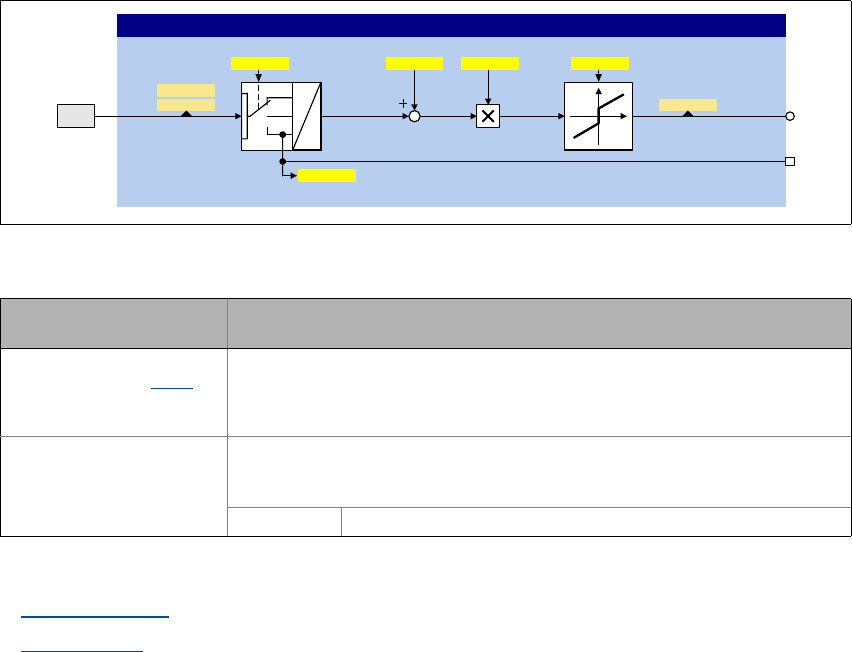

The LS_AnalogInput system block displays the analog input in the application on I/O level.
Outputs
Related topics:
Analog terminals
( 111)
Electrical data
( 119)
Identifier
Data type
Value/meaning
nIn1_a
C033/1 | INT
Analog input 1
• Scaling:
±2
14
≡ ±10 V for use as voltage input
+2
14
≡ +20 mA for use as current input
bCurrentErrorIn1
BOOL
Status signal "Current input error"
• Only when analog input 1 is used as current input.
• Application: Cable-breakage monitoring of the 4 ...20 mA circuit.
TRUE |I
AIN1
| < 4 mA
/6B$QDORJ,QSXW
$,QBE&XUUHQW(UURU,Q
$,QB2XW
&
&
'
$
&
2IIVHW *DLQ
& &
&
&
& (UURUUHDFWLRQ
$8
0LQLPXPDQDORJVHWSRLQW
