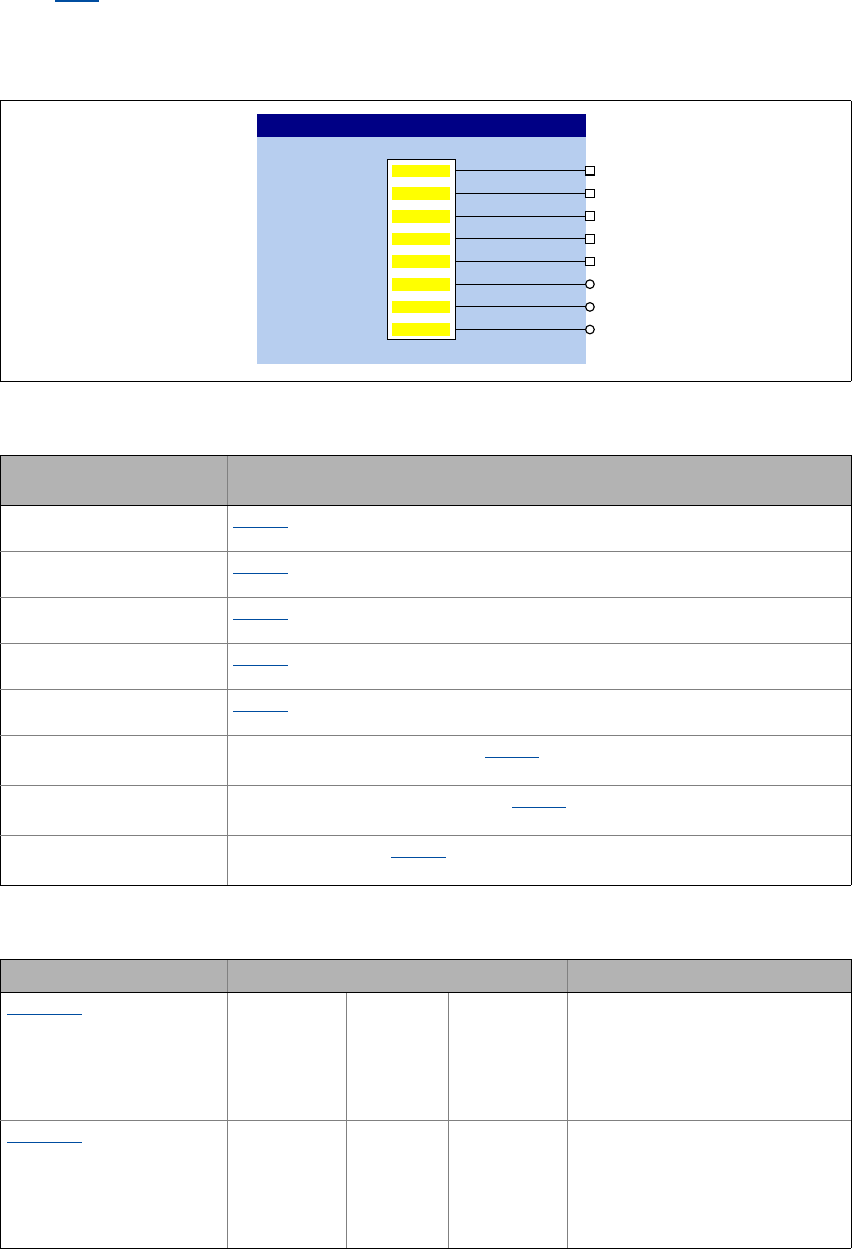

11.12 LS_Keypad
This system block is used on I/O interconnection level if the "Keypad" control mode has been selec-
ted in C007
.
In the "Keypad" control mode, the LS_Keypad system block passes on various setpoints and control
commands to the technology application which can be selected/activated via codes using the key-
pad.
Outputs
Parameter
Identifier
Data type
Value/meaning
bSetQuickstop
BOOL
C727/1 = "1" ≡ Request quick stop
bSetDCBrake
BOOL
C727/2 = "1" ≡ Request DC-injection braking
bSetSpeedCcw
BOOL
C727/3 = "1" ≡ Request reversal"
bJogSpeed1
BOOL
C727/4 = "1" ≡ Request fixed speed setpoint 1/2
bJogSpeed2
BOOL
C727/5 = "1" ≡ Request fixed speed setpoint 2/3
nTorqueMotLimit_a
INT
Torque limit in motor mode set in C728/1
• Lenze setting: 100.0 %
nTorqueGenLimit_a
INT
Torque limit in generator mode set in C728/2
• Lenze setting: 100.0 %
nMainSetValue_a
INT
Setpoint speed set in C728/3
•Lenze setting: 0.0%
Parameter Possible settings Info
C727/1...8
0 1 Keypad digital values
• Executing control commands
when operating via keypad
• See the "Outputs" table for the
meaning of the individual sub-
codes
C728/1...3
-199.9 % 199.9 Keypad analog values
• Selection of different setpoints
when operating via keypad
• See the "Outputs" table for the
meaning of the individual sub-
codes
