3 Commissioning
3.4 Commissioning with the »Engineer«
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Parameterise application

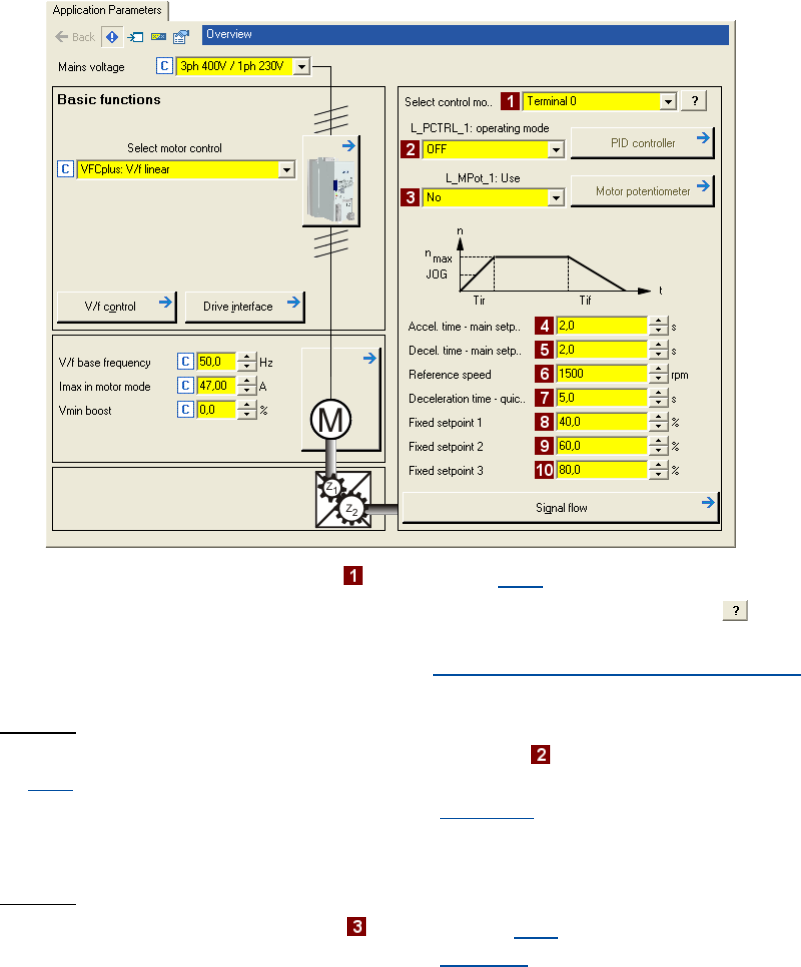

On the right of the Application parameters tab, the parameters of the application are arranged:
1. Select the required control mode in the Control mode (C007
) list field.
• The corresponding wiring diagram is displayed in a pop-up window if you click the button
right to the list field.
• For a detailed description, see chapter entitled "Terminal assignment of the control modes
".
( 139)
2. Optional
: Use process controller.
• For this purpose select the required operating mode in the L_PCTRL_1: Operating mode
(C242
) list field.
• For a detailed description see the function block L_PCTRL_1
. ( 312)
• The parameterisation dialog of the process controller can be accessed via the Process
controller button.
3. Optional
: Use motor potentiometer.
• For this purpose, select "1: On" in the L_MPot_1: Use (C806
) list field.
• For a detailed description see the function block L_MPot_1
. ( 305)
• The parameterisation dialog of the process controller can be accessed via the Motor
potentiometer button.
