E94AYCEP (POWERLINK)
- Contents

Ä.N,)ä

13451108

POWERLINK

Accessories

Servo Drives 9400

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Communication Manual EN

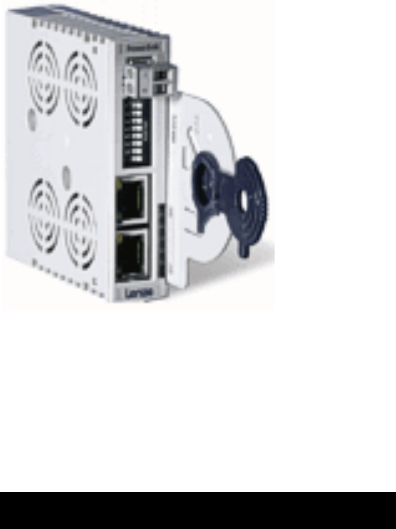

E94AYCEP

Summary of content (148 pages)

PAGE 1
Accessories POWERLINK 13451108 Ä.
PAGE 2
Contents ________________________________________________________________ 1 1.1 1.2 1.3 1.
PAGE 3
Contents ________________________________________________________________ 7 Process data transfer _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 43 8 8.1 8.
PAGE 4
1 About this documentation ________________________________________________________________ 1 About this documentation Contents This documentation exclusively describes the E94AYCEP communication module (POWERLINK).  Note! This documentation supplements the mounting instructions supplied with the drive and the "Servo Drives 9400" hardware manual.
PAGE 5
1 About this documentation ________________________________________________________________ Target group This documentation is intended for all persons who plan, install, commission and maintain the networking and remote servicing of a machine.  Tip! Current documentation and software updates with regard to Lenze products can be found in the download area at: www.lenze.
PAGE 6
1 About this documentation 1.1 Document history ________________________________________________________________ 1.1 Document history Version 1.0 7 Description 10/2006 TD17 First edition General revision 2.0 11/2006 TD17 3.0 11/2007 TD17 4.0 08/2011 TD17 5.0 09/2012 TD17 • General updates • Supplements in the chapter Error messages ( 60) 6.
PAGE 7
1 About this documentation 1.2 Conventions used ________________________________________________________________ 1.2 Conventions used This documentation uses the following conventions to distinguish between different types of information: Type of information Writing Examples/notes Spelling of numbers Decimal Decimal separator Hexadecimal Binary • Nibble Standard notation Point 0x[0 ... 9, A ... F] In inverted commas Point Example: 1234 The decimal point is always used. For example: 1234.
PAGE 8
1 About this documentation 1.3 Terminology used ________________________________________________________________ 1.3 Terminology used Term Meaning Drive Lenze inverter of the "Servo Drives 9400" product series for which the communication module can be used. Application as directed ( 13) Inverter Standard device CN Controlled Node (POWERLINK slave) Code Parameter which serves to parameterise and monitor the drive. In normal usage, the term is usually referred to as "Index".
PAGE 9
1 About this documentation 1.4 Notes used ________________________________________________________________ 1.
PAGE 10
2 Safety instructions 2.1 General safety and application notes ________________________________________________________________ 2 Safety instructions  Note! It is absolutely vital that the stated safety measures are implemented in order to prevent serious injury to persons and damage to material assets. Always keep this documentation to hand in the vicinity of the product during operation. 2.
PAGE 11
2 Safety instructions 2.2 Device and application-specific safety instructions ________________________________________________________________ 2.2 Device and application-specific safety instructions • During operation, the communication module must be securely connected to the standard device. • With external voltage supply, always use a separate power supply unit, safely separated to EN 61800-5-1 in every control cabinet (SELV/PELV). • Only use cables corresponding to the given specifications.
PAGE 12
3 Product description 3.1 Application as directed ________________________________________________________________ 3 Product description 3.1 Application as directed The communication module ... • is an accessory module that can be used in conjunction with the following standard devices: Product series Type designation Servo Drives 9400 HighLine E94AxHExxx From hardware version From software version VB 01.50 Servo Drives 9400 PLC E94AxPExxxx VA 02.
PAGE 13
3 Product description 3.3 Product features ________________________________________________________________ 3.3 Product features • Interface module for the POWERLINK communication system to be connected to the expansion slots of the Servo Drives 9400 • The communication module can either be supplied internally by the standard device or externally by a separate voltage source.
PAGE 14
3 Product description 3.4 Terminals and interfaces ________________________________________________________________ 3.
PAGE 15
4 Technical data 4.1 General data and operating conditions ________________________________________________________________ 4 Technical data 4.1 General data and operating conditions Range Values Order designation E94AYCEP Communication profile POWERLINK V2 Communication medium S/FTP (Screened Foiled Twisted Pair, ISO/IEC 11801 or EN 50173), CAT 5e Interface for communication RJ45, Standard Ethernet (according to IEEE 802.
PAGE 16
4 Technical data 4.2 POWERLINK communication data ________________________________________________________________ 4.2 POWERLINK communication data Range Values Jitter synchronisation information approx. 1 s Minimum cycle time Managing Node: 1.0 ms Controlled Node: 0.5 ms Total cycle times Managing Node: 1.0 ... 20.0 ms Controlled Node: 0.5 / 1.0 / 2.0 / 3.0 … 20.0 ms Buffer size Tx-iso: max. 92 bytes (64 bytes of PDO user data) Delay times (Controlled Node) TPreq - TRes: approx.
PAGE 17
4 Technical data 4.2 POWERLINK communication data ________________________________________________________________ 4.2.3 Communication time Parameter data (SDO) The communication time for parameter data is the time between the transmission of an SDO request and the arrival of the corresponding response. • The processing time in the Servo Drive 9400 is approx.
PAGE 18
4 Technical data 4.3 Protective insulation ________________________________________________________________ 4.3 Protective insulation  Danger! Dangerous voltage If the Servo Drives 9400 are operated on a phase earthed mains with a rated mains voltage  400 V, external measures need to be implemented in order to ensure protection against accidental contact.
PAGE 19
4 Technical data 4.3 Protective insulation ________________________________________________________________ The following illustration ... • shows the arrangement of the terminal strips and the separate potential areas of the Servo Drive 9400. • serves to determine the decisive protective insulation between two terminals located in differently insulated separate potential areas. X1 X2 Reinforced insulation X100 X3 MXI1 Basic insulation Bus Functional insulation Ext.
PAGE 20
4 Technical data 4.3 Protective insulation ________________________________________________________________ Example Which type of protective insulation is used between the bus terminal of the device module in slot MXI1 or MXI2 and the mains terminal X100? The separate potential area with the better protective insulation is decisive. • The separate potential area of the bus terminal of the device module has a "functional insulation".
PAGE 21
4 Technical data 4.4 Dimensions ________________________________________________________________ 4.4 Dimensions a 89 mm b 134 mm b1 87 mm e 23 mm E94YCXX005 [4-2] Dimensions Lenze · E94AYCEP communication module (POWERLINK MN/CN) · Communication Manual · DMS 6.
PAGE 22
5 Installation ________________________________________________________________ 5 Installation  Stop! Electrostatic discharge Electronic components within the communication module can be damaged or destroyed by electrostatic discharge. Possible consequences: • The communication module is defective. • Fieldbus communication is not possible or faulty. Protective measures • Before touching the module, be sure that you are free of electrostatic charge.
PAGE 23
5 Installation 5.1 Mechanical installation ________________________________________________________________ 5.1 Mechanical installation 5.1.1 Assembly E94YCXX001G [5-1] 5.1.2 Assembly Disassembly E94YCXX001H [5-2] Disassembly Lenze · E94AYCEP communication module (POWERLINK MN/CN) · Communication Manual · DMS 6.
PAGE 24
5 Installation 5.2 Electrical installation ________________________________________________________________ 5.2 Electrical installation  5.2.1 Documentation on standard device, host (PLC), system/machine Observe the notes and wiring instructions contained in this documentation. Wiring according to EMC guidelines In typical systems, standard shielding is sufficient for Ethernet cables.
PAGE 25
5 Installation 5.2 Electrical installation ________________________________________________________________ 5.2.2 Network topology E94YCEP012 [5-4] Network topology for POWERLINK  Note! The use of class I hubs and switches inside the POWERLINK network segment is not permitted. Inside the segment only Ethernet hubs may be used as infrastructure elements. The hubs must meet the requirements on class II repeaters acc. to IEEE 802.3u.
PAGE 26
5 Installation 5.2 Electrical installation ________________________________________________________________ Recommended topology For an easy configuration and due to many possible topology variants we recommend to create networks according to the following rules: 1. Create CN groups with up to 10 nodes. 2. Connect CN groups in star shape to the Managing Node. 3. Connect CN groups to the Managing Node via one external hub each. • For more than 2 CN groups, use an external 8-port hub (e.g.
PAGE 27
5 Installation 5.2 Electrical installation ________________________________________________________________ 5.2.3 Ethernet POWERLINK  Note! Standard Ethernet nodes are not permitted in the POWERLINK network segment. In order to use the real-time capability of the POWERLINK technology, POWERLINK nodes must be interconnected in a separate network segment. In accordance with the POWERLINK rules, only the Managing Node controls the access of POWERLINK nodes to the network.
PAGE 28
5 Installation 5.2 Electrical installation ________________________________________________________________ 5.2.4 Basic Ethernet Mode  Note! Operation in the "Basic Ethernet Mode" does not permit any real-time communication. The communication module can be operated in the "Basic Ethernet Mode" for a basic parameter setting provided that the following applies: 1. Operation of the module with network address  239. • IP address: 192.168.100.[Node ID] • see Node address setting ( 36) 2.
PAGE 29
5 Installation 5.2 Electrical installation ________________________________________________________________ 5.2.5 POWERLINK connection • The POWERLINK is wired using the two RJ45 sockets X211 and X212. • If possible, do not wire more than 10 nodes in a row in a network line. • In case of more than 10 nodes you should deactivate the automatic calculation of the hub level in the »Engineer« and enter it manually to increase the performance. • With a cycle time of 1 ms, 25 nodes can be operated.
PAGE 30
5 Installation 5.2 Electrical installation ________________________________________________________________ Mounting clearance When ordering and using your Ethernet cable, note the amount of free space available. E94AYCET017 [5-6] 31 Mounting clearance Lenze · E94AYCEP communication module (POWERLINK MN/CN) · Communication Manual · DMS 6.
PAGE 31
5 Installation 5.2 Electrical installation ________________________________________________________________ 5.2.6 Ethernet cable specification  Note! Only use cables that meet the listed specifications. Ethernet cable specification Ethernet standard Standard Ethernet (in accordance with IEEE 802.3), 100Base-TX (Fast Ethernet) Cable type S/FTP (Screened Foiled Twisted Pair, ISO/IEC 11801 or EN 50173), CAT 5e Damping 23.
PAGE 32
5 Installation 5.2 Electrical installation ________________________________________________________________ Colour code of the Ethernet cable  Note! Wiring and colour code are standardised in EIA/TIA 568A/568B. In accordance with the industrial standard, the use of 4-pin Ethernet cables is permissible. The cable type only connects the assigned pins 1, 2, 3 and 6 to one another.
PAGE 33
5 Installation 5.2 Electrical installation ________________________________________________________________ 5.2.7 External voltage supply The communication module can be externally supplied with voltage via separate supply cables at the 2-pin plug connector X210.  Note! With external voltage supply, always use a separate power supply unit, safely separated to EN 61800-5-1 in every control cabinet (SELV/PELV).
PAGE 34
6 Commissioning 6.1 Before initial switch-on ________________________________________________________________ 6 Commissioning During commissioning, plant-specific data such as motor parameters, operating parameters, responses, and parameters for fieldbus communication are defined for the inverter. Lenze devices use codes for this purpose. The codes of the inverter and for communication are saved to the memory module in a non-volatile data set.
PAGE 35
6 Commissioning 6.2 Node address setting ________________________________________________________________ 6.2 Node address setting  Note! • Each network node address must only be used once. • The node address setting in the configuration software (e.g. »Engineer«) and the DIP switches must be identical for each node. • Switch the voltage supply of the communication module off and on again to activate changed settings. The POWERLINK node address (node ID) is set via the front DIP switches.
PAGE 36
6 Commissioning 6.
PAGE 37
6 Commissioning 6.3 Settings and displays in the »Engineer« ________________________________________________________________ 6.
PAGE 38
6 Commissioning 6.4 Initial switch-on ________________________________________________________________ 6.4 Initial switch-on  Documentation for the Servo Drive 9400  Note! Observe the safety instructions and information on residual hazards. Establishing communication In order to establish communication via an externally supplied communication module, the standard device must be switched on as well.
PAGE 39
6 Commissioning 6.4 Initial switch-on ________________________________________________________________  Initial switch-on and diagnosing 1. Switch on the Servo Drive 9400 and check whether it is ready for operation using the diagnostic LEDs of the communication module. • Red diagnostic LEDs must not be on.
PAGE 40
6 Commissioning 6.5 Drive synchronisation ________________________________________________________________ 6.5 Drive synchronisation Examples of the use of drive synchronisation via POWERLINK: • Implementation of the "electrical shaft" • Specification of cyclic position information • Exactly simultaneous data processing of several drives • Optimisation of the processing times of cyclic process data (PDO).
PAGE 41
6 Commissioning 6.6 Optimising the POWERLINK communication ________________________________________________________________ 6.6 Optimising the POWERLINK communication SDO bandwidth  Note! The channel bandwidth should only be increased if the network is below capacity limit. The SDO channel width (C13075 / C14075 is the size of the asynchronous channel used for parameter setting and diagnostics. A higher value improves the transmission of large amounts of data (e.g.
PAGE 42
7 Process data transfer ________________________________________________________________ 7 Process data transfer POWERLINK transmits process data, parameter data, configuration data and diagnostic data between the Managing Node and the Controlled Nodes. Depending on their time-critical behaviour, the data are transmitted via different communication channels. • Process data are transmitted via the process data channel. • Process data serve to control the Servo Drive 9400.
PAGE 43
7 Process data transfer ________________________________________________________________ Port mapping in the »Engineer« The port mapping in the »Engineer« can be automatically carried out via a selectable interface: • POWERLINK MN/CN • CAN on board • Defined by the system  How to select the interface for automatic assignment of the port mapping: 1. Go to Process data objects tab and press the "Go to application" button. 2.
PAGE 44
8 Monitoring ________________________________________________________________ 8 Monitoring The communication module provides several monitoring functions for the "Managing Node" and "Controlled Node" operating modes. The standard settings can be changed in the »Engineer« under the Monitoring tab. For the settings, monitoring responses and monitoring thresholds can be specified.
PAGE 45
8 Monitoring 8.1 Monitoring functions of the Managing Node ________________________________________________________________ 8.1 Monitoring functions of the Managing Node In order to change the standard settings of the monitoring functions, press the settings" button. "Open advanced • The input fields for monitoring thresholds and monitoring responses are shown. • The "Close advanced settings" serves to mask out the input fields again.
PAGE 46
8 Monitoring 8.1 Monitoring functions of the Managing Node ________________________________________________________________ Settings Monitoring function 47 Description EPL frame error (CRC) Weighted number of received faulty frames • This error can occur due to very strong EMC interferences or by nonPOWERLINK-compliant nodes.
PAGE 47
8 Monitoring 8.2 Monitoring functions of the Controlled Node ________________________________________________________________ 8.2 Monitoring functions of the Controlled Node  Note! The E94AYCEP communication module as Controlled Node only supports monitoring for the "LeaveDataExchange" status. In order to change the standard settings of the monitoring functions, press the settings" button. "Open advanced • The input fields for monitoring thresholds and monitoring responses are shown.
PAGE 48
8 Monitoring 8.2 Monitoring functions of the Controlled Node ________________________________________________________________ Settings Monitoring function 49 Description EPL frame error (CRC) Weighted number of received faulty frames • This error can occur due to ver strong EMC interferences or by nonPOWERLINK-compliant nodes.
PAGE 49
9 Diagnostics 9.1 LED status displays ________________________________________________________________ 9 Diagnostics For fault diagnostics, the communication module is provided with the LEDs on the front. Furthermore, you can carry out a comprehensive diagnostics of the entire POWERLINK network using the »Engineer«. 9.1 LED status displays  Note! LED status displays for trouble-free operation: • The LEDs MS ( 51) and BS ( 52) are permanently lit.
PAGE 50
9 Diagnostics 9.1 LED status displays ________________________________________________________________ 9.1.1 Module status displays The LEDs MS, ME, BE and DE indicate the module status. MS: Module Status ME: Module Error BE: Bus Error DE: Device Error E94YCEP001E LED Colour Status MS Green On Description The communication module is supplied with voltage and is connected to the standard device.
PAGE 51
9 Diagnostics 9.1 LED status displays ________________________________________________________________ 9.1.2 Fieldbus status displays The BS LED indicates the fieldbus status. BS: Bus Status E94YCEP001E LED Colour Status BS Green Off Description The communication module is not active on the fieldbus or is in the INIT state. Blinking 1s The POWERLINK network is in the initialisation phase.
PAGE 52
9 Diagnostics 9.1 LED status displays ________________________________________________________________ 9.1.3 Status displays at the RJ45 sockets (X211, X212) The LEDs at the RJ45 sockets X211 and X212 indicate the POWERLINK connection status. LEDs Colour Status Green Off Description No POWERLINK connection On POWERLINK connection has been established. flickers 50 ms Data communication of POWERLINK connection is active. E94YCEP001E Red On POWERLINK collision has occurred.
PAGE 53
9 Diagnostics 9.2 Troubleshooting with module signalling ________________________________________________________________ 9.2 Troubleshooting with module signalling In the following, troubleshooting via the module signals will be described. Please particularly observe ... • the basic readiness for operation between the standard device and the communication module; • the network wiring. 1.
PAGE 54
9 Diagnostics 9.2 Troubleshooting with module signalling ________________________________________________________________ 2. Diagnostics - network wiring off Is at least one cable plugged? yes no X251/252, green LED on? on X251/252 green LED blinking? yes Point 3 no yes Is the module connected to it switched on? Check the cable connection and the cable. Check EPL master. BS on / blinking? yes no Switch on the EPL devices. Go back to point 2. no Create EPL wiring. Go back to point 1.
PAGE 55
9 Diagnostics 9.2 Troubleshooting with module signalling ________________________________________________________________ 3. Diagnostics - EPL operation yes EPL master: ME on? BE on? no Make a fault reset at the standard Device. Wait 30 s. EPL master: BS on / blinking? on End blinking / off Standard device: Make a fault reset. Then wait 30 s. yes EPL master: ME on? no Wait 30 s. EPL master: BS on / blinking? on End blinking / off Make further error search with the Engineer.
PAGE 56
9 Diagnostics 9.3 Diagnostic data ________________________________________________________________ 9.3 Diagnostic data Pending diagnostic data are signalled from the Controlled Node to the Managing Node by means of an emergency message. Errors and warnings in the Servo Drive 9400 and the plugged communication module are sent to the Managing Node as extended diagnostic messages. The diagnostic data is visible via the engineering software of the host (PLC). Bytes Meaning Value [hex] 1 ...
PAGE 57
9 Diagnostics 9.4 Diagnosing with the »Engineer« ________________________________________________________________ 9.4 Diagnosing with the »Engineer« In the »Engineer« under the Diagnostics tab, you will find POWERLINK diagnostics information. The "Open extended settings" tab serves to display further diagnostics information on the Managing Node (node ID = ’240’) or Controlled Node (node ID ’0’ ... ’239’). Lenze · E94AYCEP communication module (POWERLINK MN/CN) · Communication Manual · DMS 6.
PAGE 58
9 Diagnostics 9.4 Diagnosing with the »Engineer« ________________________________________________________________ Display of the extended settings for the Managing Node Display of the extended settings for the Controlled Node 59 Lenze · E94AYCEP communication module (POWERLINK MN/CN) · Communication Manual · DMS 6.
PAGE 59
10 Error messages ________________________________________________________________ 10 Error messages This chapter supplements the error list in the reference manual and the »Engineer« online help for the Servo Drive 9400 by POWERLINK error messages of the communication module.  Reference manual/»Engineer« online help for Servo Drive 9400 Here you will find general information on diagnostics & fault analysis and on error messages.
PAGE 60
10 Error messages 10.1 Error messages of the communication module ________________________________________________________________ 10.1 Error messages of the communication module This chapter describes all error messages of the communication module and their causes and remedies. 10.1.1 Short overview The following table contains all error messages of the communication module in numerical order of the error numbers.
PAGE 61
10 Error messages 10.1 Error messages of the communication module ________________________________________________________________ 10.1.2 Possible causes and remedies In this chapter, all error messages of the communication module are listed in numerical order of the error numbers. Possible causes and remedies and responses to the error messages are described in detail.
PAGE 62
10 Error messages 10.1 Error messages of the communication module ________________________________________________________________ EPL: Internal watchdog activated [0x00c86011] Response (Lenze setting printed in bold) Setting: not possible  None  System fault  Fault  Trouble  Quick stop by trouble  Warning locked  Warning  Information Cause Remedy Communication module is defective. Send communication module together with a description of the fault to Lenze.
PAGE 63
10 Error messages 10.1 Error messages of the communication module ________________________________________________________________ EPL: Fieldbus watchdog activated [0x00c88130] Response (Lenze setting printed in bold) Setting: not possible  None  System fault  Fault  Trouble  Quick stop by trouble  Warning locked  warning  Information Cause Remedy Communication module is defective. Send communication module together with a description of the fault to Lenze.
PAGE 64
10 Error messages 10.1 Error messages of the communication module ________________________________________________________________ EPL: Synchronisation lost from MN [0x00c88265] Response (Lenze setting printed in bold) Setting: C13891/3 / C14891/3  None  System fault  Fault  Trouble  Quick stop by trouble  Warning locked  Warning  Information Cause Remedy In the Controlled Node, the synchronisation cycle of the Managing Node has failed.
PAGE 65
10 Error messages 10.1 Error messages of the communication module ________________________________________________________________ EPL: MN address assigned double [0x00c88283] Response (Lenze setting printed in bold) Setting: not possible  No reaction  System fault  Fault  Trouble  Quick stop by trouble  WarningLocked  Warning  Information Cause Remedy The address setting of the Managing Node has been Correct address setting. assigned several times (node ID = ’240’).
PAGE 66
10 Error messages 10.2 POWERLINK error messages ________________________________________________________________ 10.2 POWERLINK error messages • The POWERLINK error messages are displayed via code C13910 / C14910. • In order to distinguish between the error responses, the displayed error messages are preceded with 3 characters: 67 Response Meaning EL_... Trouble (Fault) QL_... Quick stop by trouble WL_... Warning locked I__...
PAGE 67
10 Error messages 10.2 POWERLINK error messages ________________________________________________________________ Error number Name Description Faulty Ethernet frames (CRC error) have been detected.
PAGE 68
11 Parameter reference 11.1 Parameters of the standard device that are relevant to communication ________________________________________________________________ 11 Parameter reference This chapter supplements the parameter list and the table of attributes contained in the reference manual and in the »Engineer« online help for the Servo Drive 9400 with the parameters of the E94AYCEP (POWERLINK) communication module.  11.
PAGE 69
11 Parameter reference 11.1 Parameters of the standard device that are relevant to communication ________________________________________________________________ C00637 Parameter | Name: C00637 | Resp. to new module in MXI2 Data type: UNSIGNED_32 Index: 23939 = 0x5D83 Response if a new module has been plugged into module slot 2 of the standard device.
PAGE 70
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ 11.2 Parameters of the communication module for slot MXI1 This chapter lists the parameters of the E94AYCEP communication module (POWERLINK) for slot MXI2 of the Servo Drive 9400 in numerically ascending order.
PAGE 71
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13003 Parameter | Name: Data type: UNSIGNED_32 Index: 11572 = 0x2D34 EPL index: See subcodes C13003 | EPL IP address router The code declares the IP address of the router which connects the EPL segment to the higher-level network. The standard entry corresponds to the standard router address of the EPL specification:  192.168.100.
PAGE 72
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13027 Parameter | Name: C13027 | EPL MN: Boot behaviour Data type: UNSIGNED_32 Index: 11548 = 0x2D1C EPL index: 0x1F80 The code controls the start of the EPL network by the Managing Node and the responses to errors in the network. Servo Drives 9400 have a constant value. Value is bit-coded: Bit 0 ...
PAGE 73
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13028 Parameter | Name: Data type: UNSIGNED_32 Index: 11547 = 0x2D1B EPL index: See subcodes C13028 | EPL node declaration CN The code declares the Controlled Nodes 1 ... 100 and their properties. Value is bit-coded: Bit 0 ... 31 see below Subcodes Lenze setting Info EPL index C13028/1 0 EPL node declaration CN 0x1F81.0x01 ... ... ... ...
PAGE 74
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13029 Parameter | Name: Data type: UNSIGNED_32 Index: 11546 = 0x2D1A EPL index: See subcodes C13029 | EPL node declaration MN The code declares Managing Node, diagnostic device, and EPL router, and describes their properties. Value is bit-coded: Bit 0 ...
PAGE 75
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13030 Parameter | Name: Data type: UNSIGNED_32 Index: 11545 = 0x2D19 EPL index: 0x1000 C13030 | EPL device type The code indicates the device type of the EPL node.
PAGE 76
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13040 Parameter | Name: Data type: UNSIGNED_32 Index: 11535 = 0x2D0F EPL index: 0x1F82 C13040 | EPL feature flags The code displays the POWERLINK functions implemented by the EPL node. Value is bit-coded: Bit 0 ... 31 see below  Read access  Write access  CINH  PLC-STOP  No transfer  PDO_MAP_RX  PDO_MAP_TX  COM  MOT Description of the bits 0 ...
PAGE 77
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13041 Parameter | Name: Data type: UNSIGNED_8 Index: 11534 = 0x2D0E EPL index: not available C13041 | EPL version The code describes the version of the POWERLINK communication profile implemented by the communication module. The higher-order nibble describes the major version, the lower order nibble describes the minor version.
PAGE 78
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13045 Parameter | Name: C13045 | EPL host name Data type: VISIBLE_STRING Index: 11530 = 0x2D0A EPL index: 0x1F9A The code defines a DNS-compatible device name. The length is limited to 15 characters. The device name must be unambiguous within the network domain.
PAGE 79
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13062 Parameter | Name: Data type: UNSIGNED_32 Index: 11513 = 0x2CF9 EPL index: See subcodes C13062 | EPL MN: boot timing The code defines timeouts and waiting times for the booting process of the Managing Node. • The value "0" for subcode 2, 4, 5 deactivates the time-outs. The Managing Node waits for an indefinite period of time.
PAGE 80
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13066 Parameter | Name: Data type: UNSIGNED_16 Index: 11509 = 0x2CF5 EPL index: See subcodes C13066 | EPL CN: Max. user data PRes RPDO The code defines the reserved user data length of the PRes telegrams for Controlled Nodes 1 ... 100. Each subcode number corresponds to one EPL node with the same node ID. The EPL node must be enabled via code C13028.
PAGE 81
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13072 Parameter | Name: Data type: UNSIGNED_16 Index: 11503 = 0x2CEF EPL index: 0x1F98.0x05 C13072 | EPL Max. PDO user data TPDO PRes The code defines the maximum PDO data size to be sent by the EPL node for the current network configuration. The PDO mapping C13531 can assign data with a total size greater than or equal to C13072.
PAGE 82
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13079 Parameter | Name: Data type: UNSIGNED_8 Index: 11496 = 0x2CE8 EPL index: See subcodes C13079 | EPL multi-stage node declaration CN This code indicates in which multiplexed cycle the Controlled Node is queried. The value entered must not exceed the value in code C13074.
PAGE 83
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13096 Parameter | Name: Data type: UNSIGNED_8 Index: 11479 = 0x2CD7 EPL index: See subcodes C13096 | EPL node status The code indicates the NMT statuses reported by the Controlled Node to the Managing Node. Each subcode corresponds to an EPL node with node ID = subcode number. The EPL node must be enabled via C13028.
PAGE 84
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13103 Parameter | Name: Data type: UNSIGNED_8 Index: 11472 = 0x2CD0 EPL index: 0x1F9F.0x01 C13103 | EPL NMT command: Enable The code enables the NMT command defined via C13104/C13105. The values have the following meaning: • 0: The command is inhibited. • 1: The command is enabled.
PAGE 85
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13115 Parameter | Name: Data type: UNSIGNED_32 Index: 11460 = 0x2CC4 EPL index: See subcodes C13115 | EPL MN: Frame error (CRC) The POWERLINK telegrams of the EPL network are protected by a checksum. The Managing Node counts the checksum errors which signalise a falsification of the frame. The monitoring response is determined via C13891/4.
PAGE 86
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13118 Parameter | Name: Data type: UNSIGNED_32 Index: 11457 = 0x2CC1 EPL index: 0x1C03 C13118 | EPL MN: Link interruptions The code displays the counter of the Managing Node for interrupted POWERLINK connections. Each event is counted. Every single event is followed by an error response. A threshold value management is not implemented. Setting range (min.
PAGE 87
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13126 Parameter | Name: Data type: UNSIGNED_32 Index: 11449 = 0x2CB9 EPL index: See subcodes C13126 | EPL CN: Frame collisions The code indicates the number of POWERLINK collisions detected by the Controlled Node (C13116). Each event is counted. Every single event is followed by an error message. No threshold value management is implemented.
PAGE 88
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13132 Parameter | Name: Data type: UNSIGNED_32 Index: 11443 = 0x2CB3 EPL index: 0x1C10 C13132 | EPL CN: Link interruptions The code indicates the counter of the Controlled Node for POWERLINK connection interruptions (C13118). Each event is counted. Every single event is followed by an error message. No threshold value management is implemented.
PAGE 89
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13219 Parameter | Name: Data type: UNSIGNED_32 Index: 11356 = 0x2C5C EPL index: See subcodes C13219 | EPL device type MN The code contains the device type ID of the declared EPL nodes. Each subcode corresponds to an EPL node with node ID = subcode number.
PAGE 90
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13226 Parameter | Name: Data type: UNSIGNED_8 Index: 11349 = 0x2C55 EPL index: See subcodes C13226 | EPL node status MN The code indicates the current NMT statuses of the Managing Node. Each subcode corresponds to an EPL node with node ID = subcode number. The EPL node must be enabled via C13029.
PAGE 91
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13229 Parameter | Name: Data type: UNSIGNED_8 Index: 11346 = 0x2C52 EPL index: See subcodes C13229 | EPL multi-stage node declaration MN This code indicates in which multiplexed cycle the node is queried. The value entered must not exceed the value in code C13074.
PAGE 92
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13234 Parameter | Name: Data type: UNSIGNED_64 Index: 11341 = 0x2C4D EPL index: See subcodes C13234 | EPL RPDO EPL RPDO-4 Subcodes Lenze setting Info EPL index C13234/1 0 EPL RPDO 0x1603.0x01 ... ... ... ... C13234/32 0 EPL RPDO 0x1603.
PAGE 93
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13238 Parameter | Name: Data type: UNSIGNED_64 Index: 11337 = 0x2C49 EPL index: See subcodes C13238 | EPL RPDO EPL RPDO-8 Subcodes Lenze setting Info EPL index C13238/1 0 EPL RPDO 0x1607.0x01 ... ... ... ... C13238/32 0 EPL RPDO 0x1607.
PAGE 94
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13484 Parameter | Name: Data type: UNSIGNED_8 Index: 11091 = 0x2B53 EPL index: See subcodes C13484 | EPL address: RPDO The subcodes 1 ... 10 describe the node address of the transmitting EPL node for the PDO channels 1 ... 10 (mapping see C13231 ... C13240). Values > "0" describe the origin of a PRes frame.
PAGE 95
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13531 Parameter | Name: Data type: UNSIGNED_64 Index: 11044 = 0x2B24 EPL index: See subcodes C13531 | EPL TPDO The code describes the mapping for the TPDO channel.C13789.1 describes the number of valid mapping object entries in this code. Subcodes 1 ... 32 describe the mapping of the single objects.
PAGE 96
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13882 Parameter | Name: Data type: UNSIGNED_8 Index: 10693 = 0x29C5 EPL index: not available C13882 | EPL reset cycle counter The value "1" (TRUE) enables the code to reset the cycle counter (C13136). After reset termination the code automatically assumes the value "0" (FALSE). Setting range (min. value | unit | max.
PAGE 97
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13891 Parameter | Name: Data type: UNSIGNED_8 Index: 10684 = 0x29BC EPL index: See subcodes C13891 | EPL module error responses The subcodes of C13891 determine the response to errors (e.g. communication errors) of the EPL stack.
PAGE 98
11 Parameter reference 11.
PAGE 99
11 Parameter reference 11.2 Parameters of the communication module for slot MXI1 ________________________________________________________________ C13920 Parameter | Name: C13920 | EPL DIP switch Data type: UNSIGNED_8 Index: 10655 = 0x299F EPL index: not available The code outputs the current DIP switch setting of the communication module. • The switch with the labelling "128" is displayed on the most significant bit, the switch "1" on the least significant bit.
PAGE 100
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ 11.3 Parameters of the communication module for slot MXI2 This chapter lists the parameters of the E94AYCEP communication module (POWERLINK) for slot MXI2 of the Servo Drive 9400 in numerically ascending order.
PAGE 101
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14003 Parameter | Name: Data type: UNSIGNED_32 Index: 10572 = 0x294C EPL index: See subcodes C14003 | EPL IP address router The code declares the IP address of the router which connects the EPL segment to the higher-level network. The standard entry corresponds to the standard router address of the EPL specification:  192.168.100.
PAGE 102
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14027 Parameter | Name: C14027 | EPL MN: Boot behaviour Data type: UNSIGNED_32 Index: 10548 = 0x2934 EPL index: 0x1F80 The code controls the start of the EPL network by the Managing Node and the responses to errors in the network. Servo Drives 9400 have a constant value 274 (0x112). Value is bit-coded: Bit 0 ...
PAGE 103
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14028 Parameter | Name: Data type: UNSIGNED_32 Index: 10547 = 0x2933 EPL index: See subcodes C14028 | EPL node declaration CN The code declares the Controlled Nodes 1 ... 100 and their properties. Value is bit-coded: Bit 0 ... 31 see below Subcodes Lenze setting Info EPL index C14028/1 0 EPL node declaration CN 0x1F81.0x01 ... ... ... ...
PAGE 104
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14029 Parameter | Name: Data type: UNSIGNED_32 Index: 10546 = 0x2932 EPL index: See subcodes C14029 | EPL node declaration MN The code declares Managing Node, diagnostic device, and EPL router, and describes their properties. Value is bit-coded: Bit 0 ...
PAGE 105
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14030 Parameter | Name: Data type: UNSIGNED_32 Index: 10545 = 0x2931 EPL index: 0x1000 C14030 | EPL device type The code indicates the device type of the EPL node.
PAGE 106
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14040 Parameter | Name: Data type: UNSIGNED_32 Index: 10535 = 0x2927 EPL index: 0x1F82 C14040 | EPL feature flags The code displays the POWERLINK functions implemented by the EPL node. Value is bit-coded: Bit 0 ... 31 see below  Read access  Write access  CINH  PLC-STOP  No transfer  PDO_MAP_RX  PDO_MAP_TX  COM  MOT Description of the bits 0 ...
PAGE 107
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14041 Parameter | Name: Data type: UNSIGNED_8 Index: 10534 = 0x2926 EPL index: not available C14041 | EPL version The code describes the version of the POWERLINK communication profile implemented by the communication module. The higher-order nibble describes the major version, the lower order nibble describes the minor version.
PAGE 108
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14045 Parameter | Name: C14045 | EPL host name Data type: VISIBLE_STRING Index: 10530 = 0x2922 EPL index: 0x1F9A The code defines a DNS-compatible device name. The length is limited to 15 characters. The device name must be unambiguous within the network domain.
PAGE 109
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14062 Parameter | Name: Data type: UNSIGNED_32 Index: 10513 = 0x2911 EPL index: See subcodes C14062 | EPL MN: boot timing The code defines timeouts and waiting times for the booting process of the Managing Node. • The value "0" for subcode 2, 4, 5 deactivates the time-outs. The Managing Node waits for an indefinite period of time.
PAGE 110
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14066 Parameter | Name: Data type: UNSIGNED_16 Index: 10509 = 0x290D EPL index: See subcodes C14066 | EPL CN: Max. user data PRes RPDO The code defines the reserved user data length of the PRes telegrams for Controlled Nodes 1 ... 100. Each subcode number corresponds to one EPL node with the same node ID. The EPL node must be enabled via code C14028.
PAGE 111
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14072 Parameter | Name: Data type: UNSIGNED_16 Index: 10503 = 0x2907 EPL index: 0x1F98.0x05 C14072 | EPL Max. PDO user data TPDO PRes The code defines the maximum PDO data size to be sent by the EPL node for the current network configuration. The PDO mapping C14531 can assign data with a total size greater than or equal to C14072.
PAGE 112
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14079 Parameter | Name: Data type: UNSIGNED_8 Index: 10496 = 0x2900 EPL index: See subcodes C14079 | EPL multi-stage node declaration CN This code indicates in which multiplexed cycle the Controlled Node is queried. The value entered must not exceed the value in code C14074.
PAGE 113
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14096 Parameter | Name: Data type: UNSIGNED_8 Index: 10479 = 0x28EF EPL index: See subcodes C14096 | EPL node status CN The code indicates the NMT statuses reported by the Controlled Node to the Managing Node. Each subcode corresponds to an EPL node with node ID = subcode number. The EPL node must be enabled via C14028.
PAGE 114
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14103 Parameter | Name: Data type: UNSIGNED_8 Index: 10472 = 0x28E8 EPL index: 0x1F9F.0x01 C14103 | EPL NMT command: Enable The code enables the NMT command defined via C14104/C14105. The values have the following meaning: • 0: The command is inhibited. • 1: The command is enabled.
PAGE 115
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14115 Parameter | Name: Data type: UNSIGNED_32 Index: 10460 = 0x28DC EPL index: See subcodes C14115 | EPL MN: Frame error (CRC) The POWERLINK telegrams of the EPL network are protected by a checksum. The Managing Node counts the checksum errors which signalise a falsification of the frame. The monitoring response is determined via C14891/4.
PAGE 116
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14118 Parameter | Name: Data type: UNSIGNED_32 Index: 10457 = 0x28D9 EPL index: 0x1C03 C14118 | EPL MN: Link interruptions The code displays the counter of the Managing Node for interrupted POWERLINK connections. Each event is counted. Every single event is followed by an error response. A threshold value management is not implemented. Setting range (min.
PAGE 117
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14126 Parameter | Name: Data type: UNSIGNED_32 Index: 10449 = 0x28D1 EPL index: See subcodes C14126 | EPL CN: Frame collisions The code indicates the number of POWERLINK collisions detected by the Controlled Node (C14116). Each event is counted. Every single event is followed by an error message. No threshold value management is implemented.
PAGE 118
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14132 Parameter | Name: Data type: UNSIGNED_32 Index: 10443 = 0x28CB EPL index: 0x1C10 C14132 | EPL CN: Link interruptions The code indicates the counter of the Controlled Node for POWERLINK connection interruptions (C14118). Each event is counted. Every single event is followed by an error message. No threshold value management is implemented.
PAGE 119
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14219 Parameter | Name: Data type: UNSIGNED_32 Index: 10356 = 0x2874 EPL index: See subcodes C14219 | EPL device type MN The code contains the device type ID of the declared EPL nodes. Each subcode corresponds to an EPL node with node ID = subcode number.
PAGE 120
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14226 Parameter | Name: Data type: UNSIGNED_8 Index: 10349 = 0x286D EPL index: See subcodes C14226 | EPL node status MN The code indicates the current NMT statuses of the Managing Node. Each subcode corresponds to an EPL node with node ID = subcode number. The EPL node must be enabled via C14029.
PAGE 121
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14229 Parameter | Name: Data type: UNSIGNED_8 Index: 10346 = 0x286A EPL index: See subcodes C14229 | EPL multi-stage node declaration MN This code indicates in which multiplexed cycle the node is queried. The value entered must not exceed the value in code C14074.
PAGE 122
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14234 Parameter | Name: Data type: UNSIGNED_64 Index: 10341 = 0x2865 EPL index: See subcodes C14234 | EPL RPDO EPL RPDO-4 Subcodes Lenze setting Info EPL index C14234/1 0 EPL RPDO 0x1603.0x01 ... ... ... ... C14234/32 0 EPL RPDO 0x1603.
PAGE 123
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14238 Parameter | Name: Data type: UNSIGNED_64 Index: 10337 = 0x2861 EPL index: See subcodes C14238 | EPL RPDO EPL RPDO-8 Subcodes Lenze setting Info EPL index C14238/1 0 EPL RPDO 0x1607.0x01 ... ... ... ... C14238/32 0 EPL RPDO 0x1607.
PAGE 124
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14484 Parameter | Name: Data type: UNSIGNED_8 Index: 10091 = 0x276B EPL index: See subcodes C14484 | EPL address: RPDO The subcodes 1 ... 10 describe the node address of the transmitting EPL node for the PDO channels 1 ... 10 (mapping see C14231 ... C14240). Values > "0" describe the origin of a PRes frame.
PAGE 125
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14531 Parameter | Name: Data type: UNSIGNED_64 Index: 10044 = 0x273C EPL index: See subcodes C14531 | EPL TPDO The code describes the mapping for the TPDO channel.C14789.1 describes the number of valid mapping object entries in this code. Subcodes 1 ... 32 describe the mapping of the single objects.
PAGE 126
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14882 Parameter | Name: Data type: UNSIGNED_8 Index: 9693 = 0x25DD EPL index: not available C14882 | EPL reset cycle counter The value "1" (TRUE) enables the code to reset the cycle counter (C14136). After reset termination the code automatically assumes the value "0" (FALSE). Setting range (min. value | unit | max.
PAGE 127
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14891 Parameter | Name: Data type: UNSIGNED_8 Index: 9684 = 0x25D4 EPL index: See subcodes C14891 | EPL module error responses The subcodes of C14891 determine the response to errors (e.g. communication errors) of the EPL stack.
PAGE 128
11 Parameter reference 11.
PAGE 129
11 Parameter reference 11.3 Parameters of the communication module for slot MXI2 ________________________________________________________________ C14920 Parameter | Name: C14920 | EPL DIP switch Data type: UNSIGNED_8 Index: 9655 = 0x25B7 EPL index: not available The code outputs the current DIP switch setting of the communication module. • The switch with the labelling "128" is displayed on the most significant bit, the switch "1" on the least significant bit.
PAGE 130
11 Parameter reference 11.4 Table of attributes ________________________________________________________________ 11.4 Table of attributes The table of attributes contains information required for communicating with the Servo Drive 9400 via parameters. How to read the table of attributes: Column Meaning Code Parameter name Cxxxxx Name Parameter short text (display text) Text hex Index under which the parameter is addressed.
PAGE 131
11 Parameter reference 11.
PAGE 132
11 Parameter reference 11.4 Table of attributes ________________________________________________________________ 133 Code Name Index Data dec hex DS DA C13219 EPL device type MN 11356 0x2C5C A 3 UNSIGNED_32 C13225 EPL MN: max. data RPDO 11350 0x2C56 A 3 UNSIGNED_16 C13226 EPL status list MN 11349 0x2C55 A 3 UNSIGNED_8 Data type Access Factor 1 R W     CINH  C13228 EPL Time-out isochronous comm.
PAGE 133
11 Parameter reference 11.4 Table of attributes ________________________________________________________________ Code Name Index Data dec hex DS DA R W C14063 EPL MN cycle timing 10512 0x2910 A 2 UNSIGNED_32 1   C14066 EPL CN: max. data PRes RPDO 10509 0x290D A 100 UNSIGNED_16 1   C14067 EPL MN: time-out iso. comm. CN 10508 0x290C A 100 UNSIGNED_32 1   C14071 EPL max. PDO data RPDO PReq 10504 0x2908 E 1 UNSIGNED_16 1   C14072 EPL max.
PAGE 134
11 Parameter reference 11.
PAGE 135
12 POWERLINK objects ________________________________________________________________ 12 POWERLINK objects The following objects specified by the POWERLINK communication profile are supported: EPL index Index name Subindex name Type MN CN Reference / description Lenze 0x1000 NMT_DeviceType_U32 - U32 R R C13030 / C14030 0x1001 ERR_ErrorRegister_U8 - I8 R R C13110 / C14110 0x1006 NMT_CycleLen_U32 - U32 RW RW C13060 / C14060 0x1018.
PAGE 136
12 POWERLINK objects ________________________________________________________________ 137 EPL index Index name Subindex name Type MN CN Reference / description Lenze Values 0x1406.0x02 PDO_RxCommParam_06h_REC MappingVersion_U8 U8 R R Version of PDO mapping 0 0 0x1407.0x00 PDO_RxCommParam_07h_REC NumberOfEntries U8 R R - 2 2 0x1407.0x01 PDO_RxCommParam_07h_REC NodeID_U8 U8 RW RW C13484/8 / C14484/8 0x1407.
PAGE 137
12 POWERLINK objects ________________________________________________________________ EPL index Index name Subindex name Type MN CN Reference / description Lenze 0x1C01.0x01 DLL_MNCollision_REC CumulativeCnt_U32 U32 R - C13116/1 / C14116/1 0x1C02.0x00 DLL_MNCycTimeExceed_REC NumberOfEntries U8 R - - 0x1C02.0x01 DLL_MNCycTimeExceed_REC CumulativeCnt_U32 U32 R - C13117/1 / C14117/1 0x1C02.
PAGE 138
12 POWERLINK objects ________________________________________________________________ 139 EPL index Index name Subindex name Type MN CN Reference / description Lenze Values 0x1E40.0x04 NWL_IpAddrTable_0h_REC ReasmMaxSize_U16 U16 R R Maximum frame size which can be reconstructed from frames arriving in fragments [byte]. 1518 1518 0x1E40.0x05 NWL_IpAddrTable_0h_REC DefaultGateway_IPAD U32 RW RW C13003/1 / C14003/1 0x1E4A.
PAGE 139
12 POWERLINK objects ________________________________________________________________ EPL index Index name Subindex name Type MN CN Reference / description Lenze Values 0x1F8B.0xF1 ...0xFC NMT_MNPReqPayloadList_ AU32 CNPReqPayload U32 - - not supported 36 36 0x1F8B.0xFD ...0xFE NMT_MNPReqPayloadList_ AU32 CNPReqPayload U32 RW - Maximum user data size in the CNaddressing PReq frame [byte], Node ID = subcode no.
PAGE 140
12 POWERLINK objects ________________________________________________________________ 141 EPL index Index name Subindex name Type MN CN Reference / description Lenze 0x1F99 NMT_CNBasicEthernetTimeout _U32 - U32 - RW C13078 / C14078 0x1F9A NMT_HostName_VSTR - VS32 RW RW C13045 / C14045 0x1F9B.0x01 ...0x64 NMT_MultiplCycleAssign_AU8 CycleNo U8 RW RW C13079 / C14079 0 0x1F9B.0xF0 NMT_MultiplCycleAssign_AU8 CycleNo U8 RW RW C13229/1 / C14229/1 0 0x1F9B.
PAGE 141
Index ________________________________________________________________ A Activating changed setting 39 Application as directed 13 Application notes (representation) 10 Approvals 16 Assembly 24 B Basic Ethernet Mode 29 Baud rate 16 Before initial switch-on 35 Buffer size 17 C C00615 | Resp. to imp. device conf. 69 C00636 | Resp. to new module in MXI1 69 C00637 | Resp. to new module in MXI2 70 C01501 | Resp. to comm. error with MXI1 70 C01502 | Resp. to comm.
PAGE 142
Index ________________________________________________________________ C14030 | EPL device type 106 C14034 | EPL identity object 106 C14035 | EPL device type CN 106 C14040 | EPL feature flags 107 C14041 | EPL version 108 C14042 | Current EPL device address 108 C14043 | EPL device address selection 108 C14044 | EPL device address SW 108 C14045 | EPL host name 109 C14060 | EPL cycle time 109 C14062 | EPL MN: Boot timing 110 C14063 | EPL MN cycle timing 110 C14066 | EPL CN: Max.
PAGE 143
