Mechanical installation
Dimensions
3
34
EDK94ZPM113 DE/EN/FR/ES/IT 4.0
1 ... 3 Device size, mounting holes used
Installation backplane
E94AZPM003

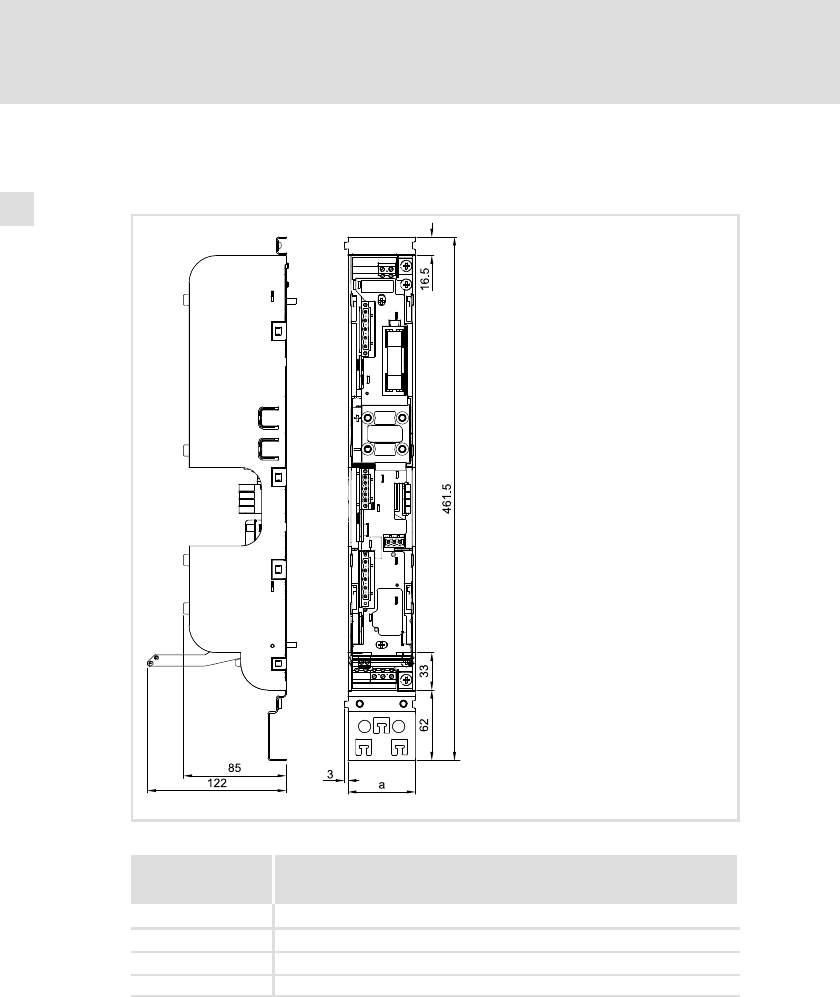

Fig. 3−2 Dimensions of installation backplane
Dimensions [mm]
Type a
E94AZPM0044 60
E94AZPM0094 90
E94AZPM0244 120
E94AZPM0324 120
