User guide

Electrical installation
Wiring
Terminal assignment
4

48
EDK94ZPM113 DE/EN/FR/ES/IT 4.0

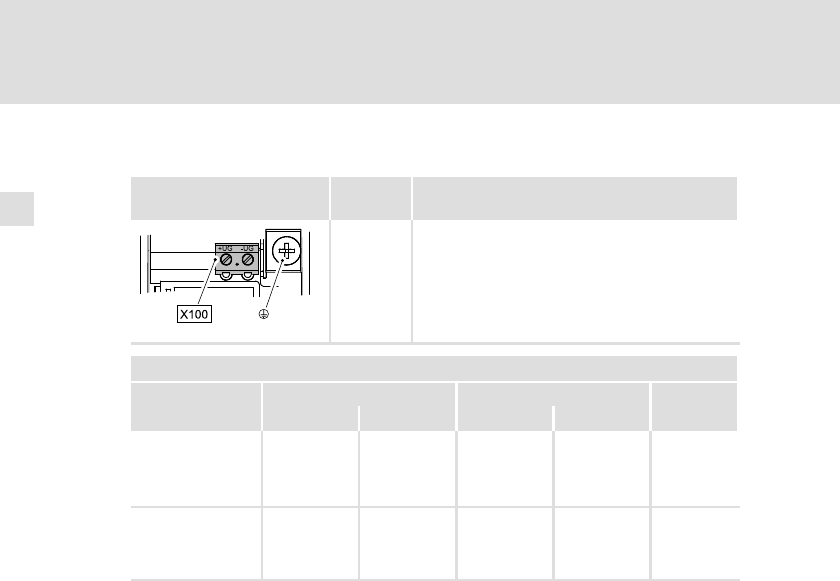

DC bus
Terminal X100
(right part)
Labelling Description
+UG
−UG
Alternative option for DC−bus voltage connection
(compatible to 9300 series).
SSP942X100
Terminal data
Max. conductor cross−section Tightening torque

[mm
2
] [AWG] [Nm] [lb−in]
Device sizes 1 + 2:
flexible
with wire end
ferrule
2.5
12 0.5 ... 0.6 4.5 ... 5.3 PZ0
Device size 3:
flexible
with/without wire
end ferrule
10/16 6 1.2 ... 1.5 10.6 ... 13.3 PH1
