Fuser Drive Motor Removal
1. Remove the right side cover, refer to the “Right Side Cover
Removal” on page 4-4.

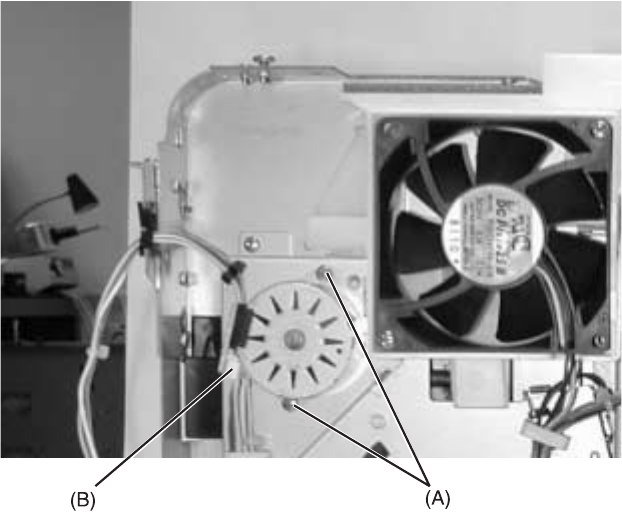

2. Remove the two (2) screws [A] from the fuser drive motor.
3. Disconnect the fuser drive motor cable [B].
4. Remove the fuser drive motor.
