Carriage Home Position Sensor Removal
1. Remove the LVPS board, refer to the “LVPS Assembly
Removal” on page 4-10.

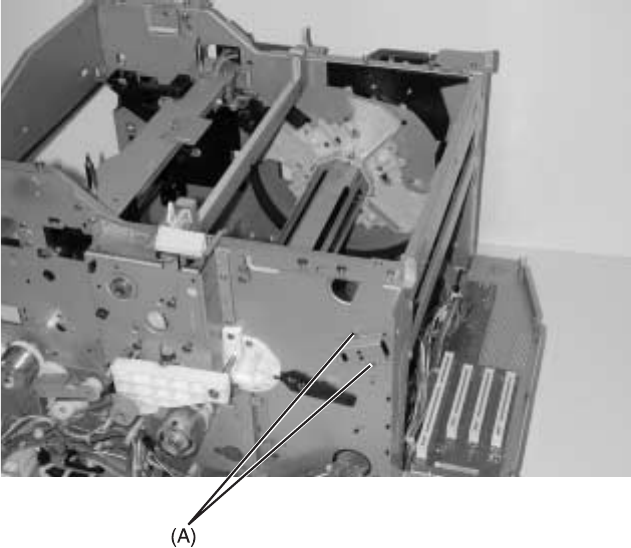

2. Remove the two (2) screws [A] from the carriage home position
sensor.
3. Remove the sensor.
