110
Installing a 250-sheet or 500-sheet drawer
Optional drawers attach under the MFP and optional duplex unit. The MFP automatically recognizes
any drawer that is installed.

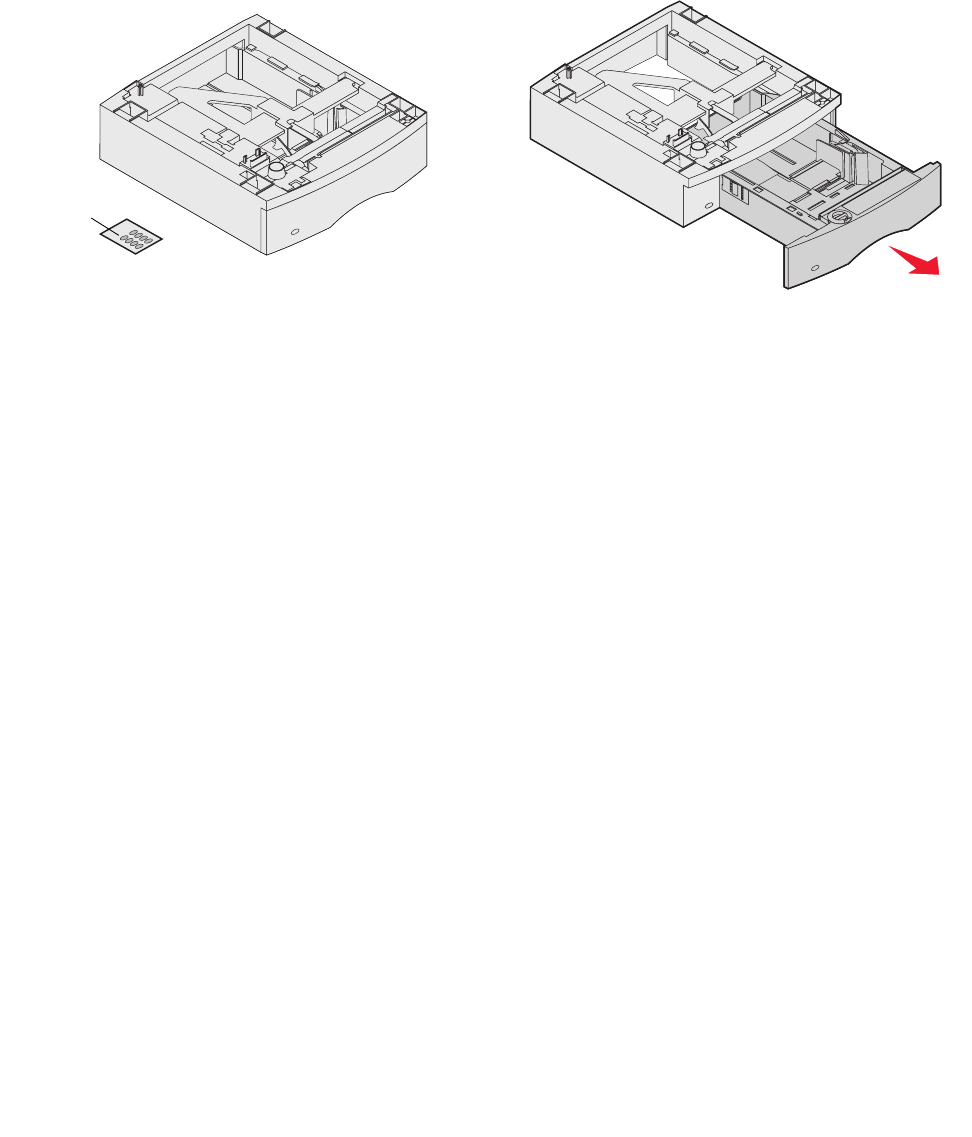

A drawer consists of a tray and a support unit. The 250-sheet drawer and the 500-sheet drawer are
installed the same way.
1 Remove the tray from the support unit. Remove all packing material and tape from both the
support unit and the tray.
2 Place the support unit on top of any previously installed drawers or the table or MFP cabinet
where you plan to use the MFP.
The tab, round peg, and square holes on top of any drawer help you position the support unit
so the edges are aligned properly. Make sure the support unit is securely in place.
Decals
