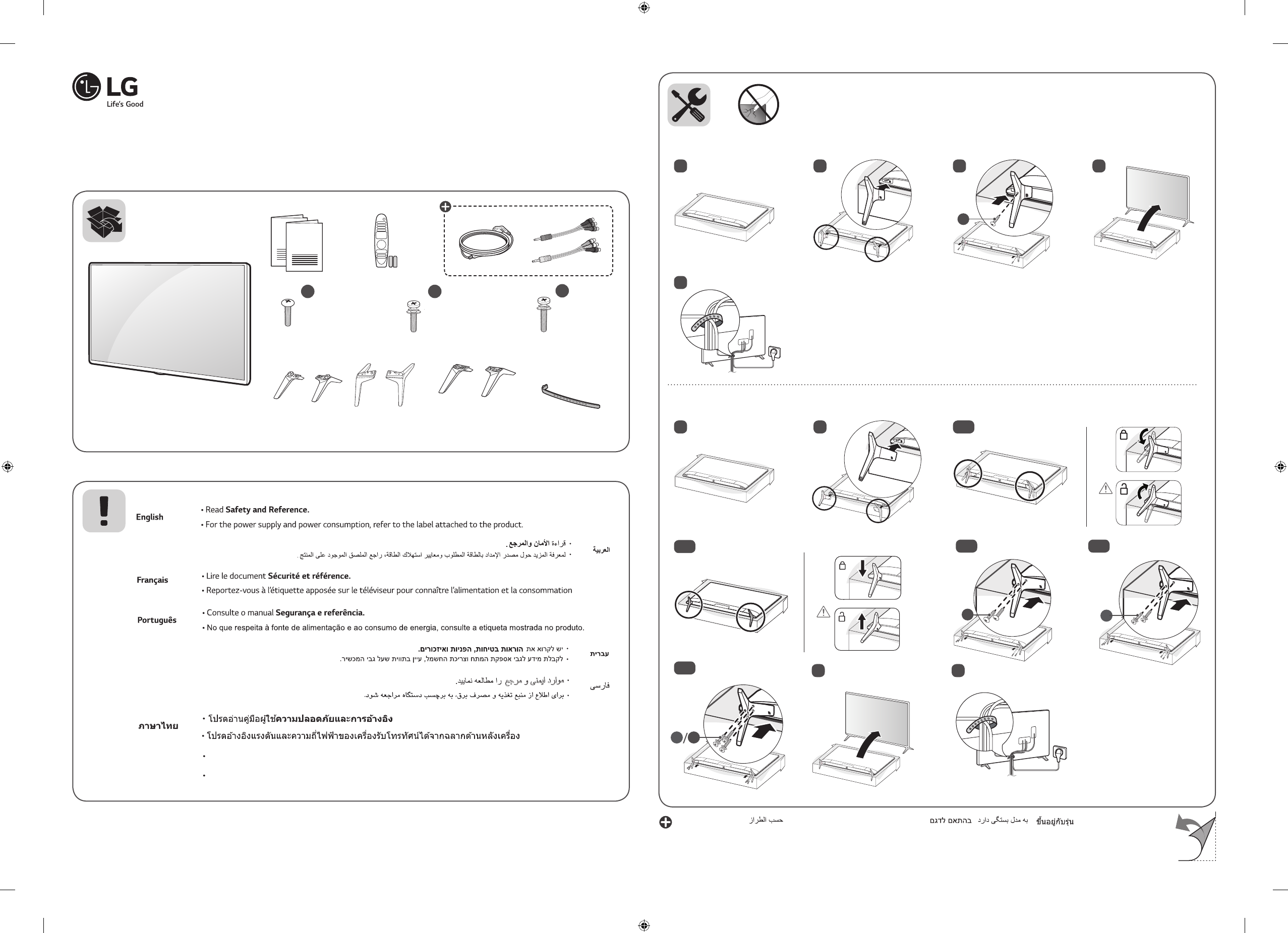

AUDIO VIDEO PR L/MONO AUDIO R PB VIDEO/Y E 2 VIDEO L/MONO AUDIO R 1 D B PB PR L/MONO AUDIO R A 0 VIDEO/Y G C F 43UK6500PTC 43UK6560PTC 50UK6500PTC 50UK6560PTC 55UK6500PVA 55UK6500PTC 55UK6500YVA 65UK6500PVA 65UK6500PTC 65UK6500YVA 75UK6500PTB 75UK7050PVA 75UK7050YVA 75UK7150PTA 86UK6500PTB 86UK7050PVA 86UK7050YVA 86UK7150PTA A B C D E F 975 625 216.4 571 86.4 9.1 9.0 1128 716 230.8 658 86.4 11.7 11.5 1237 777 230.8 718 63.8 16.2 16.0 1456 906 268.8 841 64.
OWNER’S MANUAL Safety and Reference LED TV* * Disclaimer LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. *MFL70193402* (1712-REV00) www.lg.com Copyright ⓒ 2018 LG Electronics Inc. All Rights Reserved.
India region only. (Below sentence is not applicable for above 1920 X 1080 resolution TV models.) ATTENTION: ENGLISH This product is qualified for the BEE Star rating in the ‘Home’ Mode. The Objectives of Star Labeling Program is designed to promote energy efficient products and practices. When the television is initially set up, it is designed to meet the BEE Star Labeling requirements while maintaining optimum picture quality.
Warning! Safety Instructions CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
ENGLISH • Grounding (Except for devices which are not grounded.) -- TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet. Ensure that you connect the earth ground wire to prevent possible electric shock. • Never touch this apparatus or antenna during a lightning storm. You may be electrocuted. • Make sure the power cord is connected securely to the TV and wall socket if not secured damage to the Plug and socket may occur and in extreme cases a fire may break out.
Preparing Separate Purchase B B A A *A < = 10 mm *B < = 18 mm • Use a certified cable with the HDMI logo attached. • If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types) -- High-Speed HDMI®/TM cable (3 m or less) -- High-Speed HDMI®/TM cable with Ethernet (3 m or less) • How to use the ferrite core (Depending on model) -- Use the ferrite core to reduce the electromagnetic interference in the power cord.
ENGLISH 65SK95* 55/65SK85* 65SK80* 65UK77* 65UK75* 65UK69* Model 65UK67* 65UK66* 65UK65* 65UK64* 65UK63* 60UK62* VESA (A x B) (mm) 300 x 300 Standard screw M6 Number of screws 4 Wall mount bracket OLW480B • When transporting a large TV, there should be at least 2 people. • When transporting the TV by hand, hold the TV as shown in the following illustration.
Securing TV to the Wall ENGLISH • Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.) • If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury. • Do not use any unapproved items to ensure the safety and product life span.
Mounting to the Wall ENGLISH Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected.
Connections Antenna/Cable Connect the TV to a wall antenna socket with an RF cable (75 Ω). • Use a signal splitter to use more than 2 TVs. • If the image quality is poor, install a signal amplifier properly to improve the image quality. • If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction. • An antenna cable and converter are not supplied.
ENGLISH • If you connect a gaming device to the TV, use the cable supplied with the gaming device. • In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear. • In PC mode, some resolution settings may not work properly depending on the graphics card.
Using Remote Control (Depending on model) To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse. Make sure to point the remote control toward the remote control sensor on the TV. 1 2 (Some buttons and services may not be provided depending on models or regions.) (POWER) Turns the TV on or off.
Using Magic Remote Control (Depending on model) ENGLISH The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. When the message “Magic Remote battery is low. Please change the battery.” is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching the and ends to the label inside the compartment, and close the battery cover.
Registering Magic Remote Control (Australia region only) How to register the Magic Remote Control 1 P ut batteries into the Magic Remote and turn the TV on. 2 Point the Magic Remote at your TV and press the Wheel (OK) on the remote control. * If the TV fails to register the Magic Remote, try again after turning the TV off and back on. Freeview Plus provides access to content and services from the Freeview networks.
Abnormal Display ENGLISH • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product. • This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.
Specifications (Depending on country) ENGLISH Broadcasting specifications Digital TV (Depending on country) Analogue TV (Depending on country) Television system DVB-T/T21 DVB-T/T2/C/S/S22 PAL B/B, PAL B/G, PAL D/K, PAL-I SECAM B/G, SECAM D/K NTSC-M Programme coverage VHF, UHF C-Band2, Ku-Band2 VHF, UHF, CATV Maximum number of storable prgrammes DVB-T/T2 & Analogue TV : 3,000 DVB-S/S2 : 6,000 External antenna impedance 75 Ω 1 Only DVB-T2 support models.
(Except for 32LK61*V*) Wireless module (LGSBWAC72) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) ENGLISH Frequency Range Output Power (Max.) 2400 to 2483.5 MHz 5150 to 5725 MHz 5725 to 5850 MHz (Not for EU) 14 dBm 16.5 dBm 11.5 dBm Bluetooth Frequency Range Output Power (Max.) 2400 to 2483.5 MHz 8.5 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
Open Source Software Notice Information In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This offer is valid for a period of three years after our last shipment of this product.
Environmental Information (Only India) ENGLISH Disposal of your old appliance (as per e-waste Rules) 1. When this crossed out wheeled bin symbol is depicted on the product and its operator’s manual, it means the product is covered by the e-waste Management and Handling Rules, 2011 and are meant to be recycled, dismantled, refurbished or disposed off. 2. Do’s: a. The product is required to be handed over only to the authorized recycler for disposal. b.
