Freestanding/Semi Built In Models

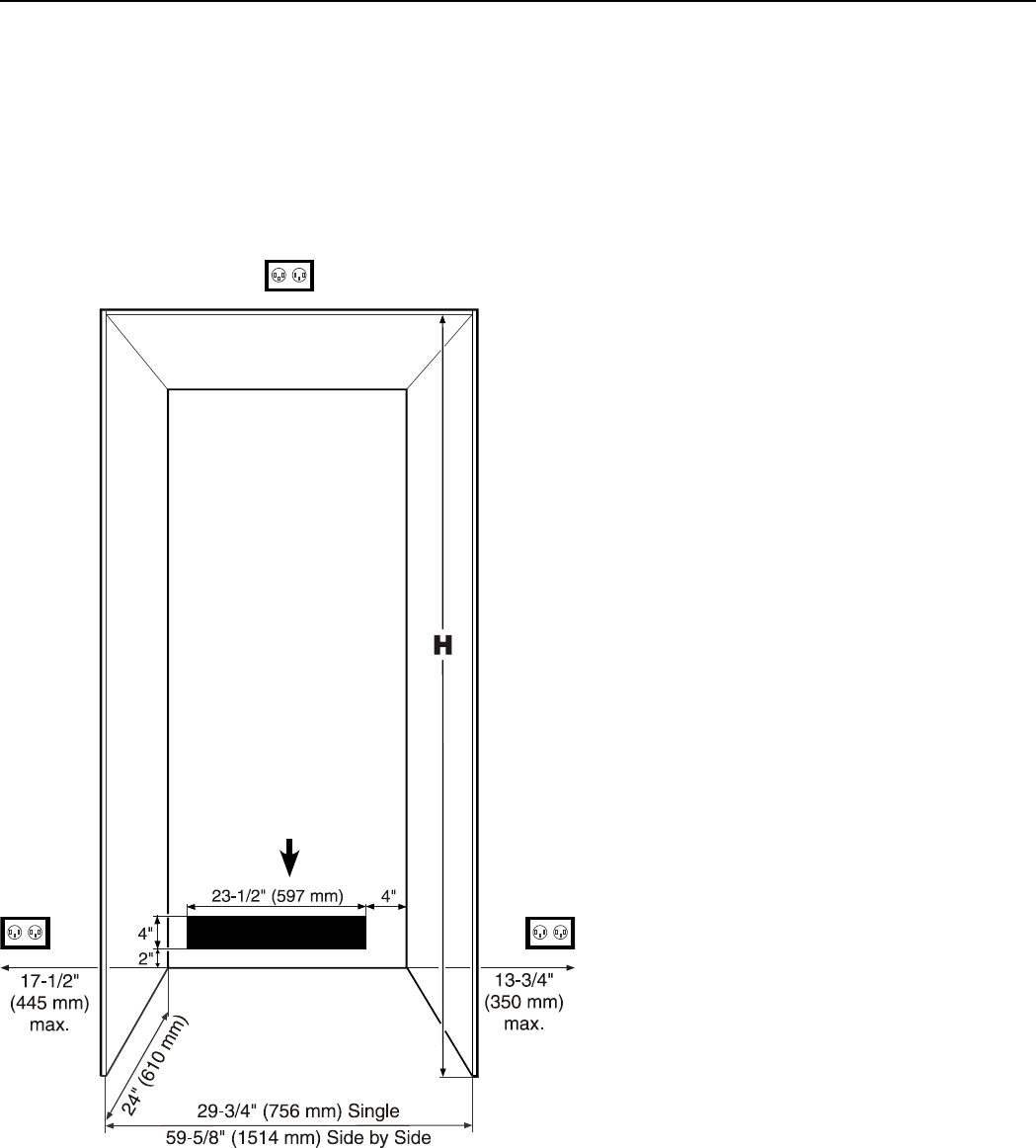

Cabinet Opening Dimensions - 30" and 60" Models
CS 1400, CS 1611, CS 1660, CS 1640, SBS 32S1
7
The appliance can be used freestanding or semi built-in.
If semi built-in, please consider the cabinet opening dimensions.
IMPORTANT
Do not install the shut-
off valve behind the
appliance.
(CS 1660 only)
The power cord comes out of the appliance top.
The location of the electrical outlet can be within a
radius of 90 inch from the appliance top center.
The water line lead out
position for CS 1660
models can be within
the shaded area.
With the electrical outlet at the bottom,
please consider the maximum distance
left or right.
CS 1400
H = 73-3/4" (1873 mm)
CS 16.., SBS 32..
H = 80" (2032 mm)
