User guide

General Description
A Division of:
Light Engineered Displays, Inc.
109 Portwatch Way
Wilmington, N.C. 28412
Phone: [phone]
Fax: [phone]
Internet: www.ledinc.com
Email: [e-mail]
AMC
SERIES

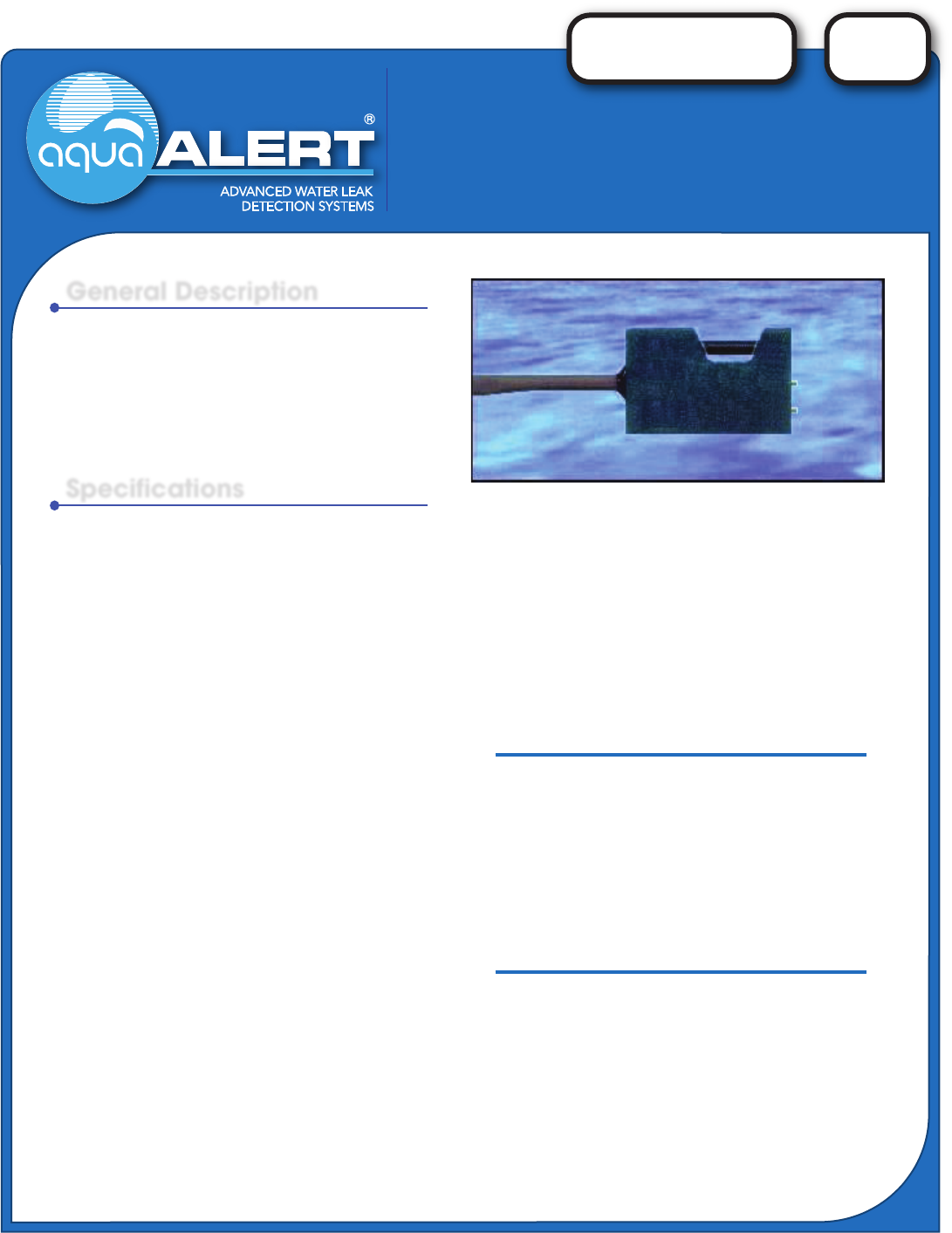

AMC-5002B DUAL
LIQUID SENSOR
The AMC-5002B Dual Liquid Sensor detects
and distinguishes leaks of water and petroleum
based liquids at a single location. The unique
design allows flexability of installation and quick
alarm response once in contact with liquid; it
also responds faster to deisel.
Specifications
 Detectable Liquids
Water, gasoline, diesel, waste oil and
petrolium products
 Sensor
Immersion probe consisting of conductivity
electrodes and a fully reversable, liquid
hydrocarbon sensitive element(discriminates
between water and hydrocarbons). Certified
intrinsically safe.
WATER circuit: Normally open
PETROLEUM circuit: Normally closed
 Size
1.6” (41mm) L x 1” (25mm) W x 0.38” (96mm)
Thick
 Response Time
Depends on operating conditions and
temperature
Water : Instantaneous
Gasoline : Under 3 Minutes
Diesel : Under 1.5 minutes
Waste Oil : Depends on mixture ratio
 Repeatability
Excellent, even after repeated immersions
 Installation Wiring
Intrinsically safe, four conductor shielded
cable
 Operation Temperatures
Water : 0ºC to 50ºC (32ºF to 122ºF)
Petroleum : -40ºC to 50ºC (-40ºF to 122ºF)
 Sensor Life Expectancy
Five years
 Warranty
One year (limited warranty)
IMPORTANT: This device must be used in conjunction with
an LED (or compatible) liquid monitor, or an approved barrier
and in compliance with applicable federal, provincial, state
and local laws and regulations. Product delection should be
based on physical specifications and limitations and compat-
ibility with the environment and materials to be handled. LED
MAKES NO WARRANTY OF FITNESS FOR A PARTICU-
LAR USE. All information and specifications in this literature
are based on the latest product data available at the time of
publication. LED reserves the right to make changes at any
time in prices, materials, specifications and to discontinue
models without notice or obligation.
