HID Downlight C7E17HW
Page 2 of 2 7" Aperture, ED17 (Enclosed) Ceramic Metal Halide, Wide Beam
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Thomas Group LLC (Lightolier Division) • A0504
Job Information Type:
2,625
1,750
875
2,750
1,375
4,125
5,500
30°
60°
30°
60°

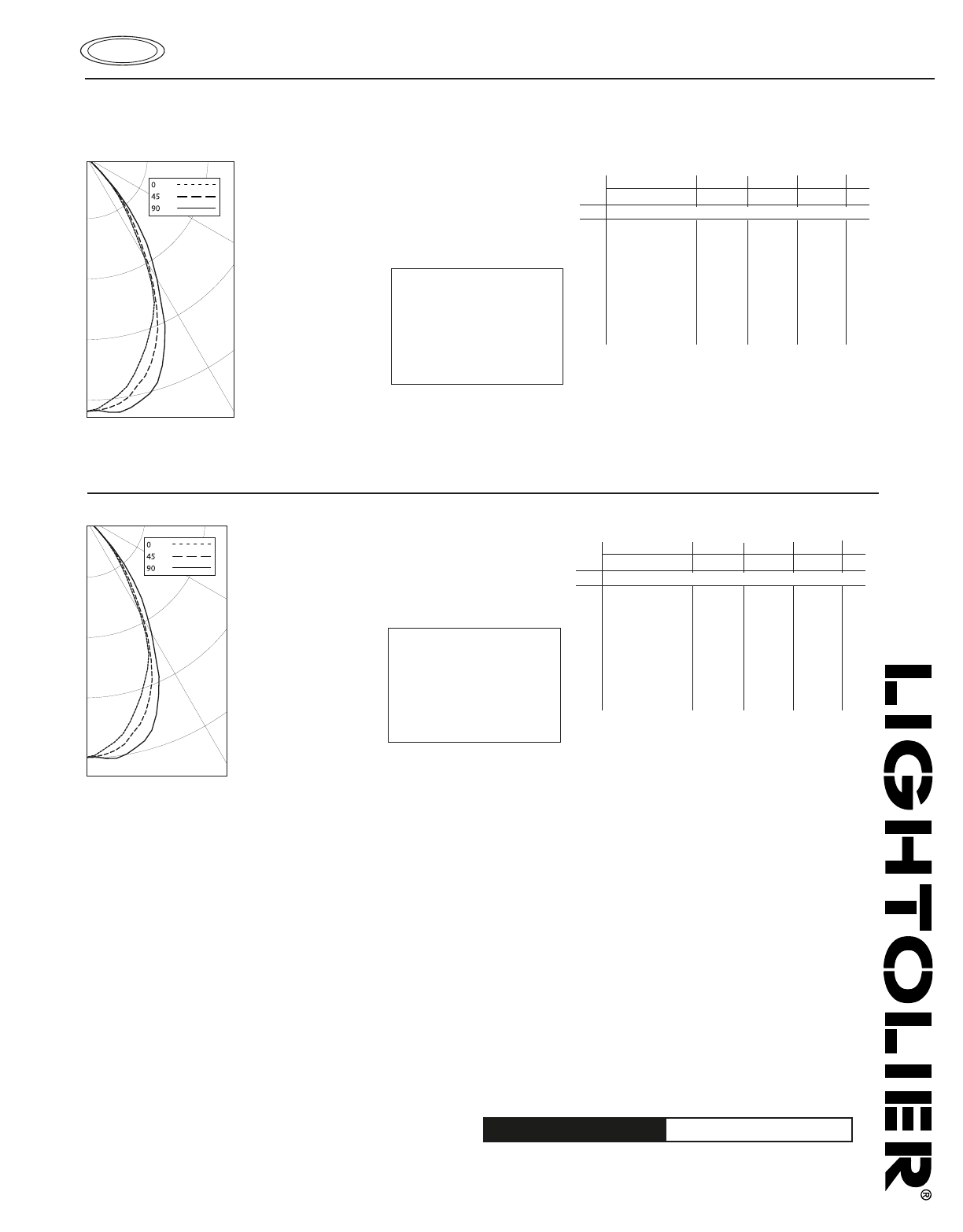

70W ED17 (ENCLOSED) PHILIPS COATED MH LAMP. LUMEN RATING = 6000 LMS., ELECTRONIC AROMAT BALLAST, CL FINISH REFLECTOR
ANGLE 0° 45° 90°
0 3661 3661 3661
5 3538 3625 3689
10 3352 3507 3664
15 3017 3262 3524
20 2666 2901 3192
25 2310 2392 2677
30 1684 1780 2031
35 1099 1210 1512
40 704 784 937
45 263 295 316
50 29 34 31
55 5 4 6
60 0 0 0
65 0 0 0
70 0 0 0
75 0 0 0
80 0 0 0
85 0 0 0
90 0 0 0
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 2370 39.51 68.49
0-40 3175 52.93 91.77
0-60 3460 57.68 100
0-90 3460 57.68 100
40-90 284 4.75 8.23
60-90 0 0 0
90-180 0 0 0
0-180 3460 57.68 100
LUMINANCE SUMMARY - CD. / SQ. M.
ANGLE 0° 45° 90°
45 13056 14682 15733
55 276 215 339
65 0 0 0
75 0 0 0
85 0 0 0
** EFFICIENCY = 57.7% ** CERTIFIED TEST REPORT NO. 2621FR, DATE: MAY 20, 2004
SC(ALONG) =.9 COMPUTED BY LSI PROGRAM **TEST-LITE**
SC(ACROSS) =1.0
CEILING 80% 70% 50% 30%
WALL 70 50 30 10 50 10 50 10 50 10 0
RCR
0 .69 .69 .69 .69 .67 .67 .64 .64 .61 .61 .58
1 .66 .65 .63 .62 .63 .61 .61 .59 .59 .58 .55
2 .63 .61 .59 .57 .60 .57 .58 .55 .56 .54 .52
3 .61 .58 .55 .53 .57 .53 .55 .52 .54 .51 .50
4 .58 .55 .52 .50 .54 .49 .53 .49 .52 .48 .47
5 .56 .52 .49 .47 .51 .46 .50 .46 .49 .46 .44
6 .53 .49 .46 .44 .49 .44 .48 .43 .47 .43 .42
7 .51 .46 .43 .41 .46 .41 .45 .41 .44 .40 .40
8 .49 .44 .41 .39 .43 .38 .43 .38 .42 .38 .37
9 .46 .41 .38 .36 .41 .36 .40 .36 .40 .36 .35
10 .44 .39 .36 .34 .39 .34 .38 .34 .38 .34 .33
LUMINAIRE INPUT WATTS = 78.0
Coefficients of Utilization
Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
100W ED17 (ENCLOSED) PHILIPS COATED MH LAMP. LUMEN RATING = 9000 LMS., ELECTRONIC AROMAT BALLAST, CL REFLECTOR TRIM
ANGLE0° 45° 90°
0 5488 5488 5488
5 5304 5434 5530
10 5025 5258 5493
15 4523 4890 5284
20 3996 4349 4786
25 3461 3586 4013
30 2524 2667 3044
35 1646 1812 2265
40 1052 1173 1403
45 392 439 471
50 41 47 44
55 4 4 5
60 0 0 0
65 0 0 0
70 0 0 0
75 0 0 0
80 0 0 0
85 0 0 0
90 0 0 0
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 3553 39.48 68.56
0-40 4759 52.88 91.84
0-60 5182 57.59 100
0-90 5182 57.59 100
40-90 423 4.7 8.16
60-90 0 0 0
90-180 0 0 0
0-180 5182 57.59 100
LUMINANCE SUMMARY - CD. / SQ. M.
ANGLE 0° 45° 90°
45 19435 21873 23449
55 230 231 323
65 0 0 0
75 0 0 0
85 0 0 0
** EFFICIENCY = 57.6% ** CERTIFIED TEST REPORT NO. 2630FR, DATE: MAY 23, 2004
SC(ALONG) = .9 COMPUTED BY LSI PROGRAM **TEST-LITE**
SC(ACROSS) = 1.0
CEILING 80% 70% 50% 30%
WALL 70 50 30 10 50 10 50 10 50 10 0
RCR
0 .69 .69 .69 .69 .67 .67 .64 .64 .61 .61 .58
1 .66 .64 .63 .62 .63 .61 .61 .59 .59 .57 .55
2 .63 .61 .59 .57 .60 .57 .58 .55 .56 .54 .52
3 .61 .57 .55 .53 .57 .53 .55 .52 .54 .51 .50
4 .58 .55 .52 .50 .54 .49 .53 .49 .52 .48 .47
5 .56 .52 .49 .46 .51 .46 .50 .46 .49 .45 .44
6 .53 .49 .46 .44 .48 .44 .48 .43 .47 .43 .42
7 .51 .46 .43 .41 .46 .41 .45 .41 .44 .40 .40
8 .49 .44 .41 .39 .43 .38 .43 .38 .42 .38 .37
9 .46 .41 .38 .36 .41 .36 .40 .36 .40 .36 .35
10 .44 .39 .36 .34 .39 .34 .38 .34 .38 .34 .33
LUMINAIRE INPUT WATTS = 110
Coefficients of Utilization
Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
3,500
