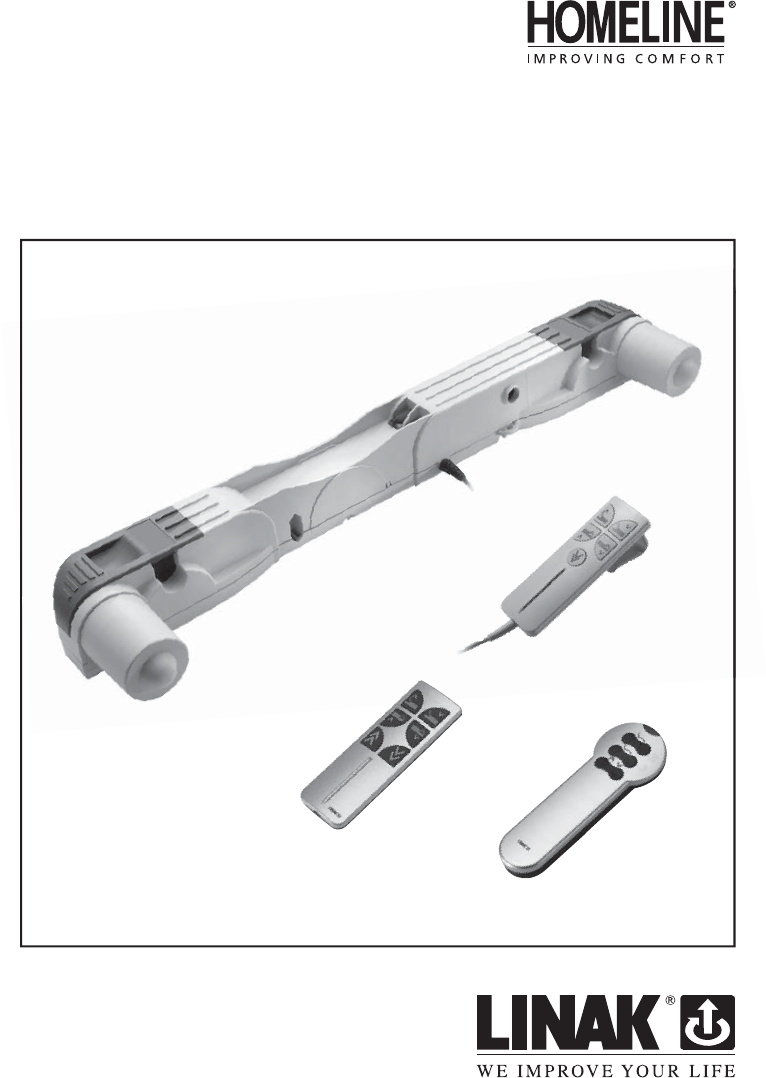

TWINDRIVE ® TD1 220/250 To learn more about LINAK please visit: W W W. L I N A K .
Contents Preface ................................................................................................................................................................. 4 Important information ....................................................................................................................................... 5 Safety instructions ..............................................................................................................................................
Preface We are delighted that you have chosen a product from LINAK A/S. LINAK systems are high-tech products based on many years of experience in the manufacture and development of actuators, electric control boxes, controls, and chargers. We are also constantly improving our products to meet customer requirements. This User Manual will tell you how to install, use, and maintain your LINAK TWINDRIVE® products. We are sure that the TWINDRIVE® products will give you many years of problem-free operation.
Important information Important information on LINAK® products can be found under the following headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being ruined. Safety instructions Safe use of the system is possible only when the operating instructions are read completely and the instructions contained are strictly observed.
(continued) During operation • Take care that the cables are not damaged. • Unplug the mains cable on mobile equipment before it is moved. • The products must only be used in an environment, which corresponds to their IP protection. Repairs In order to avoid the risk of malfunction, all TWINDRIVETM repairs must only be carried out by authorised LINAK workshops or repairers, as special tools must be used and special gaskets must be fitted.
Misc. on the TWINDRIVE® TD1 220/250 system This system is a TWINDRIVE system developed for leisure beds and for indoor use in private homes. We advise children and disabled persons not to use the TD1 system without supervision. Warranty There is 36 months’ warranty on the TWINDRIVE® products TD1 and HB10/ HB20 against manufacturing faults calculated from the production date of the individual products (see label).
Description of the TWINDRIVE® TD1 220/250 system Each TWINDRIVE® TD1 unit consists of 1 - 2 internal motors and a built-in control box function which makes it a very compact unit. The mains cable is fixed. Only the handset and optional 1 - 2 external actuators must be connected. Application of the TWINDRIVE® TD1 220/250 system: Irrespective of the load the duty cycle 10% ~ 6 min./ hour or max. 2 min.
Mounting guidelines for the TWINDRIVE® TD1 220/250 system for 2 x 9V batteries Reset key Handset socket Twist bracket Headrest Mains cable Closing device Footrest Figure 1 (Assembly overview) Mounting the handset Recommended usage of the strain relief the PCB. Otherwise the DINplug and print might be damaged when overstraining the cable.
Connection to the mains Please note that the TD1 must only be connected to the voltage stated on the label. The HB10/HB20 with cable Use of the handset up/down operational (1-2 channels) common operation up/down (option) the up/down operation is only activated when holding the button down.
Start-up - How to install RF handset: The TD1 can accept commands from up to 2 RF handsets. From the factory the TD1 cannot recognize any RF handsets at all and must be matched to the RF handset(s) by the end-user/bed manufacturer before these can control the TD1 operation. Activating the learning mode: • Activate the reset key on the TD1 by using a finger to keep the button pressed.
Changing of batteries 1. Remove the battery cover (see Figure 1). 2. Use a blunt instrument to remove the battery. 3. Place 3 new batteries type R03 or LR03 (AAA) in the transmitter. Press a button for 3 sec. If above procedure not is performed the handset will function anyway after app. 5 minutes.
Exchange/connection of 9V batteries (Type 9V 6F22 or 6LR61) 1. Remove the clamps from the battery (Figure 3). 2. Use a blunt instrument with a diameter of Ø6 mm to remove the battery (Figure 4). 3. Push the battery upwards via the two holes in the bottom of the unit (Figure 5). Figure 3 Figure 4 Figure 5 Disposal of batteries. "Details regarding safe disposal of used and leaking batteries: Batteries should be disposed in accordance with appropriate federal, state and local regulations.
Accessories and repair Ordering accessories Order from your nearest LINAK® dealer or subsidiary. Accessories Please contact your nearest LINAK dealer for information. Repairs Systems should only be repaired by an authorised LINAK servicecentre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date.
Child lock (only by HB20RF Handset) To enable the function the position of the switch in the front of the transmitter must be changed. To unlock the handset press up and down keys of the 2nd row at the same time for one sec. When the blue LED turns on the handset is unlocked for 10 sec. after last key press. Then it automatically locks again. If the up + down key is pressed more than 2 sec. the handset will lock again.
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend to disassemble our product into as many fractions as possible at the disposal and try to make it recycable. As examples of main groups within waste fractions we can mention: Metal, plastic, cable shoe, combustible waste, and collection for recovery.
Mains cut-off (optional) The mains cut-off function disconnect the power to the TD1 system, if the system is not used. The mains cut-off is 100% maintance-free. The mains cut-off is available in 2 versions - an external version or an internal version. The external version is a small box placed on the plug of the mains cable. The internal version is integrated in the TD1 and thereby not visible. TD1 systems with internal mains cut-off are labelled TD1XXXXXXXXX2XX.
2) To maintain the correct angle of rotation of the headrest and the footrest it is important that the twist bracket is welded according to the above instructions. Non-compliance with the instructions could lead to a smaller angle of rotation or in a worst case damage to TD1. It is very important that the axle distance is kept. Example for correct welded twist bracket to the bedframe. 3) Before mounting, both mounting brackets must be pulled out to their outer position by pushing them back.
Label for the TWINDRIVE® TD1 System: Label for the Handset HB10: Label for the Handset HB20: HB22000+00000 19
DRAWING APPENDIX TWINDRIVE® TD1 System: HB10 Transmitter HB20 Transmitter 20
Manufacturer's declaration Implementation with regard to the Community legislation on machinery Directive 98/37/EC attachment II B: LINAK A/S, subsidiaries or representatives, (see back cover) prohibit that actuators are put into service until the machinery into which the actuator is to be incorporated has been declared in conformity with the provisions of all relevant Directives.
