DEMO MANUAL DC1012A

DESCRIPTION

LTC2499/LTC2497/LTC2495

24-/16-Bit Easy Drive

8-/16- Channel Delta Sigma

ADC with I

C Interface

Demonstration circuit 1012A-A features the LTC

2499

8-/16-channel, 24-bit delta sigma ADC with Easy Drive™

inputs. Key DC specifications include 2ppm INL, 1ppm

offset, 25ppm full-scale error and 10nV/°C offset drift. In

the 6.8Hz/600nV

RMS

mode, input normal mode rejection

of 50Hz and 60Hz noise is better

than 87dB. The LTC2499

also includes an internal temperature sensor that is accurate

to 2°C over the operating temperature range.

DC1012A-B features the LTC2497 16-bit ∆Σ ADC that is

pinout and software compatible with the LTC2499.

DC1012A-C features the LTC2495 16-bit ∆Σ ADC that also

includes a PGA with a gain range from 1 to 256 and the

same temperature sensor as the

LTC2499.

L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and

Easy Drive, QuikEval and C-Load are trademarks of Linear Technology Corporation. All other

trademarks are the property of their respective owners.

DC1012A is a member of Linear Technology’s QuikEval™

family of demonstration boards. It is designed to allow

easy evaluation of the LTC2499, LTC2497 or LTC2495.

DC1012A may be connected directly to the target ap-

plication’s analog signals while using the DC590 USB

serial controller board and QuikEval software to measure

performance. The exposed ground planes allow proper

grounding to

prototype circuitry. After evaluating with

LT C ’s software, the digital signals can be connected to

the application’s processor/controller for development

of the serial interface.

Design files for this circuit board are available at

http://www.linear.com/demo

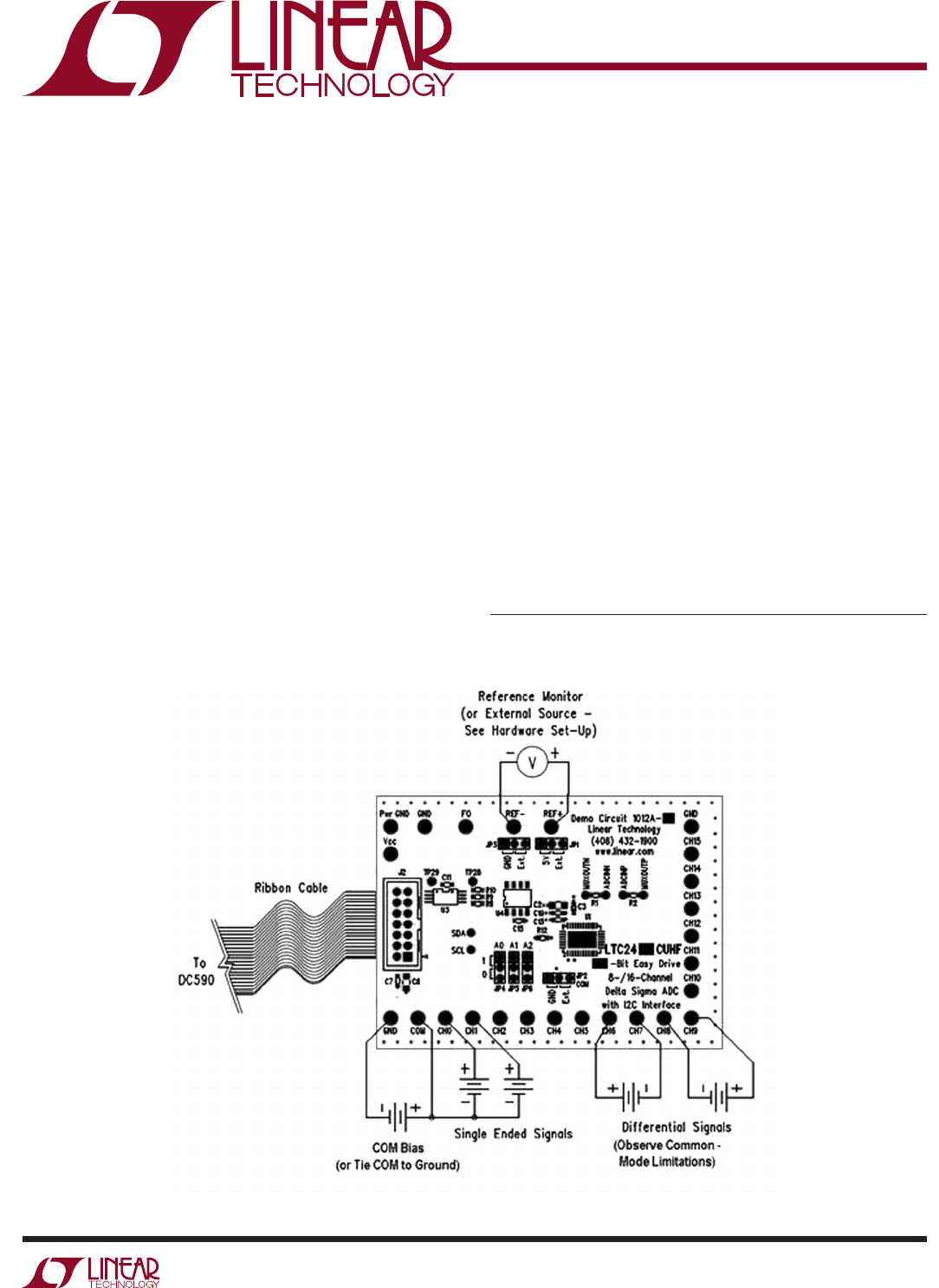

Figure 1. Proper Measurement Equipment Setup
