LT1118/LT1118-2.5

LT1118-2.85/LT1118-5

1118fc

Low I

, Low Dropout,

800mA, Source and Sink

Regulators Adjustable and

Fixed 2.5V, 2.85V, 5V Output

The LT

1118 family of low dropout regulators has the

unique capability of maintaining output regulation while

sourcing or sinking load current. The 2.85V output voltage

regulator is ideal for use as a Boulay termination of up to

27 SCSI data lines. The regulator maintains regulation

while both sourcing and sinking current, enabling the use

of active negation drivers for improved noise immunity on

the data lines. Regulation of output voltage is maintained

for TERMPWR voltages as low as 4.0V. When unloaded,

quiescent supply current is a low 600µA, allowing continu-

ous connection to the TERMPWR lines. An ultralow power

shutdown mode is also available on the SO-8 version. In

Shutdown the output is high impedance and supply cur-

rent drops to less than 10µA.

Current limits in both sourcing and sinking modes, plus

on-chip thermal shutdown make the circuit tolerant of

output fault conditions.

The LT1118 is available in 3-lead SOT-223 and 8-lead SO

packages.

■

Active Negation SCSI Terminations

■

Computers

■

Disk Drives

■

CD-ROM

■

Supply Splitter

■

Regulates While Sourcing or Sinking Current

■

Provides Termination for up to 27 SCSI Lines

■

600µA Quiescent Current

■

Ultralow Power Shutdown Mode

■

Current Limit and Thermal Shutdown Protection

■

Stable for Any C

LOAD

≥ 0.22µF

■

Fast Settling Time

■

1V Dropout Voltage

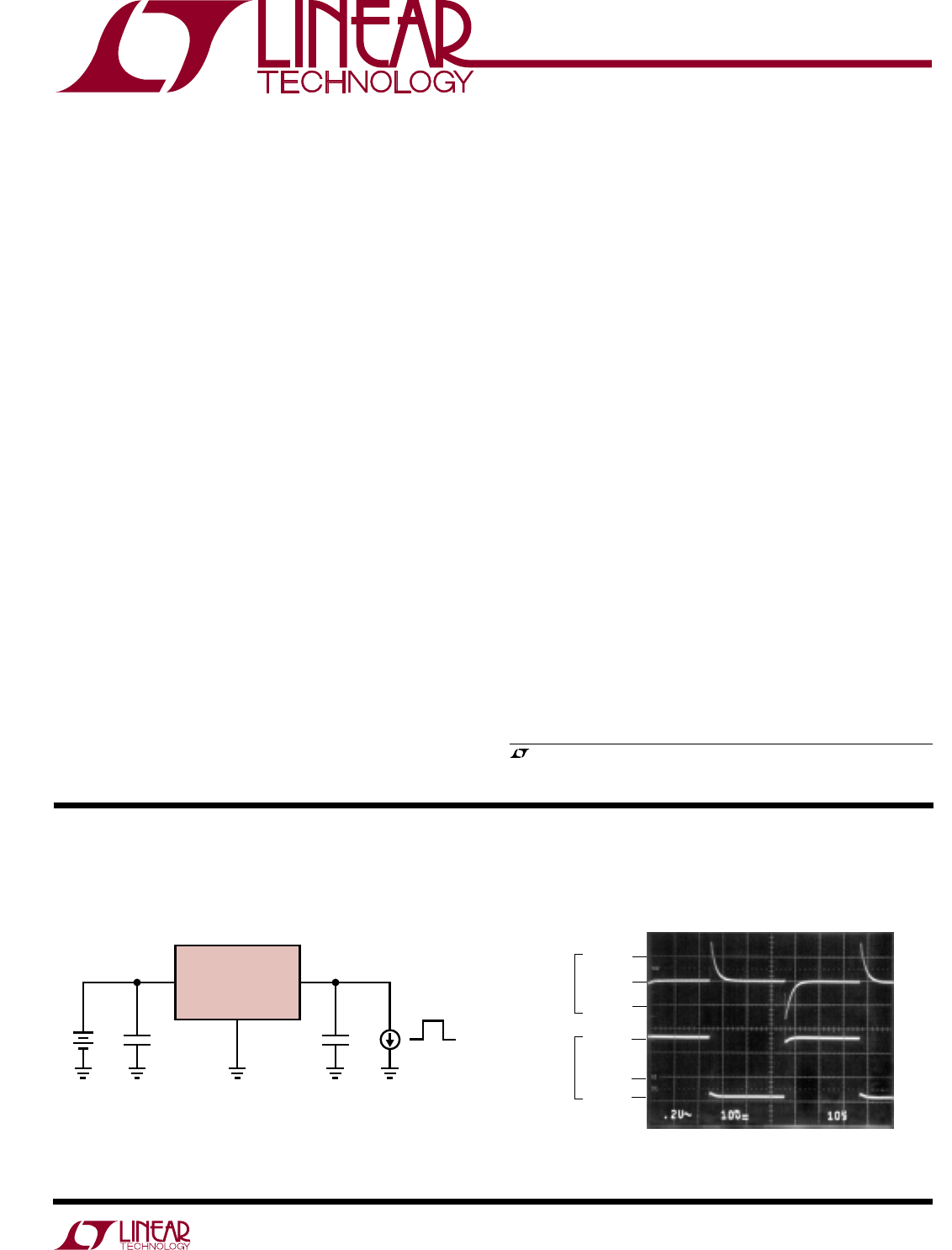

Load Transient Response

1118 TA02.tif

0.2V

–0.2V

LT1118-2.85

GND

1118 TA01

2.2µF

1µF

CERAMIC

LOAD

OUT

LOAD

–400mA

800mA

0mA

∆V

OUT

DESCRIPTIO

FEATURES

APPLICATIO S

TYPICAL APPLICATIO

, LT, LTC and LTM are registered trademarks of Linear Technology Corporation.

All other trademarks are the property of their respective owners.

Summary of content (8 pages)
