LTC3417A-2

3417a2fa

Dual Synchronous

1.5A/1A 4MHz

Step-Down DC/DC Regulator

The LTC

3417A-2 is a dual constant frequency, synchro-

nous step-down DC/DC converter. Intended for medium

power applications, it operates from a 2.25V to 5.5V input

voltage range and has a constant programmable switching

frequency, allowing the use of tiny, low cost capacitors

and inductors 2mm or less in height. Each output voltage

is adjustable from 0.8V to 5V. Internal synchronous, low

DS(ON)

power switches provide high efﬁ ciency without

the need for external Schottky diodes.

A user selectable mode input allows the user to trade

off ripple voltage for light load efﬁ ciency. Burst Mode

operation provides high efﬁ ciency at light loads, while

Pulse Skip mode provides low ripple noise at light loads.

A phase mode pin allows the second channel to operate

in-phase or 180° out-of-phase with respect to channel 1.

Out-of-phase operation produces lower RMS current on

and thus lower stress on the input capacitor.

To further maximize battery life, the P-channel MOSFETs

are turned on continuously in dropout (100% duty cycle)

and both channels draw a total quiescent current of only

100µA. In shutdown, the device draws <1µA.

OUT2

Efﬁ ciency

(Burst Mode Operation)

FEATURES

High Efﬁ ciency: Up to 95%

1.5A/1A Guaranteed Minimum Output Current

Synchronizable to External Clock

No Schottky Diodes Required

Programmable Frequency Operation: 1.5MHz or

Adjustable From 0.6MHz to 4MHz

Low Ripple (<35mV

P-P

) BurstMode

Operation

: 125μA in Sleep

Low R

DS(ON)

Internal Switches

Short-Circuit Protected

: 2.25V to 5.5V

Current Mode Operation for Excellent Line and Load

Transient Response

Ultralow Shutdown Current: I

< 1µA

Low Dropout Operation: 100% Duty Cycle

Power Good Ouput

Phase Pin Selects 2nd Channel Phase Relationship

with Respect to 1st Channel

Internal Soft-Start with Individual Run Pin Control

Available in Small Thermally Enhanced

(5mm × 3mm) DFN and 20-Lead TSSOP Packages

APPLICATIONS

GPS/Navigation Systems

Automotive Instrumentation

PC Cards

Industrial Power Supplies

General Purpose Point of Load DC/DC

DESCRIPTION

L, LT, LTC, LTM and Burst Mode are registered trademarks of Linear Technology Corporation.

All other trademarks are the property of their respective owners. Protected by U.S. Patents

including 5481178, 6580258, 6304066, 6127815, 6498466, 6611131, 6144194.

FREQ

SW1

RUN1

FB1

TH1

SW2

RUN2

FB2

TH2

LTC3417A-2

GND

10µF

1.5µH

2.2µH

22pF

511k

22pF

866k

412k

22µF

5.9k 2.87k

2200pF

6800pF

3417A-2 TA01

47µF

OUT1

1.8V

1.5A

OUT2

2.5V

2.5V TO 5.5V

LOAD CURRENT (A)

0.001

EFFICIENCY (%)

100

0.01 0.1 1

3417A-2 TA01a

POWER LOSS (W)

0.001

0.01

0.1

0.0001

EFFICIENCY

REFER TO FIGURE 4

POWER LOSS

= 3.6V

OUT

= 2.5V

FREQ = 1MHz

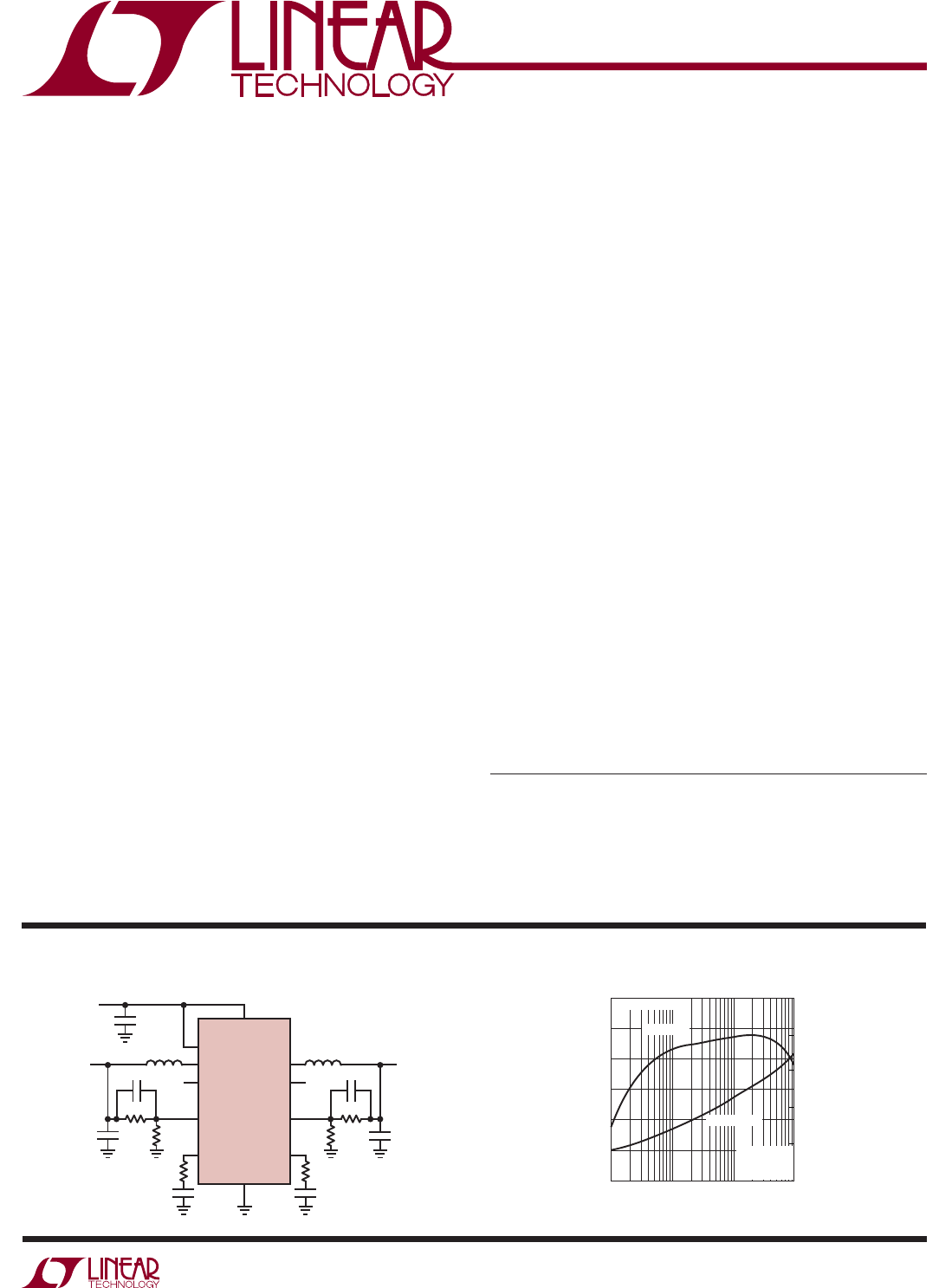

TYPICAL APPLICATION
