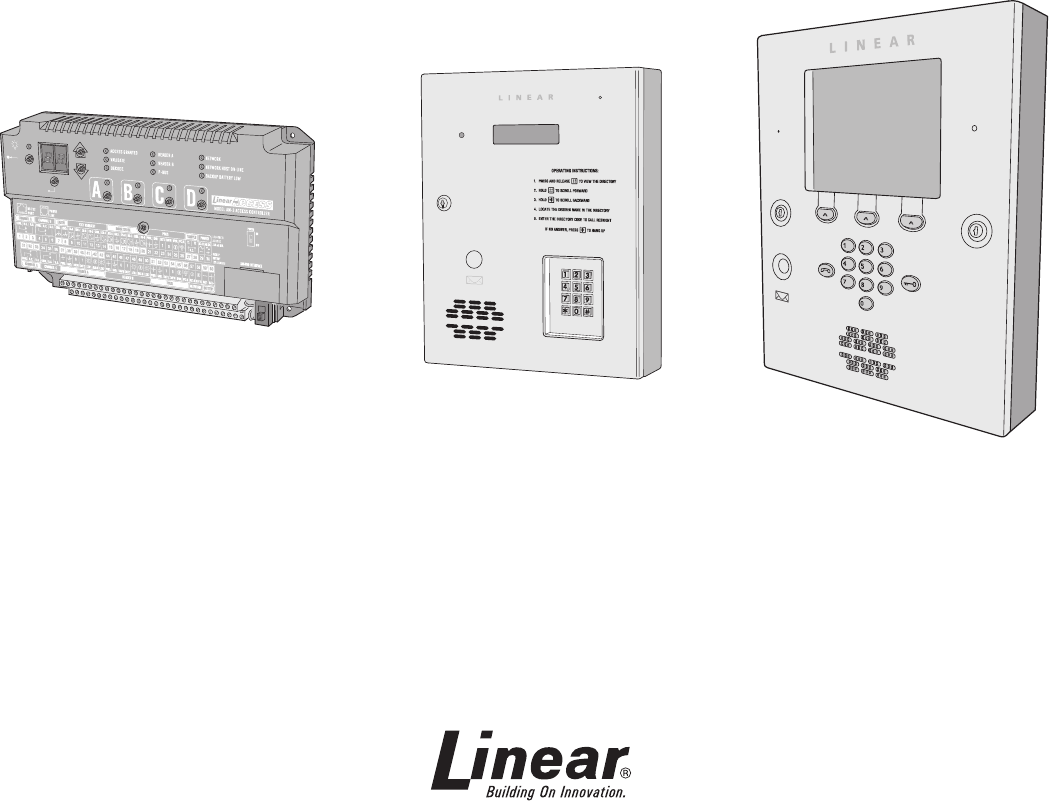

PRINTER’S INSTRUCTIONS: INSTR,ACCESS LOCAL PROGRAMMING - LINEAR P/N: 228505 A - INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 8.500” X 11.000” - SCALE: 1-1 - FOLDING: ALBUM-FOLD - BINDING: SADDLE-STITCH AE1000Plus AE2000Plus AM3Plus Local Programming Addendum USA & Canada (800) 421-1587 & (800) 392-0123 (760) 438-7000 - Toll Free FAX (800) 468-1340 www.linearcorp.
Table of Contents 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Important Local Programming Note for Network Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 Keypad Data Entry Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 Introduction Linear has added a local programming option for the AE1000Plus, AE2000Plus, and AM3Plus access control panels. Local programming is suitable for the system installers during the early stages of new building construction projects where a computer is not accessible for programming or when telephone lines are not yet available for connecting to the panels.
Visual Feedback On the AE2000Plus and AE1000Plus systems, a text prompt will be shown on the system display for guidance. On the AM3Plus system, the LED on the PBUS keypad will be used to provide visual feedback. A long “amber” LED will signify an error, two short flashing green LED will signify the successful entry of a programming field, and three short flashing green LED will signify the successful entry of a complete programming step.
8 Local Programming Functions Function 01: Change Master Password The master password is used to protect the database that was entered via local programming. The master password can be changed using this function. Default password “123456” still should be used (instead of the changed Master Password) when AB2000 or AXNET connection is used to connect to the controller.
8 Local Programming Functions (Continued) Function 20: PBX Dialing Digit PBX DIALING DIGIT (AE1000Plus and AE2000Plus Only) A PBX Dialing Digit can be programmed using this function (the default is none). This digit plus a four second delay will be added before the telephone number being dialed. Entering 10 removes the PBX Dialing Digit.
8 Local Programming Functions (Continued) Function 31: Enter Entry Codes Entry Codes can be added using this function. In AccessBase2000 system, Entry Codes may have variable length from one to eight digits. However, in Local Programming mode, the length of Entry Code is fixed at four digits. ENTER ENTRY CODES FCN 31 31#CODE#CODE# CODE = THE FOUR-DIGIT ENTRY CODE TO ADD Function 33: Delete Entry Codes Entry codes can be deleted from the Controller using this function.
Local Programming Functions (Continued) Function 44: Set Button Schedule Access relays can be programmed to activate from a specific button on multi-button transmitters. Use this function to assign a button for each relay. Enter the button position number (0-8) for each relay. Enter # for any relay that will not have a transmitter button assigned.
8 Local Programming Functions (Continued) Function 57: Welcome Display Text The welcome text displayed by the Controller can be modified using this function. Refer to the keypad alphanumeric key figure shown on Page 4 for keypad details.
9 Programming Worksheet FCN # USAGE FACTORY DEFAULT CUSTOM SETTING 01 CHANGE MASTER PASSWORD 123456 __________ MASTER PASSWORD (6-DIGITS) 02 DIRECTORY NUMBER LENGTH 3 DIGITS _____ DIGITS (1-4 DIGITS) 20 PBX DIALING DIGIT NONE _____ (0-9, 10 = NONE) 64 MAXIMUM VISITOR TALK TIME 60 SECONDS _____ SECONDS (15-255 SECONDS) 67 POSTAL KEY RELAY CHANNEL RELAY A ❑ RELAY “A” ❑ RELAY “B” ❑ RELAY “C” ❑ RELAY “D” FUNCTION 06 TIME ZONES TIME ZONE # ACTIVE DAYS 1ST START HR/MIN 1ST END HR/MIN 2
FUNCTION 65 REMOTE DEVICE SETUP DEVICE # DEVICE TYPE DEVICE #1 ❑ NONE (0) ❑ REMOTE KEYPAD (1) ❑ RADIO (2) ❑ WIEGAND26 (3) ❑ WIEGAND30 (4) ❑ WEIGAND31 (5) ❑ TELEPHONE INTERFACE (7) ❑ RELAY A (1) ❑ RELAY B (2) ❑ RELAY C (3) ❑ RELAY D (4) ❑ BUTTONS(5) DEVICE #2 ❑ NONE (0) ❑ REMOTE KEYPAD (1) ❑ RADIO (2) ❑ WIEGAND26 (3) ❑ WIEGAND30 (4) ❑ WEIGAND31 (5) ❑ TELEPHONE INTERFACE (7) ❑ RELAY A (1) ❑ RELAY B (2) ❑ RELAY C (3) ❑ RELAY D (4) ❑ BUTTONS(5) DEVICE #3 ❑ NONE (0) ❑ REMOTE KEYPAD (1) ❑ RADIO (2) ❑ W
Copyright © 2008 Linear LLC 228505 A
