Chapter 4: Using the Console Interface for Configuration
Configuring the Switch through the Console Interface
WebView Switches
Management Settings
From the Management Settings screen, you can set Serial Port Session Configuration, Telnet Session
Configuration, or Secure Telnet (SSH) Configuration.
Serial Port Configuration
On the Serial Port Configuration screen, the Switch’s baud rate is displayed.
Select Edit and press the Enter key to make changes. Toggle to the desired speed and when your changes are
complete, press the Esc key to return to the Action menu. Select Save and press the Enter key to save your
changes. To exit, select Quit and press the Enter key.
Telnet Configuration
On the Telnet Configuration screen, the time-out is displayed. The value is entered in seconds. If you do not want
the Telnet session to timeout, you may enter a value of 0 sec.
Select Edit and press the Enter key to make changes. When your changes are complete, press the Esc key to
return to the Action menu. Select Save and press the Enter key to save your changes. To exit, select Quit and
press the Enter key.

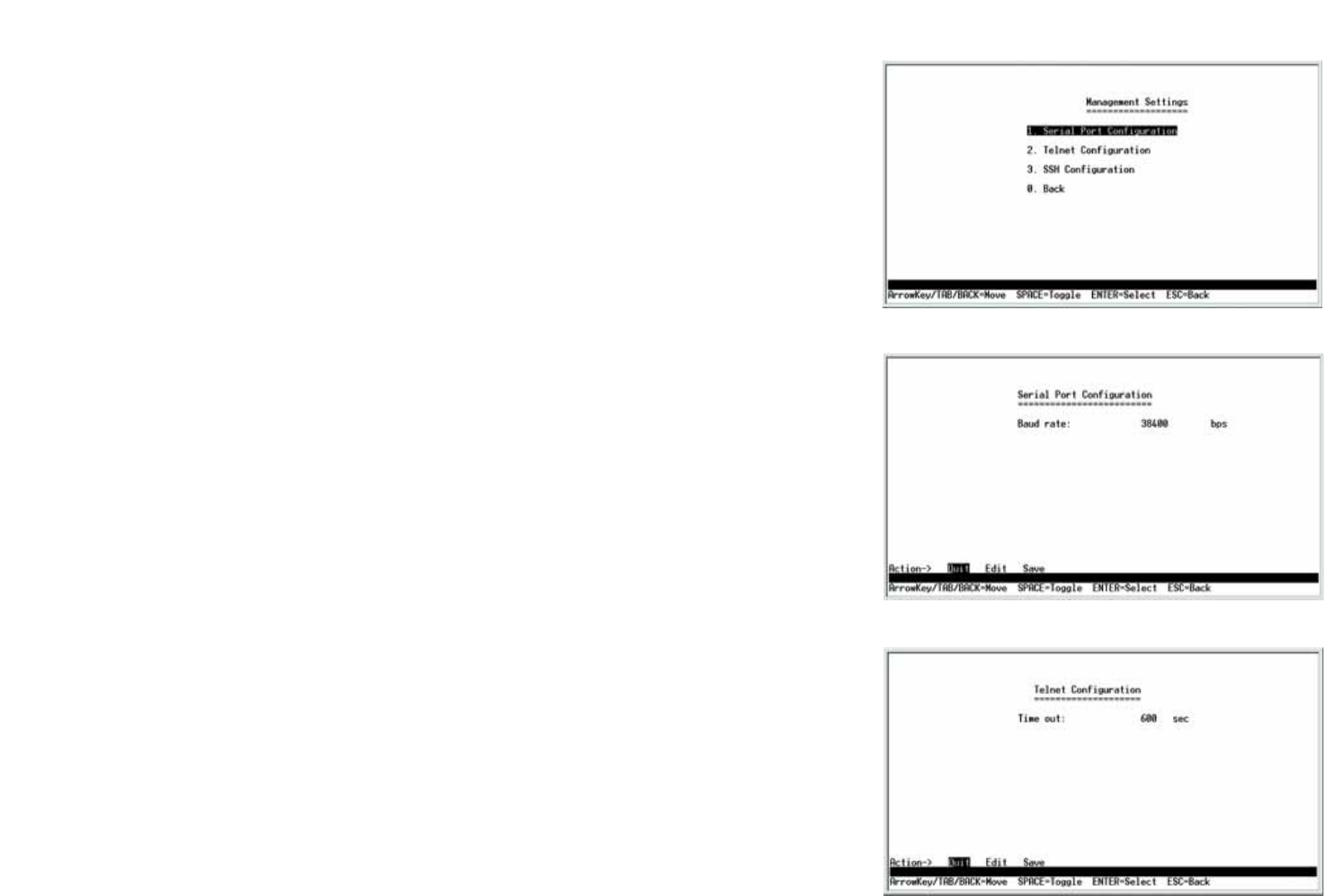

Figure 4-13: Telnet Configuration
Figure 4-11: Management Settings Menu
Figure 4-12: Serial Port Configuration
