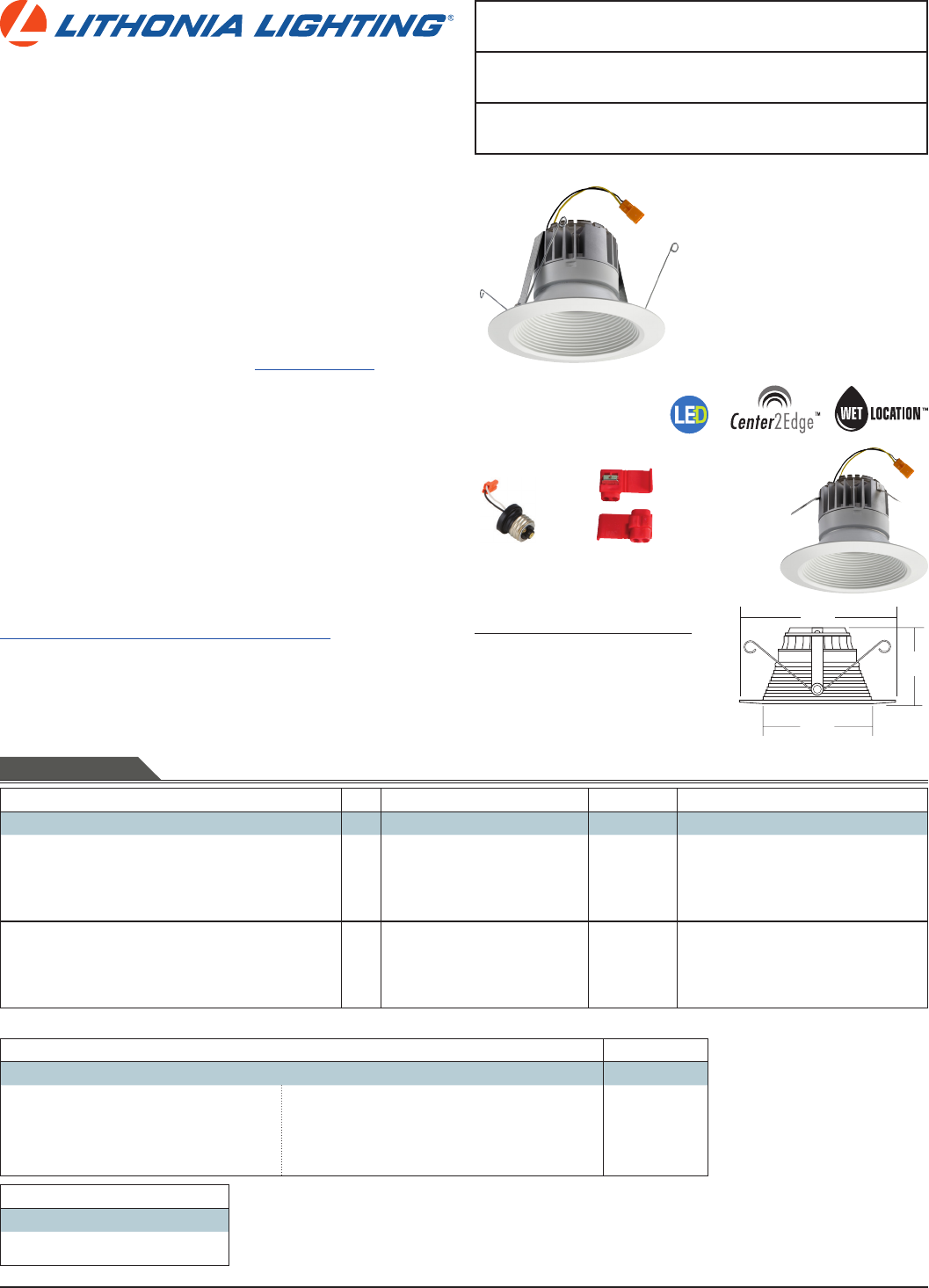

Specification Sheet

Catalog
Number
Notes
Type
Specifications
Aperture: 4-7/8 (12.4)
Ceiling opening: Determined by rough-in
Overlap trim: 6-3/8 (16.2)
Height: 3-11/16 (9.4)
FEATURES & SPECIFICATIONS
INTENDED USE — Our recessed LED module is the most economical means to create a well lit environ-
ment with exceptional energy efficiency and near zero maintenance. Great for retrofit into existing
downlight cans or new construction and remodel applications. Unique torsion spring and friction clip
retention allows fitment into nearly 100% of installed cans. The LED module maintains at least 70%
light output for 50,000 hours.
CONSTRUCTION — Aluminum spun reflector with deep baffle configuration for reduced glare.
Combined LED and driver printed circuit board attached. Inner reflector cone funnels light through the
pressed-in diffused lens.
Baffle and open trim inserts are available in multiple finishes.
OPTICS — Diffused lens at end of mixing chamber to provide even light distribution for general illumina-
tion, equivalent to 65W BR30 lamp.
Wide flood beam angle at > 45°.
ELECTRICAL — Center 2 Edge™ (patent pending) technology created for a single point source. Primary
power disconnect provided for simple connection to a dedicated LED connector in the housing.
Dimming down to 10%. For compatible dimmers, refer to Compatible Dimmers Chart.
P Series' patent pending driver has zero inrush which allows power loads to be calculated with actual
rated wattages.
Example: 53 units of 5BPMW LED fixtures can be installed in line with a 600-watt dimmer. 600W/11.2W
= 53.5 fixtures.
Standard input wattage is 11.2 watts or less; equivalent to 65-watt incandescent.
INSTALLATION — Suitable for installation in standard height rough-in sections.
E26 socket adapter and splice kit ships standard. This enables easy installation or permanent conversion
to an LED source for Title 24 compliance.
Twin torsion springs ensure easy installation.
Friction clips included to allow fitment into cans without torsion brackets from an inside diameter of
5.0" to 5.6".
LISTINGS — CSA certified to US and Canadian safety standards. California T24 compliant. Wet location
listed for indoor use only. WSEC ASTM E283 for Air-Tight (with IC housings).
WARRANTY — 5-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
PATENTS PENDING.
DOWNLIGHTING 5BP5OP LED
Accessories: Order as separate catalog number.
TSA5 5" Torsion spring adaptor
E26 adaptor
(included)
Splice kit
(included)
LED Recessed Downlighting
5BP/5OP
5” LED Module
IC/Non-IC
Retrofit
D
I
M
M
A
B
L
E
Notes
1 Total system delivered lumens.
2 Must be ordered on a separate line.
ORDERING INFORMATION
Lead times will vary depending on options selected. Consult with your sales representative.
Example: 5BP TRMW LED 27K 90CRI
LED
Series/Finish Lamp CCT / CRI / W / Lumens
1
Voltage Options
5BPMW 5" Baffle LED module, matte white
5BP TRMW 5" Baffle LED module, black baffle, matte white flange
5BPBN 5" Baffle LED module, brushed nickel
5BPORB 5" Baffle LED module, oil-rubbed bronze
LED (blank) 3000 K / 83CRI / 10.6W / 620L
27K 90CRI 2700 K / 93CRI / 11.2W / 600L
30K 90CRI 3000 K / 93CRI / 11.2W / 600L
40K 90CRI 4000K/95CRI/11.2W/650L
(blank) 120V L5LED T24 New construction rough-in LED base
L5RLED T24 Remodel rough-in LED base
L5 New construction rough-in
2
L5R Remodel rough-in
2
5OPA 5" Open LED module, clear diffuse
5OPAZ 5" Open LED module, clear specular
5OPA TRMW 5" Open LED module, clear diffuse, matte white flange
5OPAZ TRMW 5" Open LED module, clear specular, matte white flange
LED (blank) 3000 K / 83CRI / 10.6W / 620L
27K 90CRI 2700 K / 93CRI / 11.2W / 600L
30K 90CRI 3000 K / 93CRI / 11.2W / 600L
40K 90CRI 4000K/95CRI/11.2W/650L
(blank) 120V L5LED T24 New construction rough-in LED base
L5RLED T24 Remodel rough-in LED base
L5 New construction rough-in
2
L5R Remodel rough-in
2
TRIM INSERTS (for field configuration; ordered separately)
Series/Finish Packaging
5BP TRMW 5" Baffle black, matte white flange insert
5BPBN 5" Baffle brush nickel insert
5BPORB 5" Baffle oil-rubbed bronze insert
5OPA 5" Open clear diuse insert
5OPAZ 5" Open clear specular insert
5OPA TRMW 5" Open clear diffuse, matte white flange insert
5OPAZ TRMW 5" Open clear specular, matte white flange insert
R12 Retail pack
of 12 units
U Unit
Example: 5BP TRMW R12
All dimensions are inches (centimeters) unless otherwise indicated.
4-7/8
(12.4)
6-3/8
(16.2)
3-11/16
(9.4)
