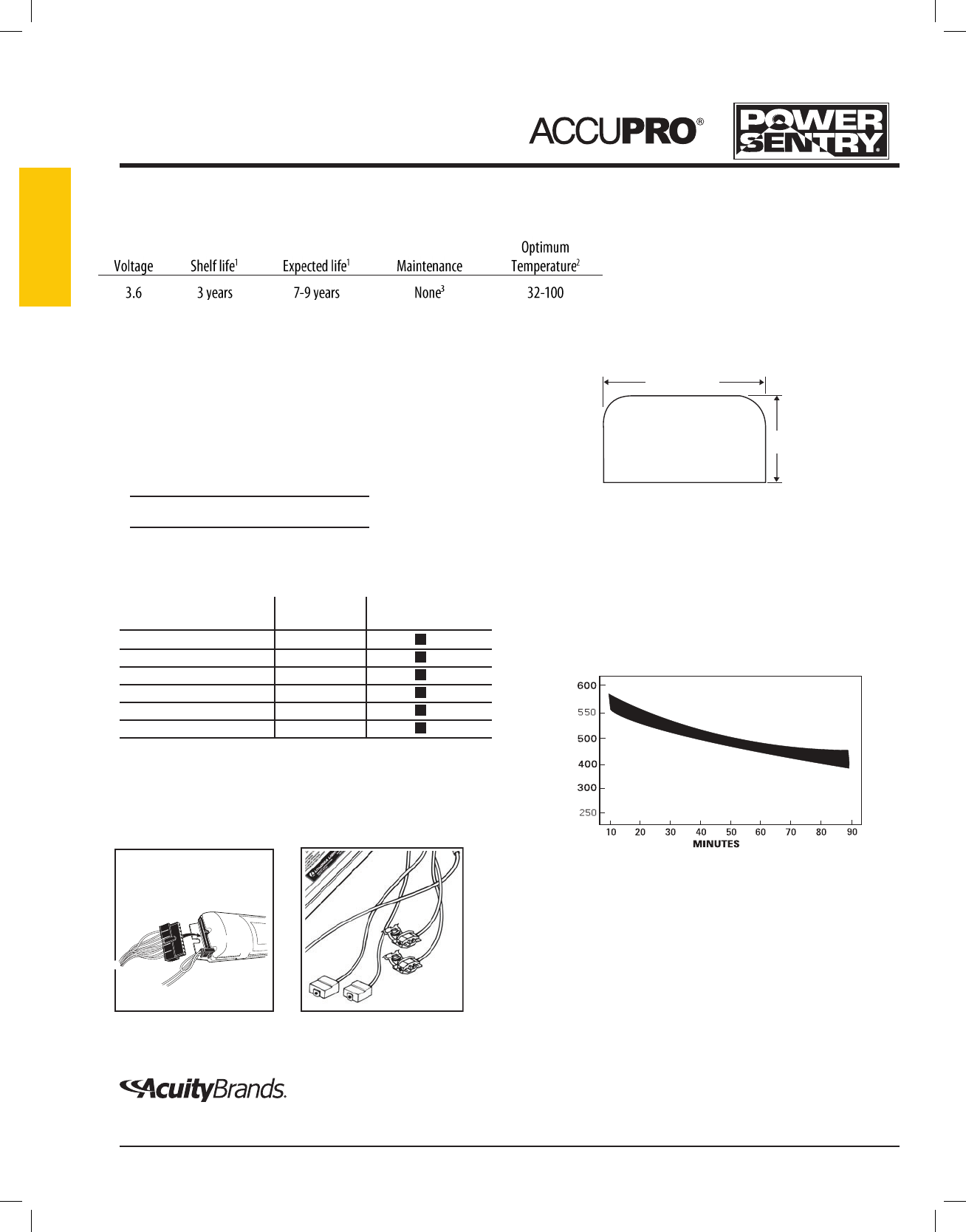

Specification Sheet

2 of 2
PSQ500QD Fluorescent Battery Packs
Sheet#: PSQ500QD
One Lithonia Way Conyers, GA 30012 Phone: [phone] Fax: [phone] www.powersentrysafety.com ©1997-2013 Acuity Brands Lighting, Inc. All rights reserved 4/4/13
MOUNTING
All dimensions are inches (millimeters).
by
Cross section end view
Length: 9-1/2 inches
Shipping weight: 1.4 lbs (0.6 )
PERFORMANCE
Emergency Lamp Lumen Output
Light output data based on F32T8 lamps (2800 lamp lumenrating).
Two-lamp electronic instant start ballast. Thermal and ballast factor
corrections have been included. Light output for other lamp and bal-
last types will vary. Luminaire eciency and application conditions
must be determined to calculate actual illuminance levels. Consult
Lithonia Lighting representative for further information.
NOTES:
1 At 77°F.
2 Optimum ambient temperature range where unit will provide capacity for 90
0
minutes. Higher and
lower temperatures affect life and capacity. Consult factory for detailed information. Damp location
models are UL listed 0-50
0
C (32-122
0
F).
3 Periodic system status test recommended.
SPECIFICATIONS
BATTERY
Sealed Nickel-Cadmium
LAMP COMPATIBILITY
ELECTRICAL
One-lamp emergency operation. Tested and approved lamp/ballast combinations. Consult
Lithonia Lighting representative for additional lamp/ballast
combination compatibility not shown.
KEY FEATURES
Lamp/Ballast Type Wattage Emergency
Operation
24"- 48" T12 (magnetic) 34 – 40
U-Lamp T12 (magnetic) 34 – 40
U-Lamp T8 (electronic) 16 – 31
24"- 48" T8 (electronic) 17 – 32
48" T12 (magnetic) 32 – 40
Long Compact (4-pin) 18 – 40
Polarized quick-connect integrated
test switch pilot light assembly.
Pushnuts and insulation displacement
connectors reduce installation time.
2-3/16 (59 )
1-3/16 (29 )
Maximum AC
input
Volts
A mps Watts
120
0.27
2.5
277
0.29
2.5
