If you are using an HDMI or digital optical cable to connect your Xbox 360 to your primary
audio system, use the Xbox 360 component HD AV cable (recommended) to connect
the wireless base station to your Xbox 360/primary audio system, or the alternative setup
on page 14

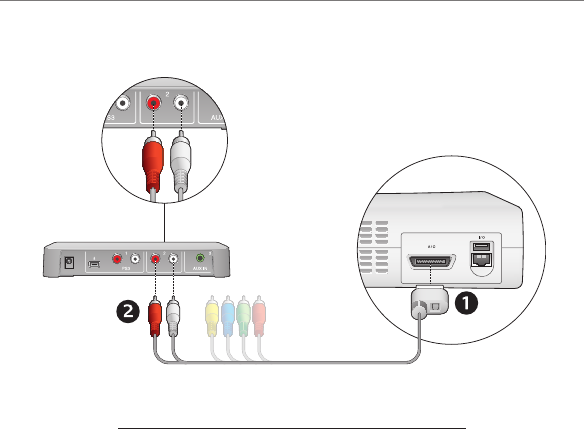

Recommended wireless base station setup (Fig.4)
Connect the Xbox 360 component HD AV cable (typically included with the Xbox 360) 1.
to the back of the Xbox 360 Note that with some Xbox 360 models, you cannot
connect both an HDMI cable and the Xbox 360 component HD AV cable
(If you experience this issue, please use the alternative wireless base station setup
shown in Fig 6)
Connect the red and white stereo RCA plugs to the Xbox 360 ports on the Logitech 2.
wireless base station
Xbox 360
Xbox 360
Logitech wireless base station
Xbox 360
Xbox 360 component HD AV cable
Figure 4
