Getting Started

Client Software for PC

Using Quick Playback Mode

Quick Playback mode allows you to view recorded video from your cameras without leaving

the Main View tab. You can also view recorded video from one camera while still viewing

the rest of your cameras live.

To access Quick Playback Mode:

1 Click the ca

mera you would like to playback and hold the mouse over the camera to open the

Camera Toolbar.

2 Click

to open Quick Playback mode.

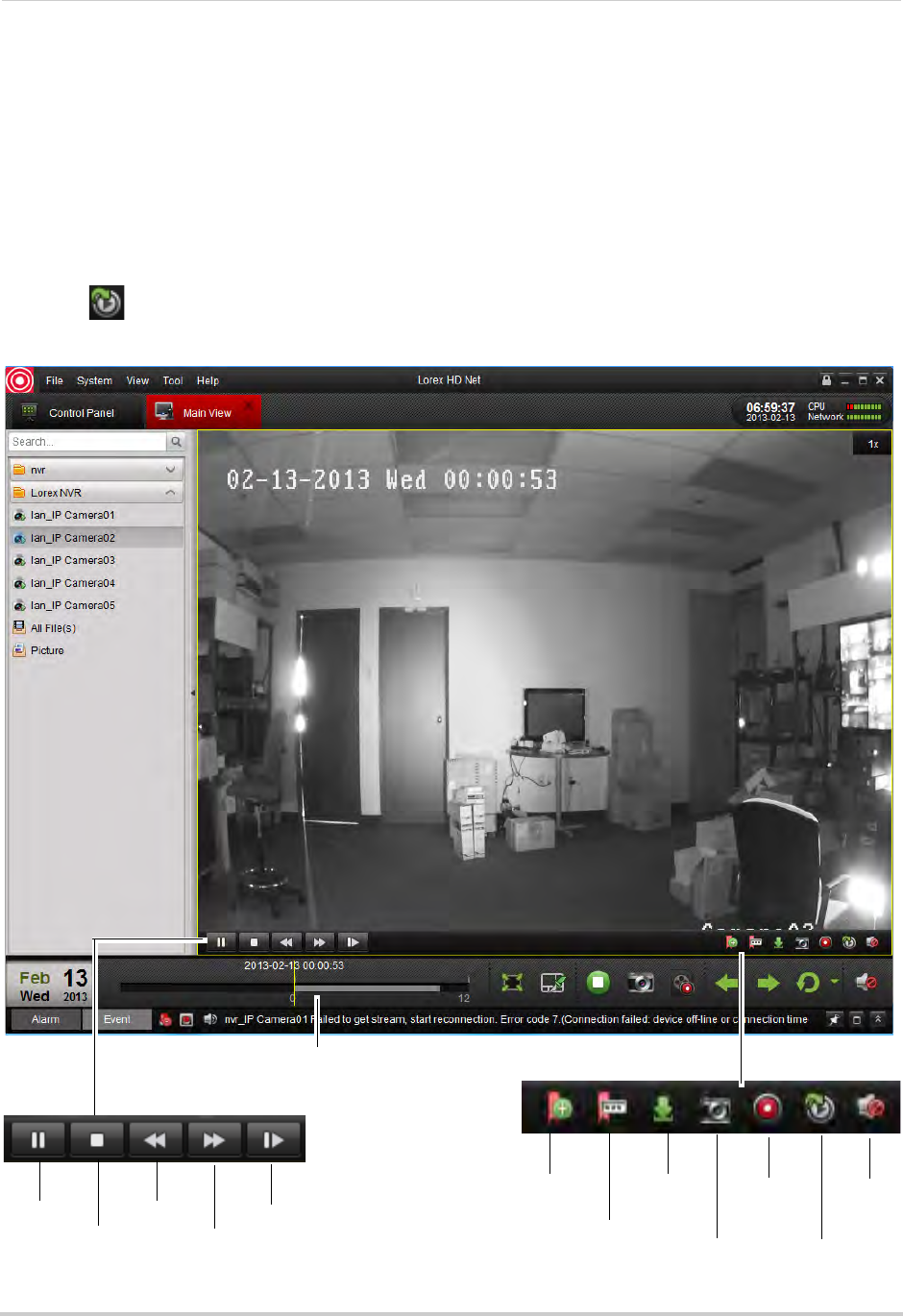

3 Use the Quick Playback c

ontrols.

Click and drag to select

the playback time

Pause

Stop

Slow

Fast

Forward

Frame-by-frame

Add default tag

Add custom tag

Download

tag

Start/stop

manual

recording

Screenshot

Return to live

viewing

Mute/

unmute
