Getting Started

Client Software for PC

Remote Playback

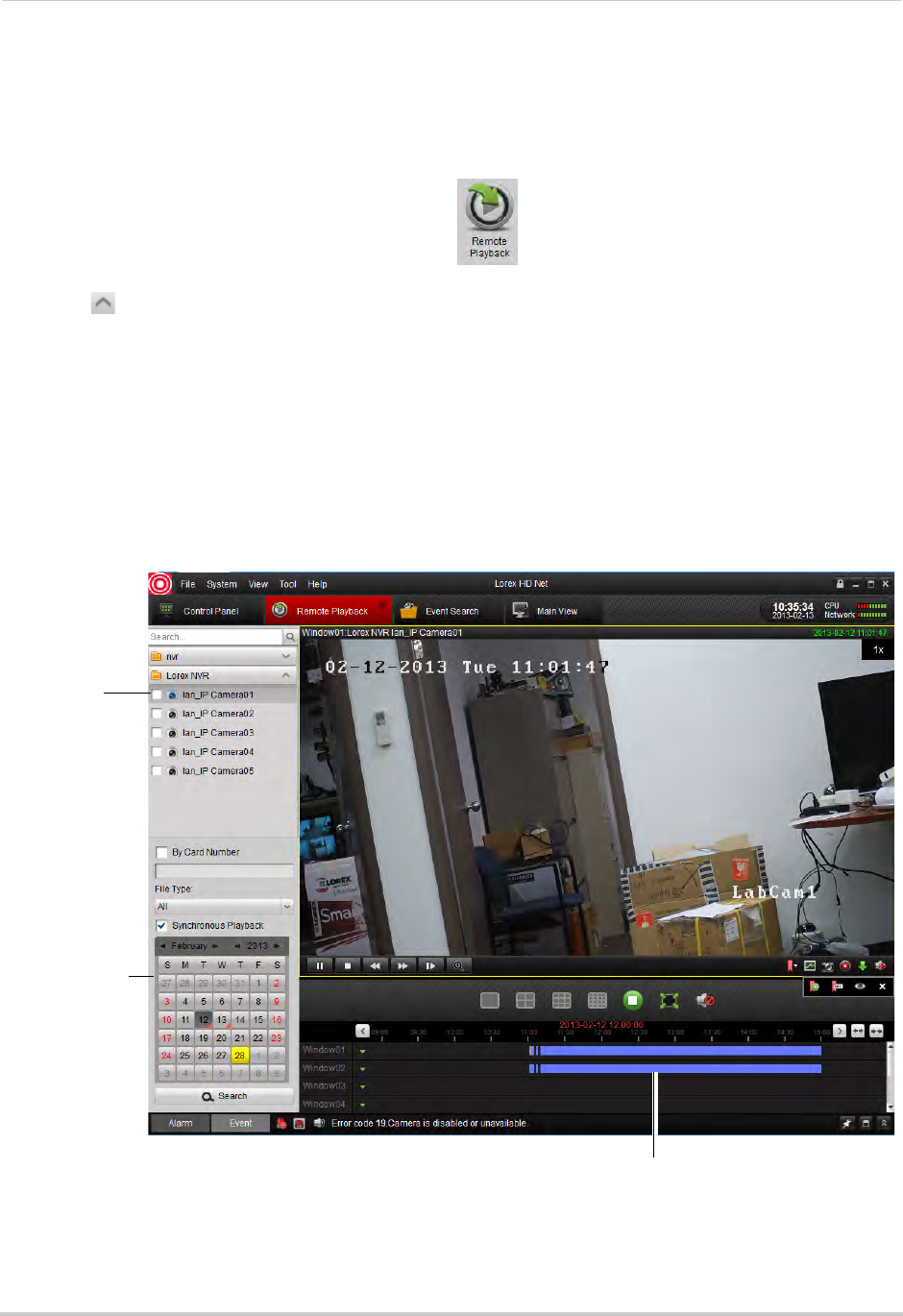

Remote Playback allows you to view recorded video from your NVR on your computer.

To access Remote Playback:

1 F

rom Control Panel, click Remote Playback (

2 Click

next to the NVR or camera group you would like to playback from.

3 Check the c

ameras you would like to playback.

• Optional: Check Synchr

onous Playback to playback video from multiple channels at the same

time.

4 In the calendar, select the day you would like to playback.

5 Click Sear

ch. The time bar shows video recorded on your NVR.

6 Double-click in the time bar to start playback at the selected time.

Check

cameras to

select for

playback

Select the date

in the calendar

Double-click to start playback
