Client Software for PC

Network

The Network sub-menu allows you to configure networking settings. The Network

sub-menu is divided into the following tabs:

The General tab allows you to configure the IP address

of the NVR for fixed IP or DHCP

mode. It also allows you to configure system port numbers.

The Advanced tab allows you to configure additional

advanced networking settings.

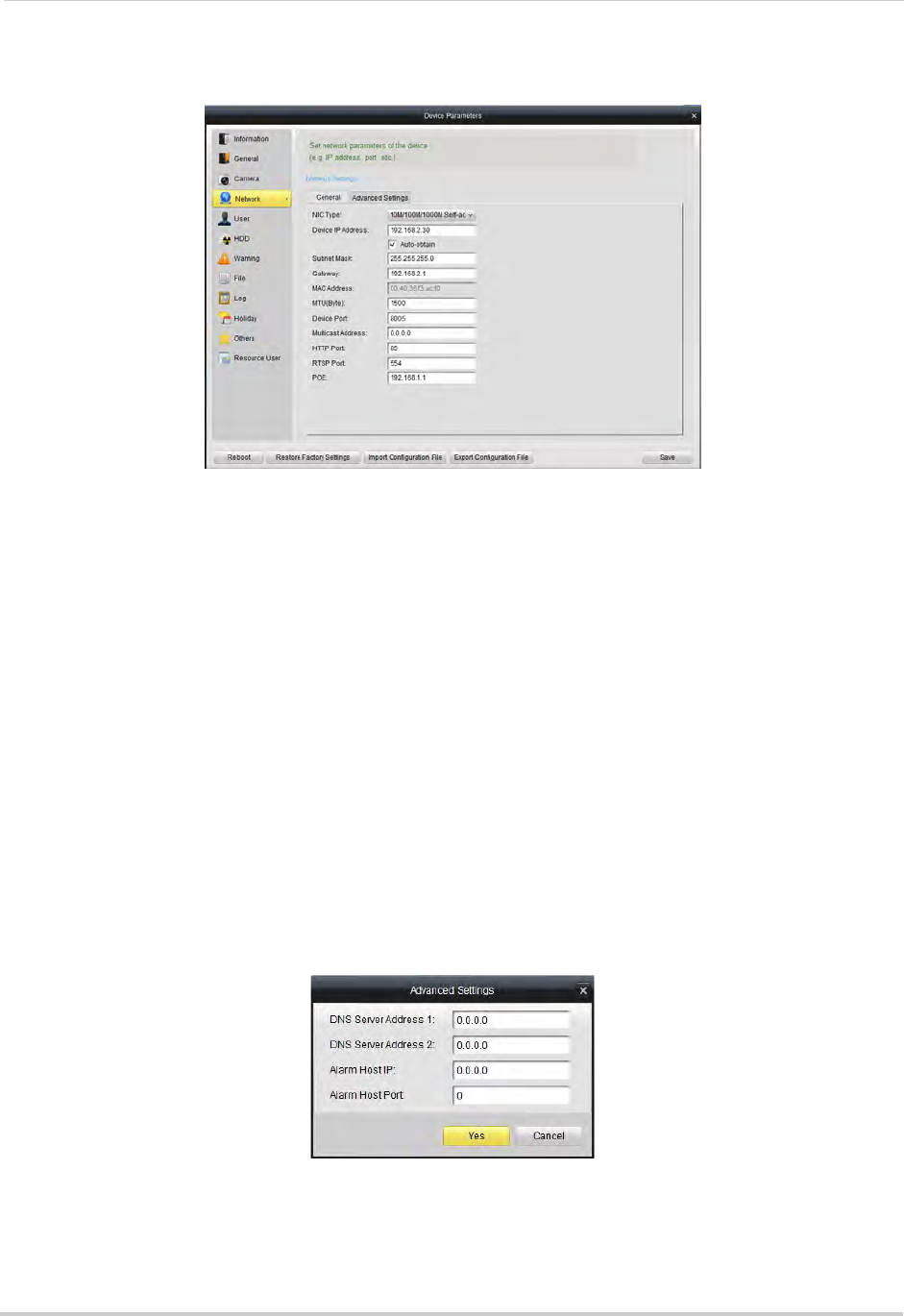

To configure your

NVR’s IP a

ddress for fixed IP or DHCP mode:

1 Select the General tab

2 Check Auto-obtain t

o use DHCP mode and have the router automatically assign an IP

address to the NVR. Un-check to use a fixed IP address to your NVR.

3 If y

ou un-check Auto-obtain:

• Under Device IP Address, enter the IP addr

ess your NVR will use. Please note that additional

configuration may be required on your router. See your router’s user manual for details.

• Under Subnet Mask, ent

er the subnet mask.

• Under Gatewa

y, enter the default gateway address.

• Click Advanced Settings>Advanced Settings. Under DNS Serv

er Address 1 & 2, enter the

DNS address and click Yes.

4 Click Save. Your NVR may restart.

NOTE: If you change the NVR’s IP address and you h

ave configured port forwarding, you will

need to re-configure it using the newly selected IP address.
