Getting Started

121

Client Software for PC

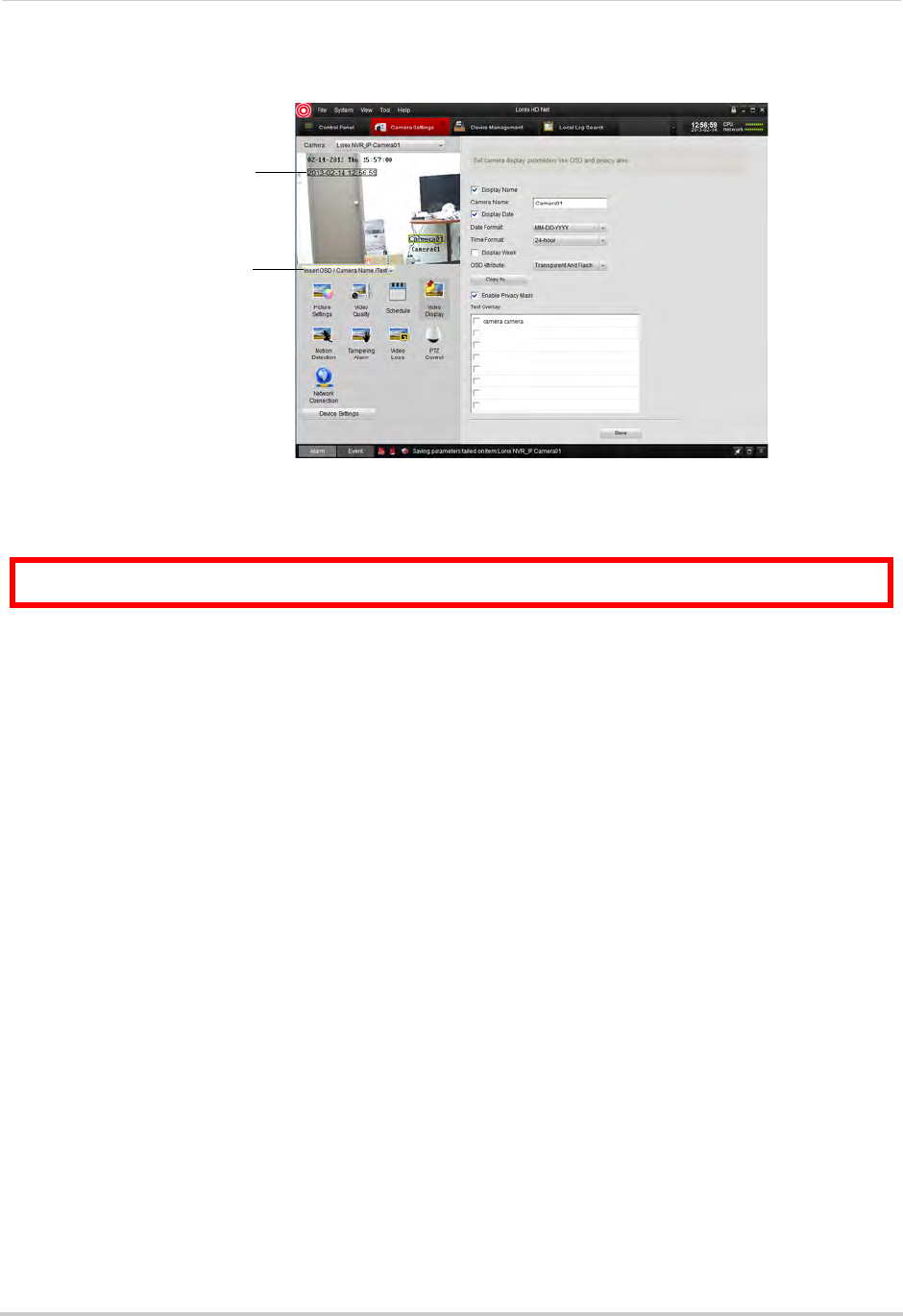

4 OSD messages are outlined. Click-and-drag messages to change their position.

Select Insert OSD/

Camera Name/Text

Click and drag to change the

position of OSD text

5 Click Save to save changes.

To configure Privacy Areas:

ATTENTION: Areas covered in privacy masks are not visible in recordings.

1 Under Camera, select the camera you would like to configure.

2 Click Video

Display.

3 Check Enab

le Privacy Mask to enable privacy masks or un-check to disable.

4 Click the drop-do

wn menu under the video display and select Insert OSD/Camera Name/

Text.
