Mobile Apps: Accessing your NVR Using a Mobile Device

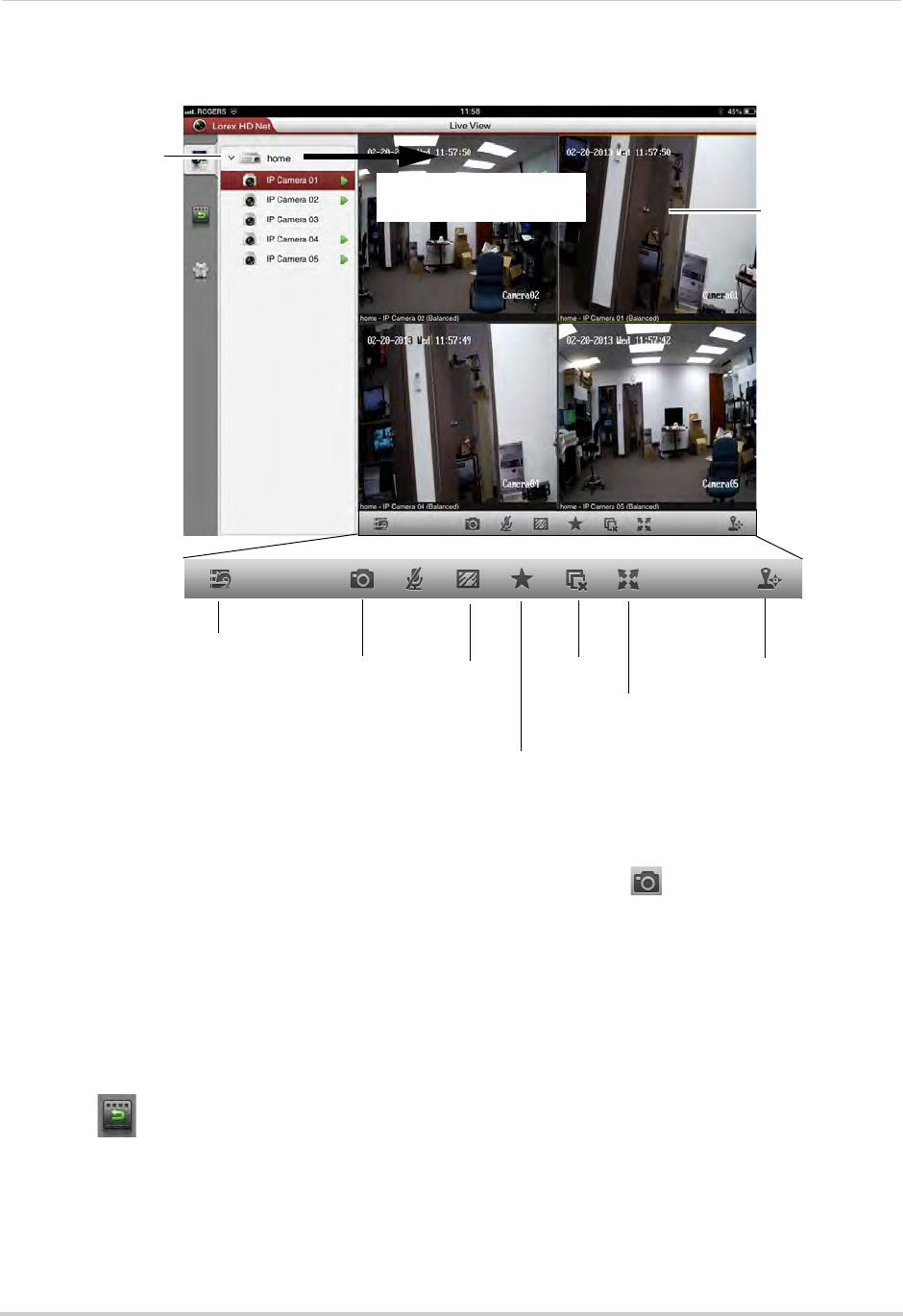

Live View Interface

Drag the NVR or cameras

to the display area to open

Tap to view cameras

connected to the NVR

Hide/show

device list

Screenshot


quality

Add camera/view

to favorites

Full-screen

Not supported

Tap to select

camera, drag to

top to disconnect

Disconnect

all cameras

Taking Screenshots

1 Tap the camera you would like to take a screenshot of, then tap .

2 Tap OK

to allow Lorex netHD to save photos on your device.

• You can access screenshots using the Photos app.

Playback

You can view recorded video from your NVR on your iPad.

To access playback mode:

1 Touch
