Mobile Apps: Accessing your NVR Using a Mobile Device

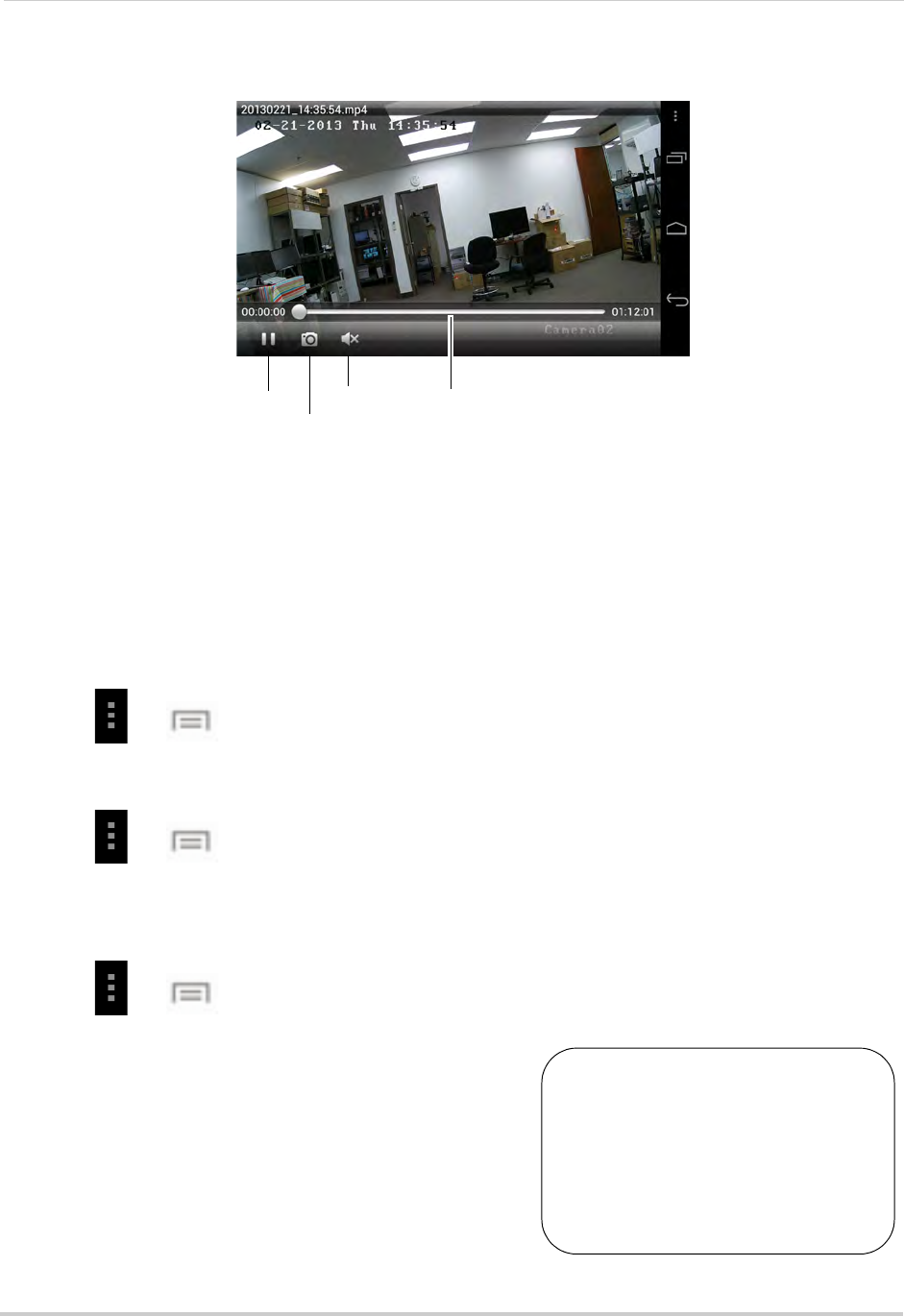

7 Use the on-screen controls.

Pause/play

Screenshot

Mute

Tap to change playback time

Device List

Use the Device list to manage your NVR’s.

To access Device List:

• From the main screen, tap Devic

es.

Modifying an NVR

1 Select the NVR.

2 Press

(or ) then Modify.

3 Modify the NVR information as needed.

4 Press

(or ) then Save.

Deleting an NVR

1 Select the NVR.

2 Press

(or ) then Modify. Press Confirm.

Android Tablet

You must port all ports

(default: 80, 8000, 1025) on

your router before you can

connect to your system using

a mobile device (e.g.

Samsung Galaxy S, HTC

Incredible S)

Use the Lorex netHD Plus application to connect to

your NVR on an Android tablet.

NOTE: The instructions below may differ depending on

the

model of your Android device.
