Appendix B: Installing or Replacing the Hard Drive

Removing the Hard Drive

Make sure that the power cable has been disconnected before changing the

hard drive.

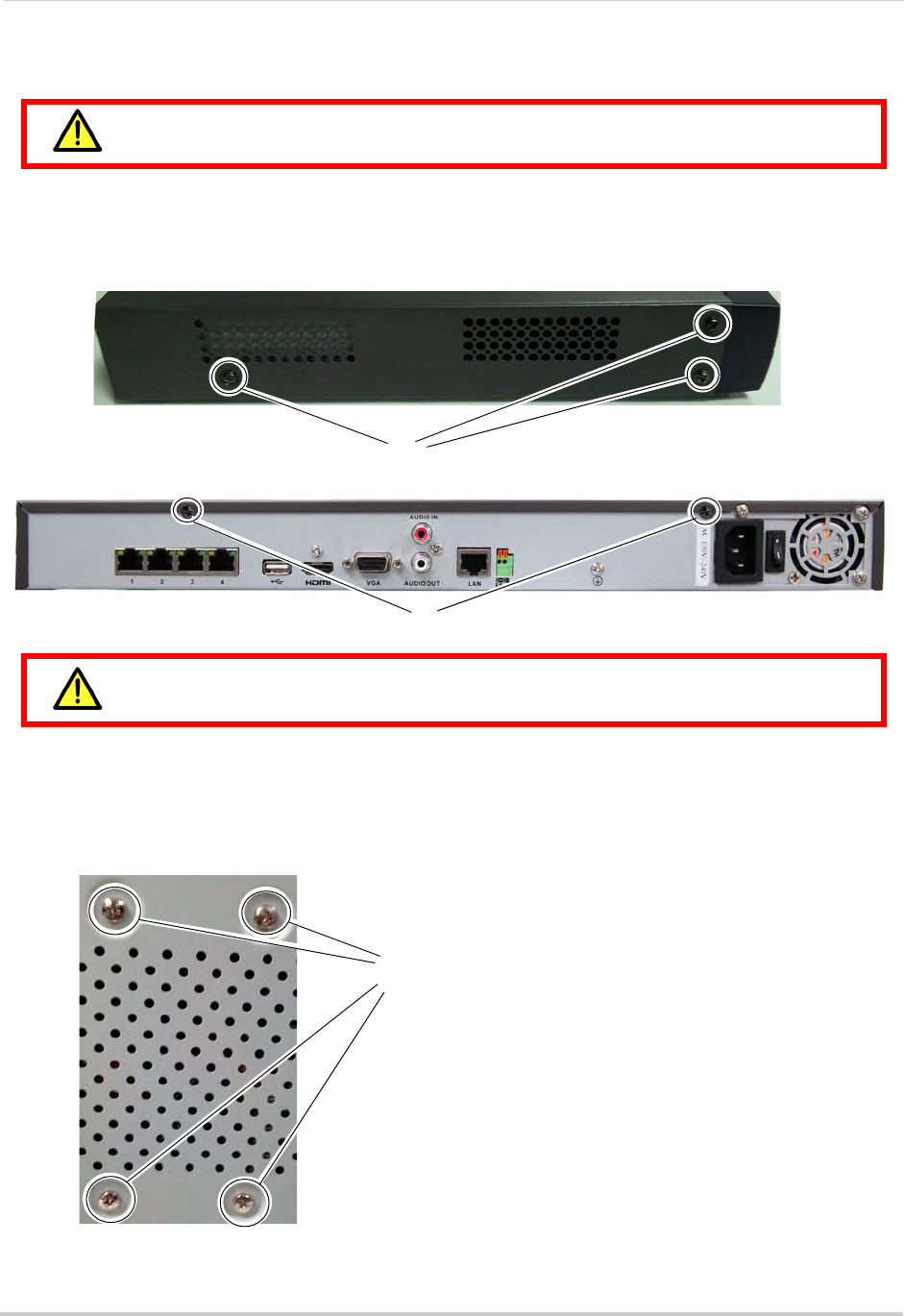

To remove the hard drive:

1 Remove the screws from the back (x2) and side panels.

2 Remove the screws from each side panel (x3) and the top of the rear panel (x2) of the cover.

Side panel screws

Rear panel screws

Do not remove the other screws on the rear panel.

3 Disconnect the power and data cables from the hard drive.

4 Turn the NVR over and remove the 4 hard drive screws. Remove the hard drive from the

stem. Make sure to hold the hard drive in place while removing the screws to avoid

damaging the NVR.

Remove the screws to

remove the hard drive

5 Turn the NVR back over and replace the cover. Replace the side panel and rear panel screws.
