- Getting Started
4
Basic Setup
Step 1: Connect the IP Cameras
• Connect the IP cameras to the Camera In ports on the rear panel of the NVR using Cat 5e or
higher ethernet cable.

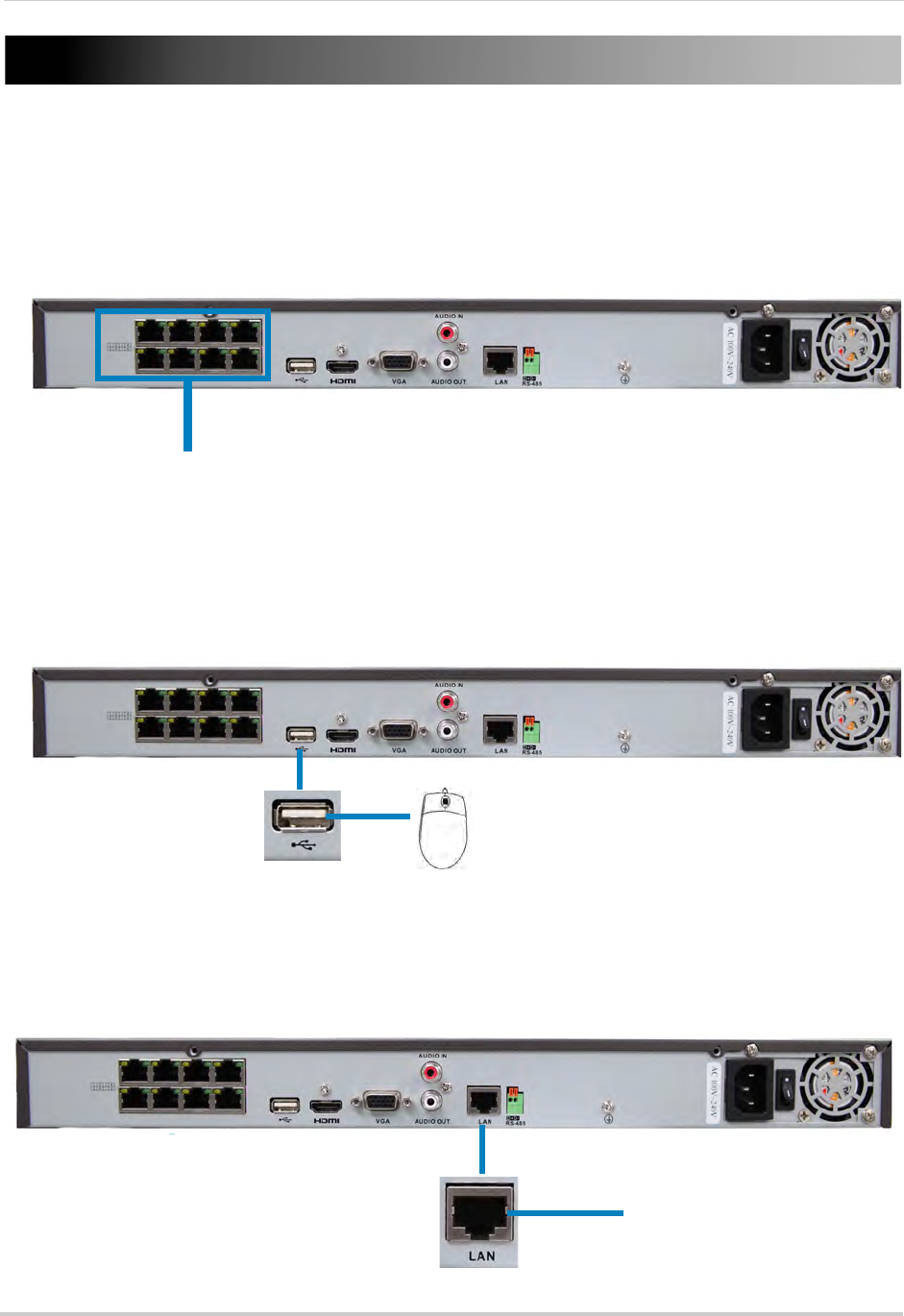

Connect IP Cameras
8-channel model shown
NOTE: The cameras may take up to 1 minute to power on and show an image on the monitor
after being connected to the NVR.
Step 2: Connect the Mouse
• Connect a USB mouse (included) to the USB port on the rear panel.
8-channel model shown
USB port
Step 3: Connect the Ethernet Cable
• Connect an ethernet cable (included) to the LAN port on the rear panel. Connect the other
end of the ethernet cable to a router on your network.
Connect ethernet cable
8-channel model shown
LAN port
