Getting Started

HDD

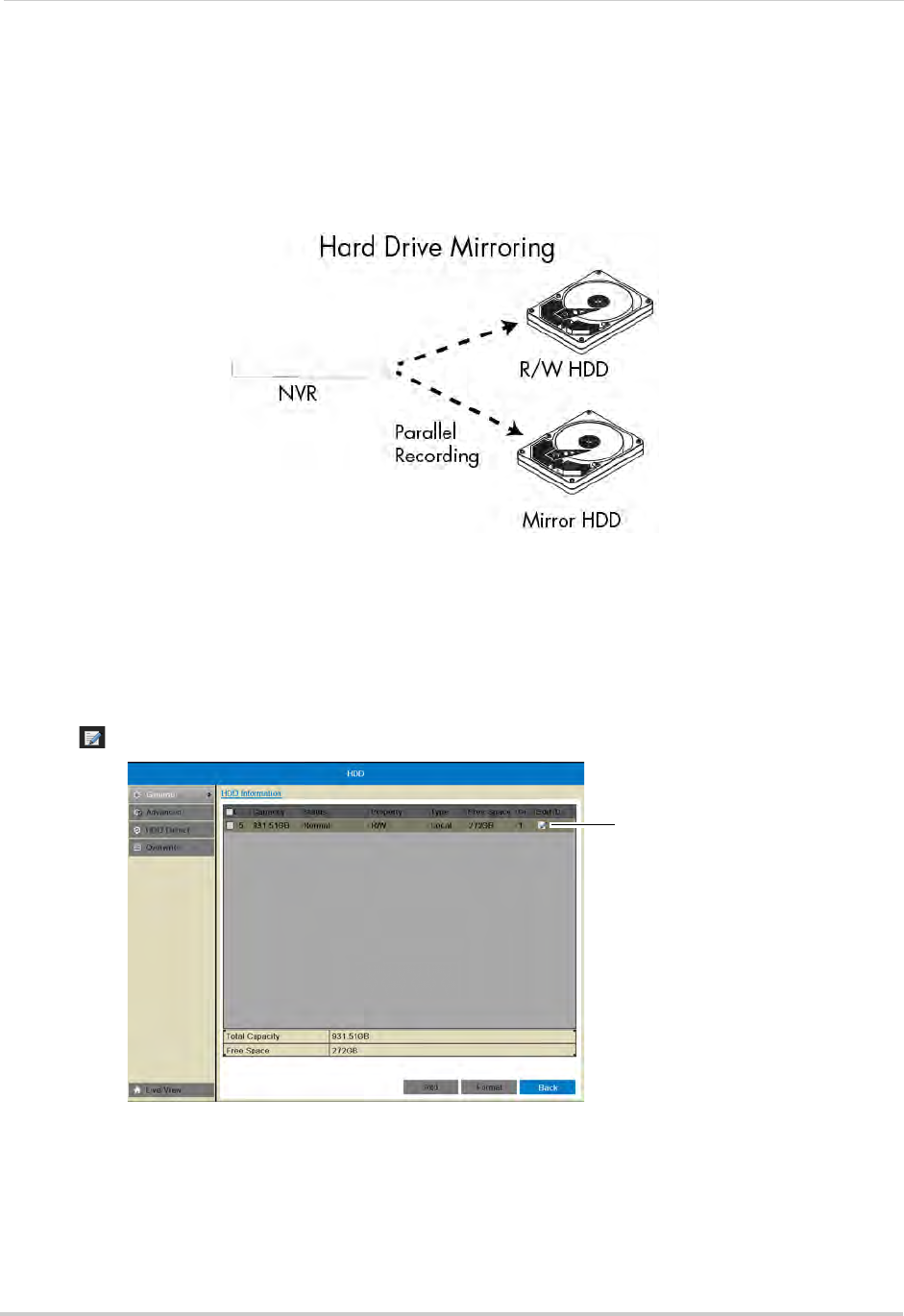

• Mirror: Mirror hard drive. A mirror hard drive can be used to automatically backup video

footage recorded to the recording hard drive. When a mirroring hard drive is installed, the

NVR can be set to record cameras in parallel to both the recording hard drive and the mirror

hard drive. This way, the footage is automatically backed up if the recording hard drive fails.

NOTE: Mirror hard drive must be as large or larger than primary hard drive to backup all

ecordings. Backup begins from when mirror hard drive is installed and configured.

To configure hard drive types on the NVR:

1 If you are configuring a hard drive to be a mirroring hard drive, you must first format both the

cording hard drive and mirroring hard drive before you can set up hard drive mirroring.

For instructions on how to format hard drives, see “Formatting the Hard Drive” on page 39.

2 Right-click and then click HDD.

3 Click

on the hard drive you would like to configure.

Click to configure

the hard drive
