Getting Started

Record

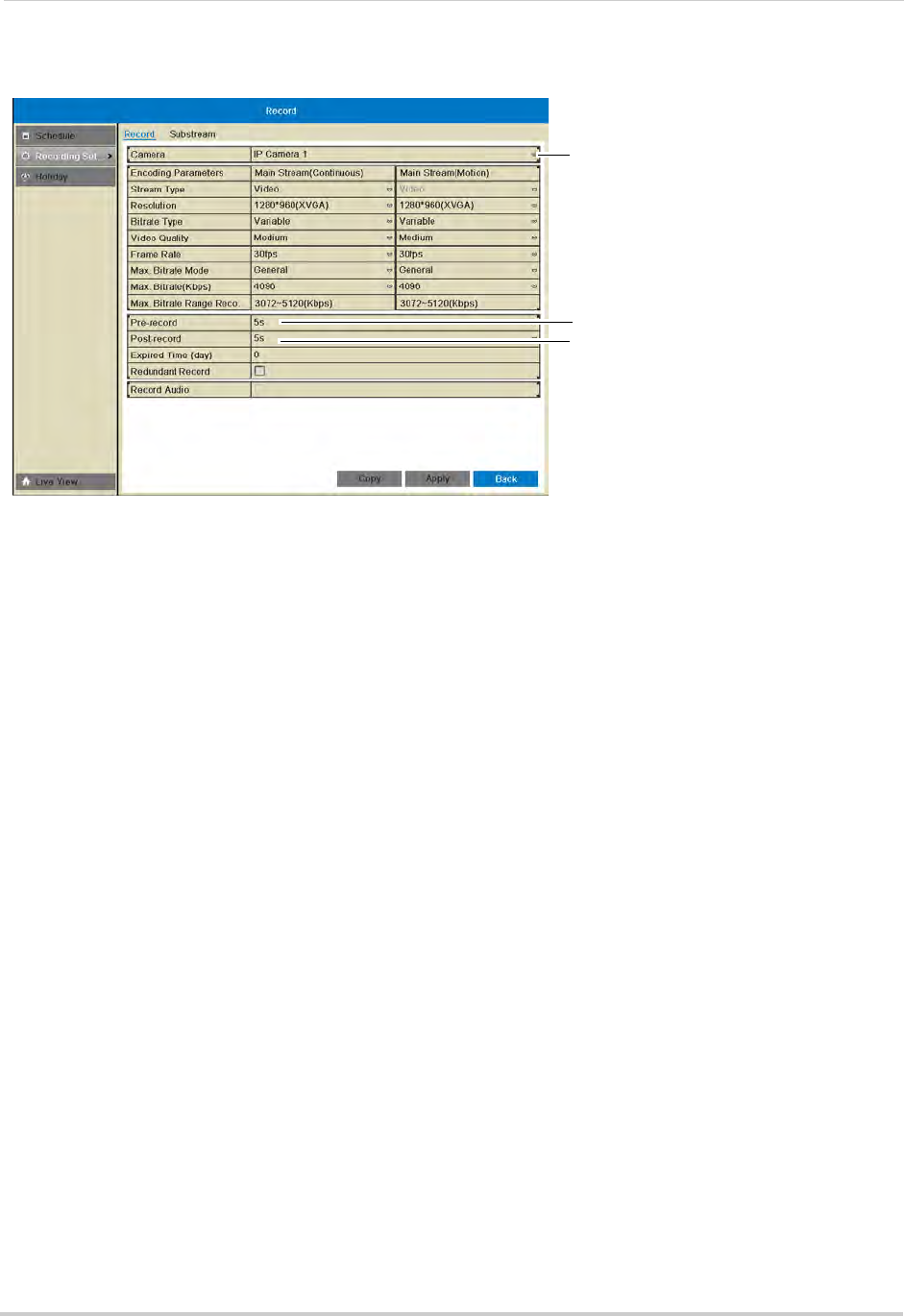

4 Under Post-record, select the time the NVR will record after an event.

Select post-record time

Select pre-record time

Select camera

5 Click Apply to save changes. Right-click repeatedly to return to live view.

Configuring Substream Settings

Substream settings allow you to configure the video quality settings for streaming to a

computer or mobile device. The substream allows you to conserve Internet bandwidth for

connections over the LAN or Internet while still ensuring high quality recordings.

NOTE: Increasing the substream settings may affect the perf

ormance of the video stream,

depending on bandwidth available.

To configure substream settings:

1 Right-click and then click Menu>Rec

ord>Recording Setup>Substream.

2 Under Camera, sel

ect the camera you would like to configure.

3 Under Resolution, sele

ct the resolution to use for streaming: 704*576(4CIF), 352*288(CIF),

320*240(QVGA).

4 Under Bitrat

e Type, select Variable (recommended) for variable bitrate or Constant for

constant bit rate.

• If you select Variable, select the Video Quality between Hi

ghest and Lowest.

5 Under Fra

me Rate, select the frame rate for streaming.

6 Under Ma

x. Bitrate Mode, select General to use one of the pre-set options or Customize to

manually enter the bitrate.
