Getting Started

Camera

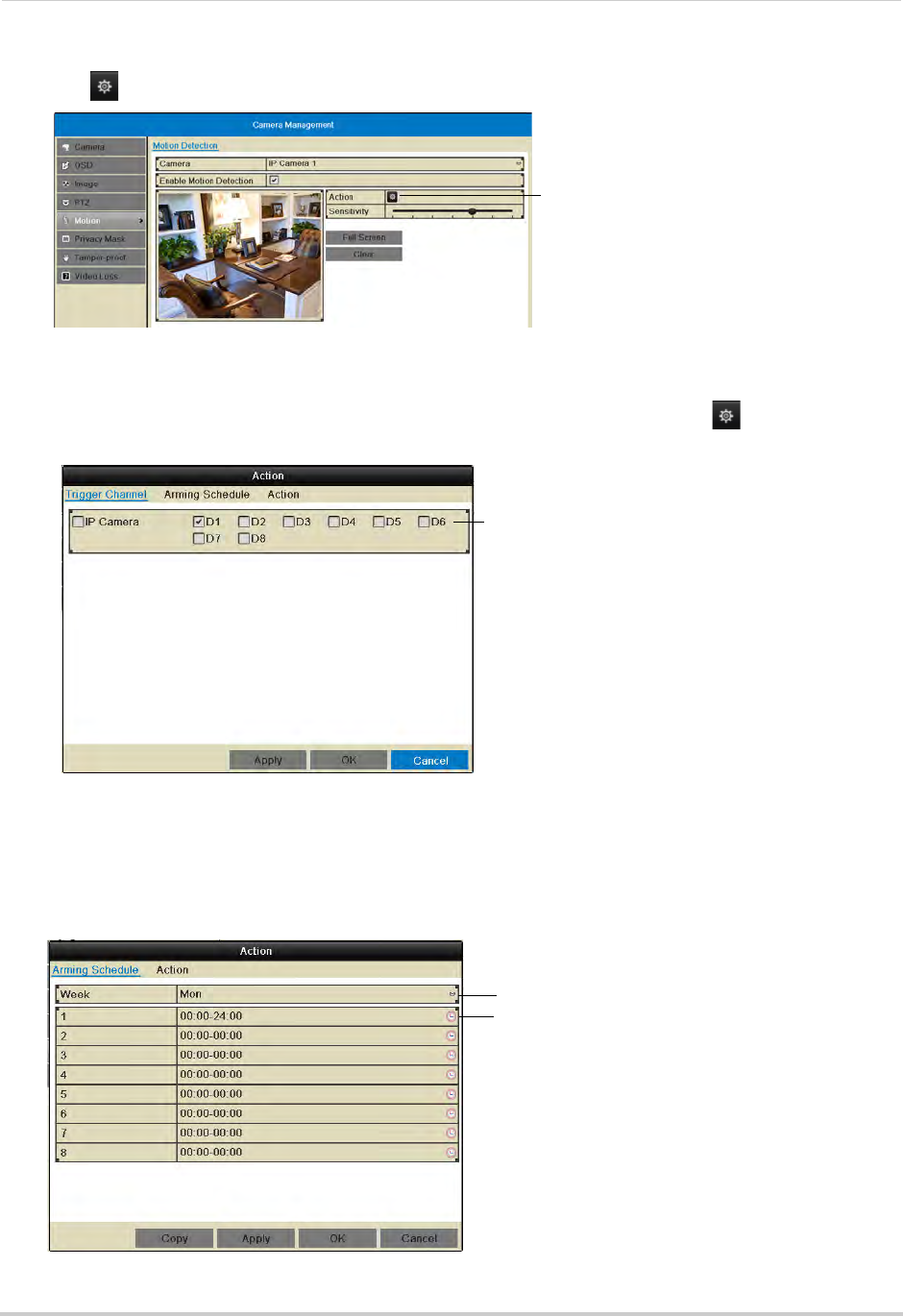

3 Click under Action to open the Action menu.

Click to open the Action menu

4 In the Trigger Channel tab, select which channels that will start to record when motion

detection is triggered on the selected channel. For example, if you want channels 1 and 2 to

record when motion is detected on channel 1, select channel 1 and click

, then check D1

and D2 in Trigger Channel.

Check channels that will record when

the selected channel detects motion

5 In the Arming Schedule tab, configure the times of day you would like motion detection to be

enabled for the selected channel. By default, motion detection is enabled 24/7.

• Under Wee

k, select the day of the week you would like to configure.

• Configure up to 8 time periods per day when motion detection will be enabled.

• Click Copy

to copy the currently selected day’s schedule to other days of the week.

Select day of the week

Enter times when motion will be

enabled
