Getting Started

Camera

4 Click and drag on the image to add privacy masks. You can configure up to 4 privacy masks

per camera.

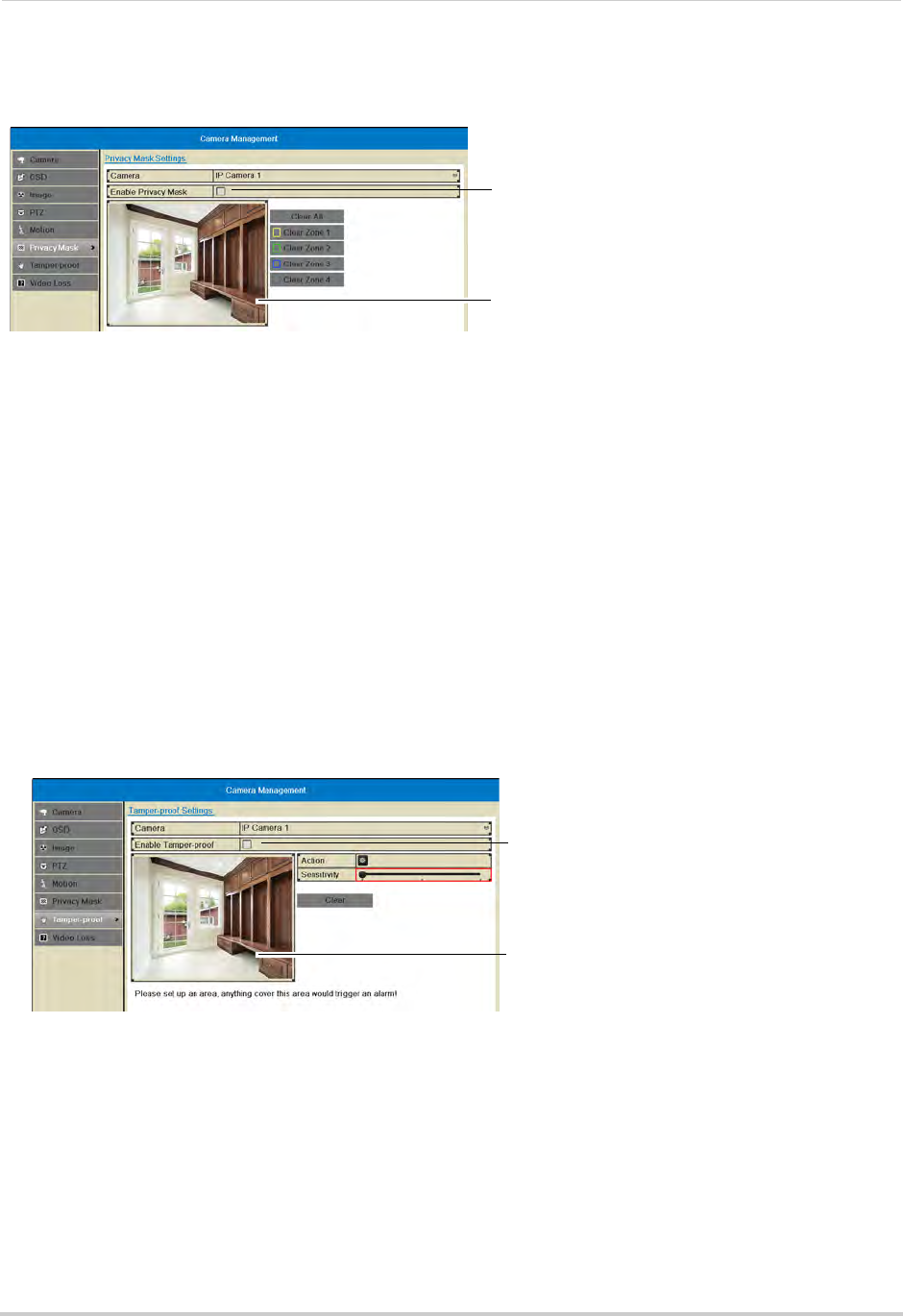

Check to enable privacy masks

Click and drag to add privacy mask areas

• Click the Clear buttons if you need to delete a privacy mask.

5 Click A

pply to save changes.

Tamper-proof

Configuring Tamper-proof Alarms

Tamper-proof alarms occur if an intruder attempts to tamper with the camera by covering

the lens.

To configure tamper-proof alarms

1 Right click and click Menu>Ca

mera>Tamper-proof.

2 Under Camera, select the camera you would like to configure.

3 Check Enab

le Tamper-proof to enable tamper-proof alarms or un-check to disable.

4 Use the Sensitivit

y slider to select the sensitivity for tamper-proof alarms.

Check to enable Tampering alarms

Click and drag to select tamper-proof area

5 Click and drag inside the image to select the area where you would like to detect video

tampering. It is recommended to place the area in the middle of the image.
