Getting Started

Setting up your NVR for Remote Connectivity

Accessing your NVR within a local network (LAN)

You can connect to your NVR on the local area network (LAN). It is recommended to

confirm connectivity over a local network before setting up your NVR for Internet

connectivity.

NOTE: To complete the steps below, your computer must be on the same network as your NVR.

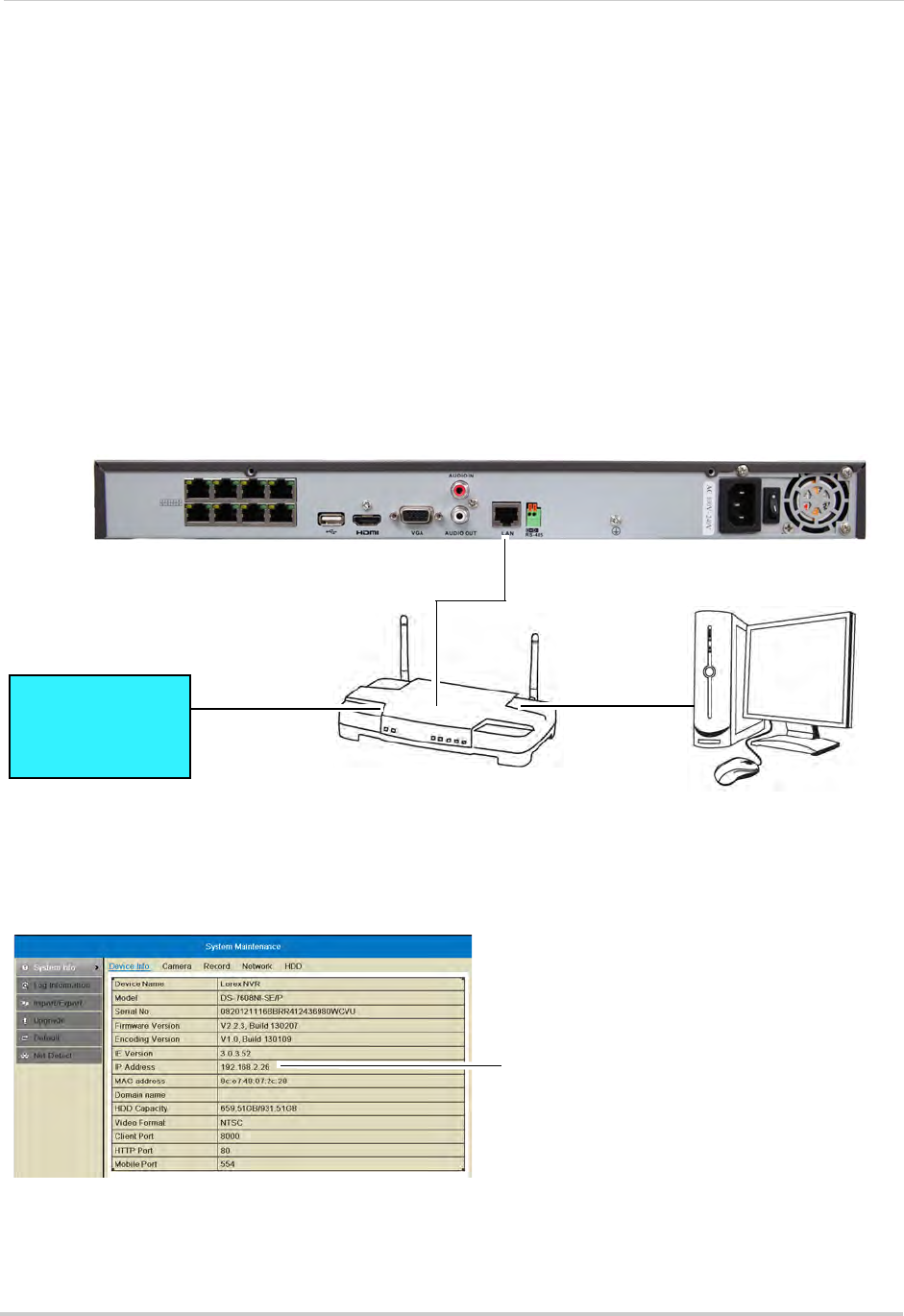

Step 1 of 3: Connect your NVR to the Local Area Network

1 Power off your NVR by turning the power switch to .

2 Connect an Ethernet cable (included) to the LAN

port on the rear panel of the NVR. Connect

the other end of the Ethernet cable to an empty LAN port (usually numbered 1~4) on your

router.

3 Turn the power switch to I t

o power the NVR back on.

ROUTER

(Not Included)

COMPUTER

(Not Included)

(not required for

local viewing)

INTERNET

Ethernet Cable (included)

8-channel model shown

Step 2 of 3: Obtain the NVR’s Local IP Address

1 Right-click and select Information to open the System Information window.

NVR IP address

2 Write down the IP Address.
