Getting Started

Setting up your NVR for Remote Connectivity

Step 1 of 4: Port Forwarding

You must port forward the HTTP, Client, and Mobile ports (default: 80, 8000, and 1025) on

your router to your NVR’s IP address before you can remotely connect to your system.

There are several methods to port forward your router:

• Use the Lore

x Easy Connect Auto Port Forwarding Wizard (PC only) to port forward the

required ports (see CD for details). For instructions on how to use the Easy Connect Wizard,

see the Easy Connect manual on the CD.

• Manually port forward the required ports on your router to your NVR’s IP address by

foll

owing your router manufacturer’s instructions. For more information on port

forwarding, see the reference guides on www.lorextechnology.com.

NOTE: If the abov

e ports are not forwarded on your router, you will not be able to access your

system remotely.

Step 2 of 4: Create a DDNS Account

Lorex offers a free DDNS service for use with your system. A DDNS account allows you to

set up a web site address that points back to your local network. This allows you to connect

to your system remotely. You must create a DDNS account in the same network as your

NVR.

To setup your free Lorex DDNS account:

1 In your browser, go to http://www

.lorexddns.net and click Step 1.

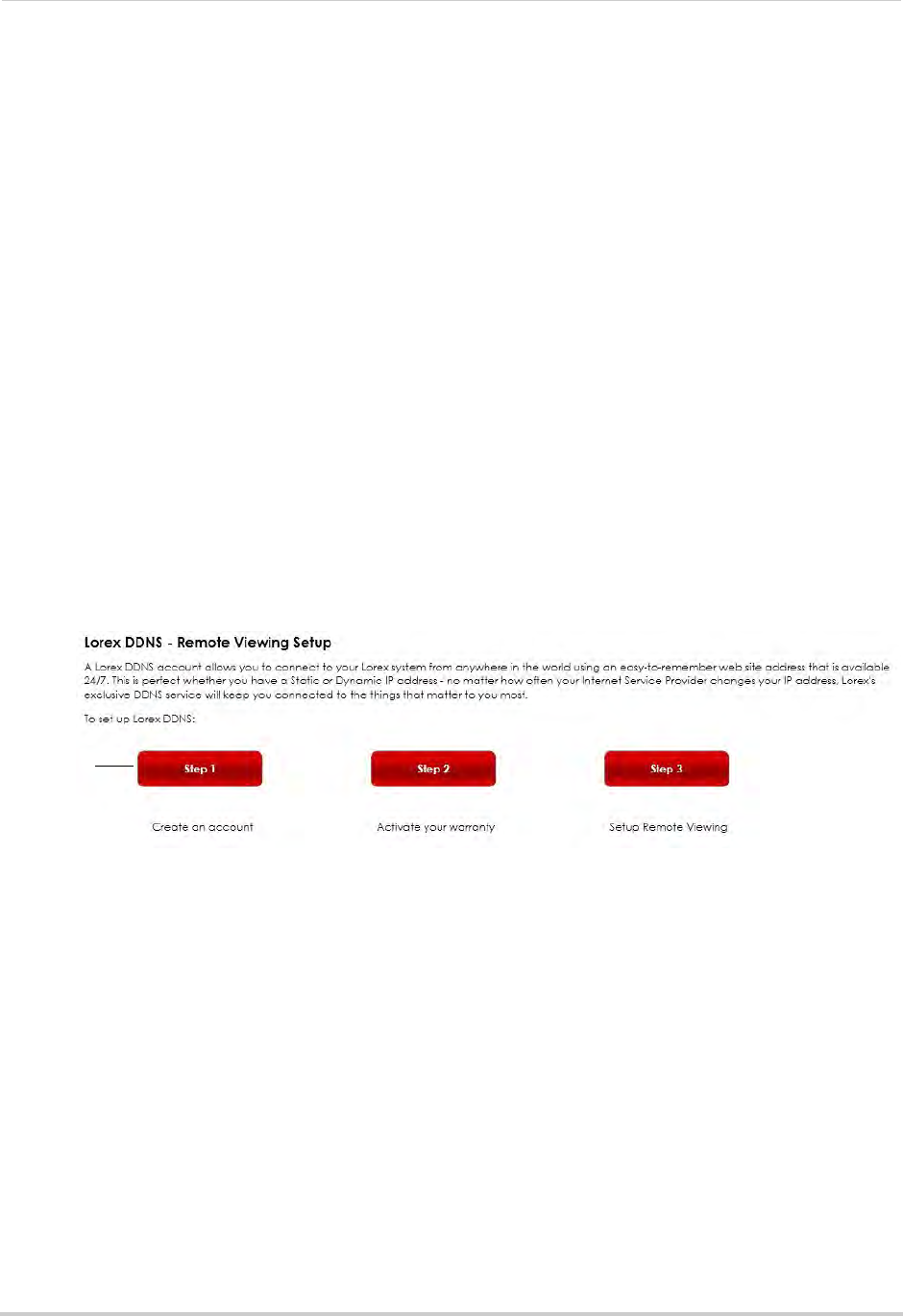

Click Step 1
