Mobile Apps: Accessing your DVR Using a Mobile Device
iPhone / iPad
Use the Lorex Mobile ECO application to connect to
your DVR on the iPhone or iPad.
NOTE: Re
solution is scaled up for the iPad screen.
System requirements
• iOS version 4.0 and above.
For the latest device compatibility list, visit www.lorextechnology.com
Prerequisites
• An iTunes account (requires valid credit card number).
NOTE: Y
our credit card will not be billed when downloading the Lorex Mobile Eco App.
Step 1 of 3: Downloading the App
1 Install Lorex Mobile ECO from the App Store.
NOTE: For support on downloading or installing iPhone/iPad apps, consult your iPhone/iPad
user’s manual or www.apple.com f
or support.

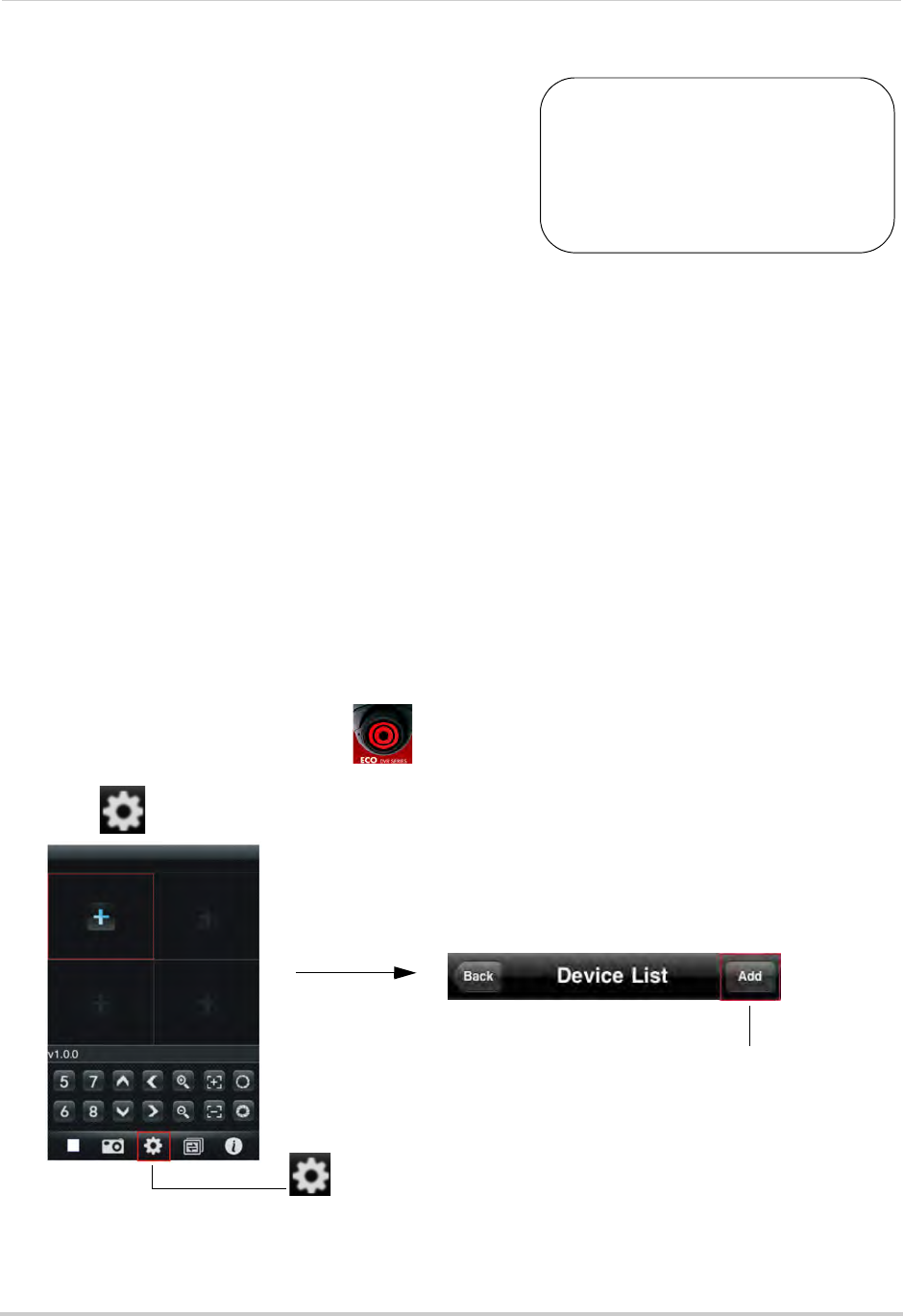

Step 2 of 3: Configuring Lorex Mobile ECO
1 Touch the Lorex Mobile ECO icon ( ).
2 T
ouch to open the Device List menu and then touch Add.
You must port forward the
mobile port (default: 1025) on
your router before you can
connect to your system using
a mobile device (e.g. iPhone,
iPad)
!
Add
